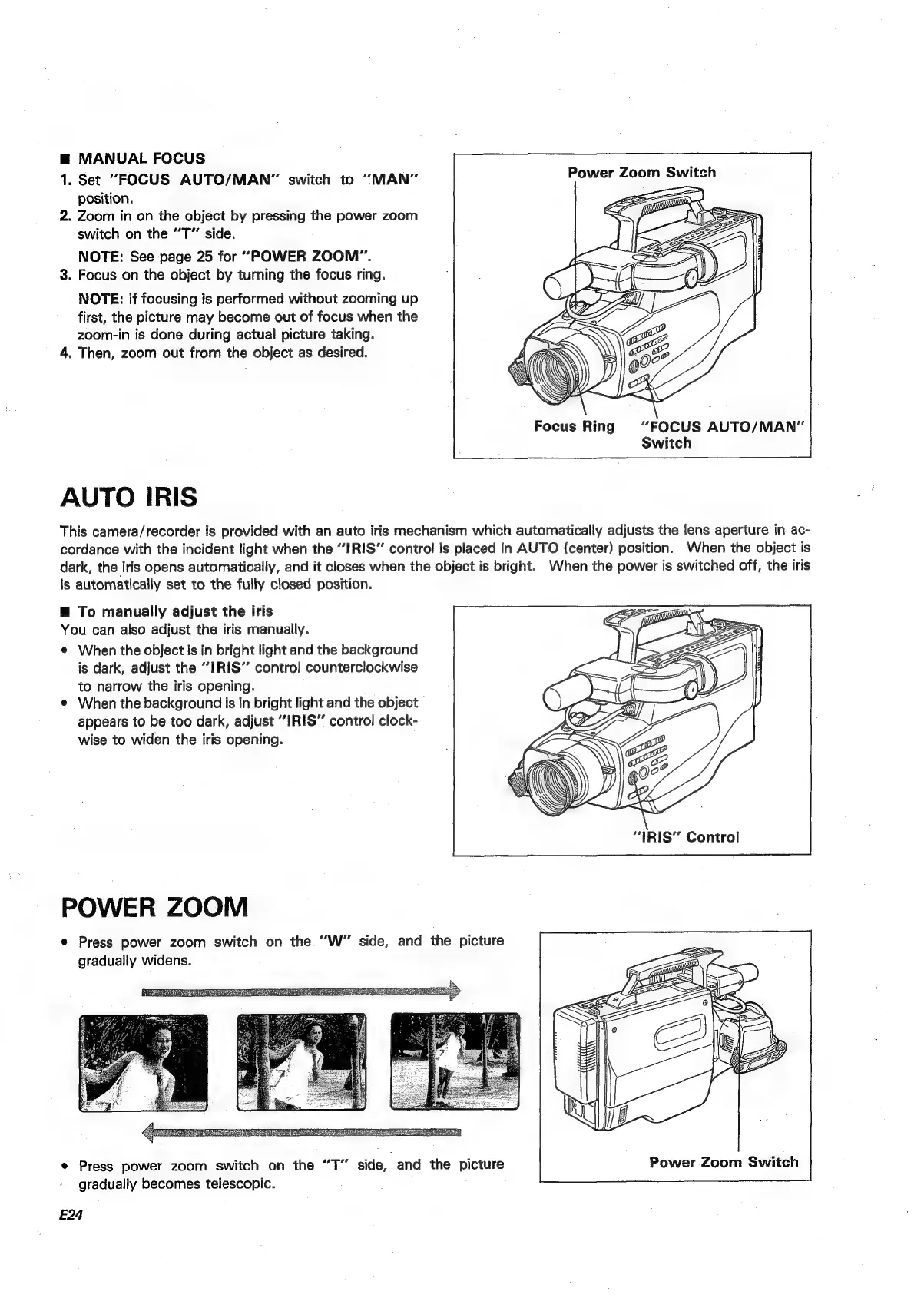

Hitachi VM-2300A User Manual

m@ MANUAL FOCUS :
1. Set “FOCUS AUTO/MAN” switch to “MAN” Power Zoom Switch
position.
2. Zoom in on the object by pressing the power zoom
switch on the “T” side.
NOTE: See page 25 for “POWER ZOOM”.
3. Focus on the object by turning the focus ring.
NOTE: if focusing is performed without zooming up
first, the picture may become out of focus when the
zoom-in is done during actual picture taking.
4. Then, zoom out from the object as desired.
Focus Ring “FOCUS AUTO/MAN”
Switch
AUTO IRIS
This camera/recorder is provided with an auto iris mechanism which automatically adjusts the lens aperture in ac-
cordance with the incident light when the “IRIS” control is placed in AUTO (center) position. When the object is
dark, the iris opens automatically, and it closes when the object is bright. When the power is switched off, the iris
is automatically set to the fully closed position.
@ To manually adjust the iris
You can also adjust the iris manually.
¢ When the object is in bright light and the background
is dark, adjust the “IRIS” contro! counterclockwise
to narrow the iris opening.
¢ When the background is in bright light and the object
appears to be too dark, adjust “IRIS” control clock-
wise to widen the iris opening.
“IRIS” Control
POWER ZOOM
¢ Press power zoom switch on the “W” side, and the picture
gradually widens.
®
Press
power
zoom
switch
on
the
“T”
side,
and
the
Power
Zoom
Switch
gradually becomes telescopic.
E24
