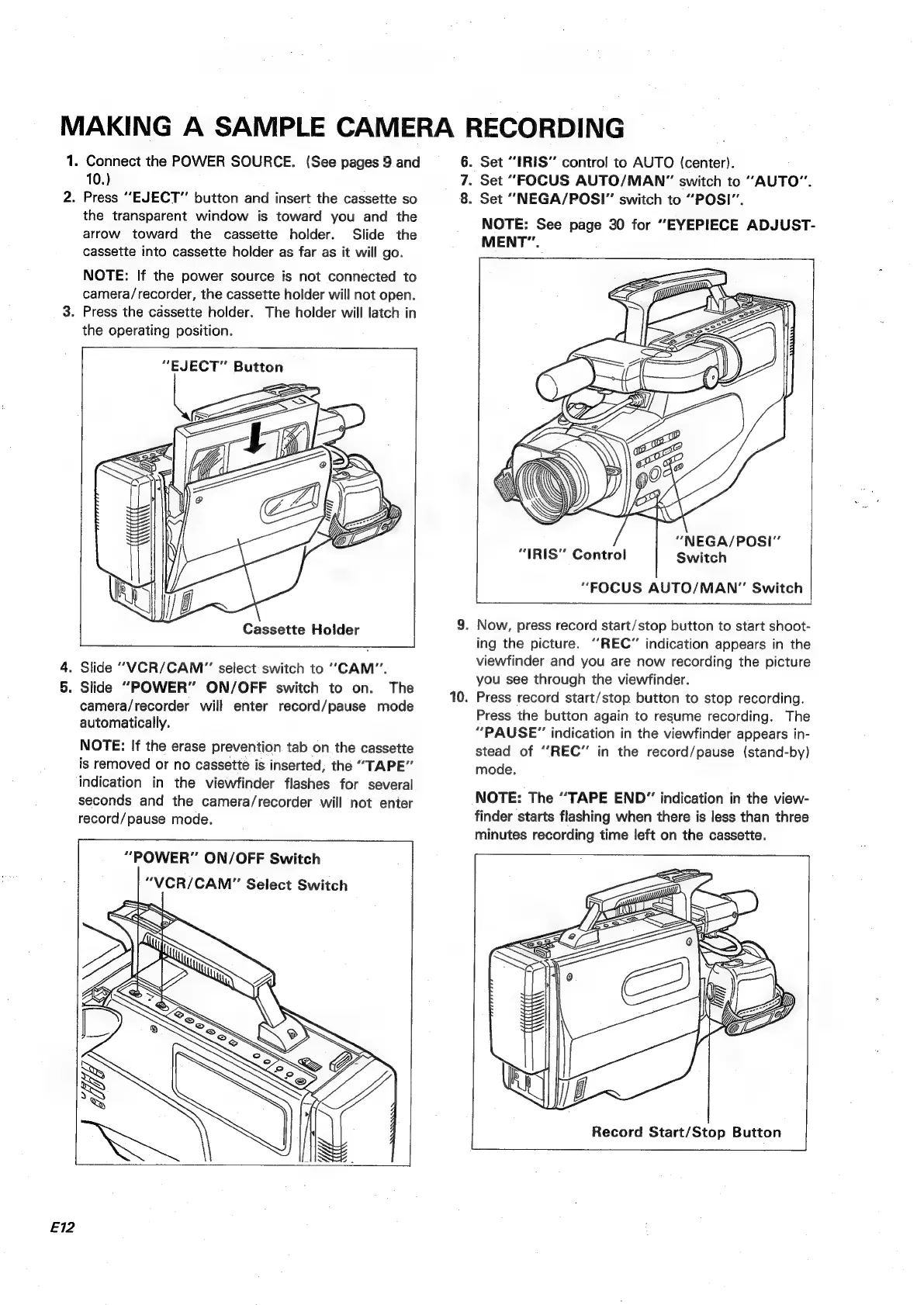

MAKING A SAMPLE CAMERA RECORDING
1. Connect the POWER SOURCE. (See pages 9 and
10.)
2. Press “EJECT” button and insert the cassette so
the transparent window is toward you and the
arrow toward the cassette holder. Slide the
cassette into cassette holder as far as it will go.
NOTE: If the power source is not connected to
camera/recorder, the cassette holder will not open.
. Press the cassette holder.
the operating position.
The holder will latch in
“EJECT” Button
Cassette Holder
. Slide “VCR/CAM"” select switch to “CAM”.
. Slide “POWER” ON/OFF switch to on.
The
camera/recorder will enter record/pause mode
automatically.
NOTE:
If
the
erase
prevention
tab
on
the
cassette
is
removed
or
no
cassette
is
inserted,
the
“TAPE”
indication
in
the
viewfinder
flashes
for
several
seconds
and
the
camera/recorder
will
not
enter
record/pause
mode.
; “POWER” ON/OFF Switch
“VCR/CAM” Select Switch
E12
6.
7.
8.
Set “IRIS” contro! to AUTO (center).
Set “FOCUS AUTO/MAN"” switch to “AUTO”.
Set “NEGA/POSI” switch to “POSI”.
NOTE: See page 30 for “EYEPIECE ADJUST-
MENT”.
“NEGA/POSI”
“IRIS”
Control
Switch
“FOCUS AUTO/MAN” Switch
. Now, press record start/stop button to start shoot-
ing the picture. ““REC” indication appears in the
viewfinder and you are now recording the picture
you see through the viewfinder.
. Press record start/stop button to stop recording.
Press the button again to resume recording. The
“PAUSE?” indication in the viewfinder appears in-
stead of “REC” in the record/pause (stand-by)
mode.
NOTE: The “TAPE END” indication in the view-
finder starts flashing when there is less than three
minutes recording time left on the cassette.
Record Start/Stop Button
