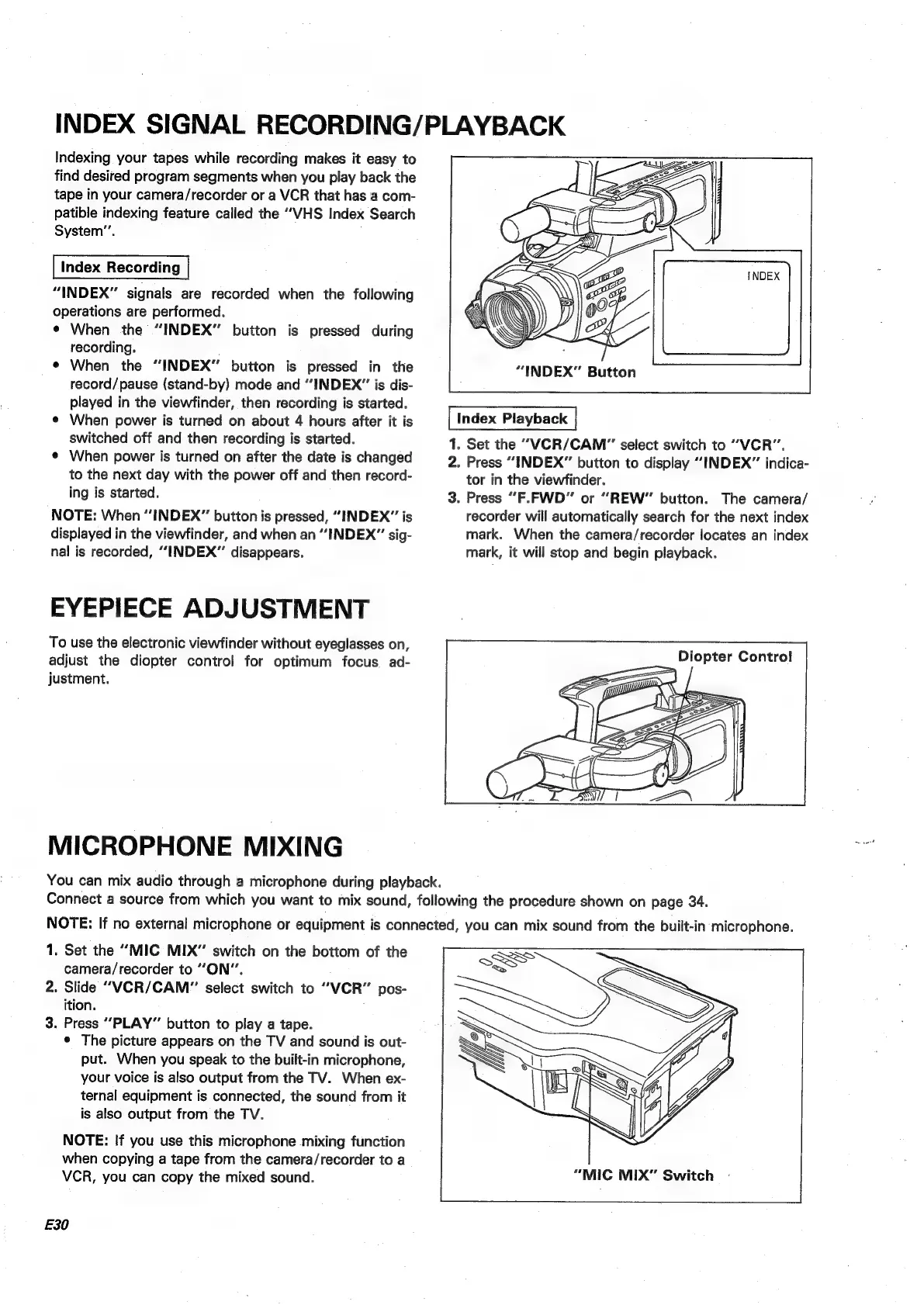

INDEX SIGNAL RECORDING/PLAYBACK
Indexing your tapes while recording makes it easy to
find desired program segments when you play back the
tape in your camera/recorder or a VCR that has a com-
patible indexing feature called the “VHS Index Search
System”.
Index Recording
“INDEX” signals are recorded when the following
operations are performed.
¢ When the “INDEX” button is pressed during
recording.
¢ When the “INDEX” button is pressed in the
record/pause (stand-by) mode and “INDEX” is dis-
played in the viewfinder, then recording is started.
¢ When power is turned on about 4 hours after it is
switched off and then recording is started.
¢ When power is turned on after the date is changed
to the next day with the power off and then record-
ing is started.
NOTE: When “INDEX” button is pressed, “INDEX” is
displayed in the viewfinder, and when an “INDEX” sig-
nal is recorded, “INDEX” disappears.
EYEPIECE ADJUSTMENT
To use the electronic viewfinder without eyeglasses on,
adjust the diopter control for optimum focus ad-
justment.
MICROPHONE MIXING
You can mix audio through a microphone during playback.
“INDEX” Button
Index Playback
N=
w
. Press “F.FWD” or ““REW” button.
. Set the “VCR/CAM"” select switch to “VCR”.
. Press “INDEX” button to display “INDEX” indica-
tor in the viewfinder.
The camera/
recorder will automatically search for the next index
mark. When the camera/recorder locates an index
mark, it will stop and begin playback.
Diopter Control
Connect
a
source
from
which
you
want
to
mix
sound,
following
the
procedure
shown
on
page
34,
NOTE:
If
no
external
microphone
or
equipment
is
connected,
you
can
mix
sound
from
the
built-in
microphone.
1. Set the “MIC MIX” switch on the bottom of the
camera/recorder to “ON”.
2. Slide “VCR/CAM” select switch to ““VCR” pos-
ition.
3. Press “PLAY” button to play a tape.
¢ The picture appears on the TV and sound is out-
put. When you speak to the built-in microphone,
your voice is also output from the TV. When ex-
ternal equipment is connected, the sound from it
is also output from the TV.
NOTE: !f you use this microphone mixing function
when copying a tape from the camera/recorder to a
VCR, you can copy the mixed sound.
E30
“MIC MIX” Switch
