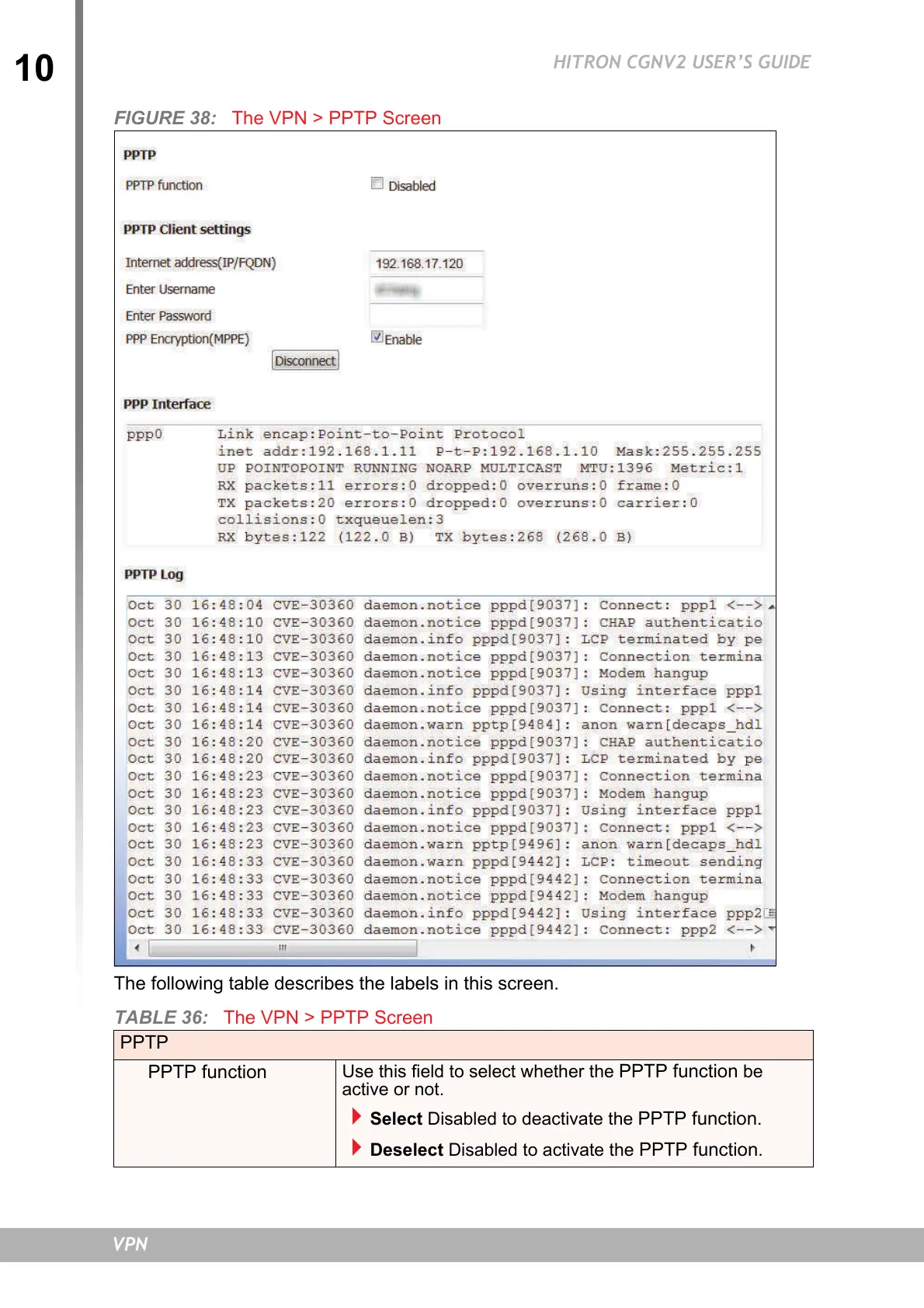

HITRON CGNV2 USER’S GUIDE
VPN
FIGURE 38:
The VPN > PPTP Screen
The following table describes the labels in this screen.
TABLE 36:
The VPN > PPTP Screen
PPTP
PPTP function
Use this field to select whether the
PPTP function
be
active or not.
Select
Disabled
to deactivate the
PPTP function
.
Deselect
Disabled to activate the
PPTP function
.
105
107
