Hobart Handler 140 Technical Manual

TM-258 267 Page 3Handler 140

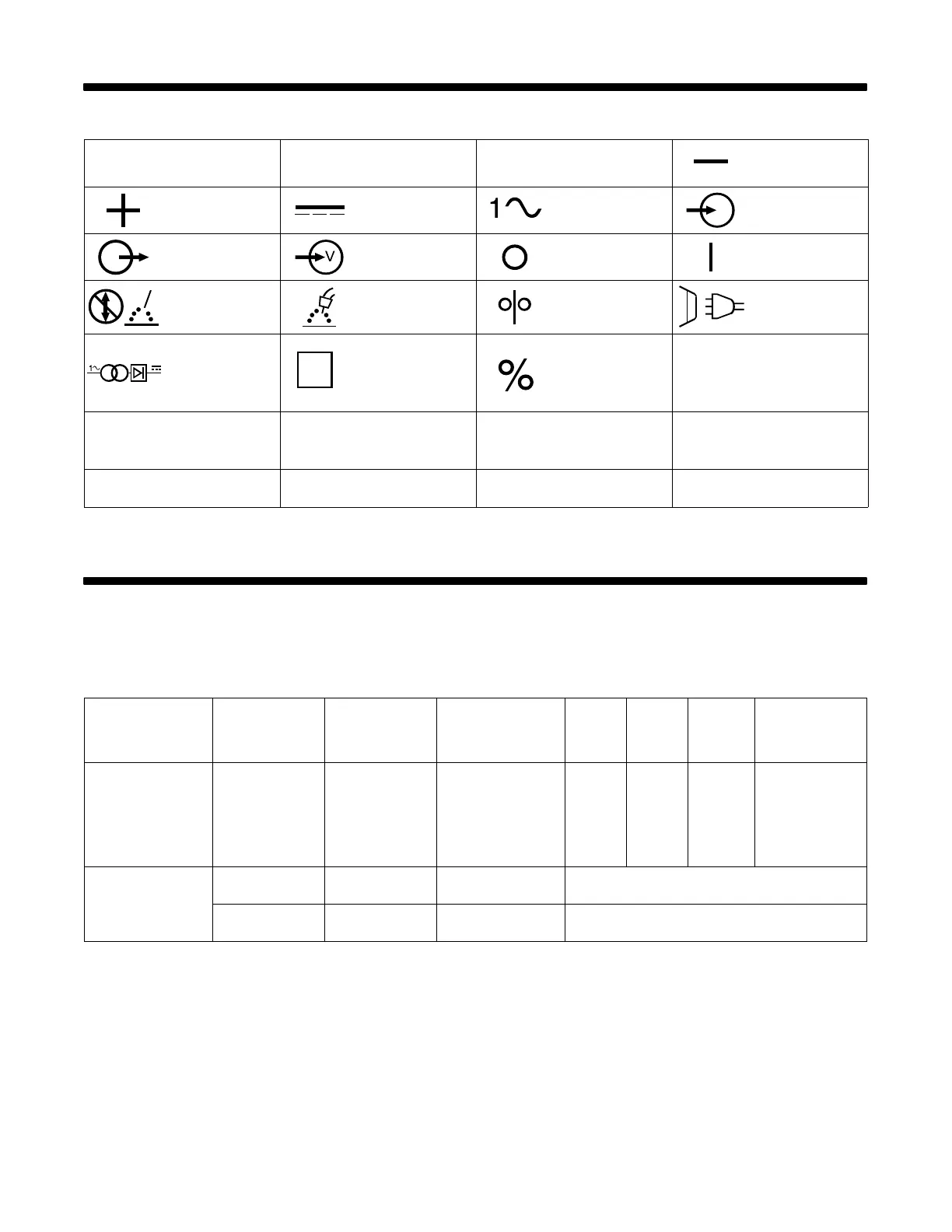

SECTION 2 − DEFINITIONS
2-1. Miscellaneous Symbols And Definitions
A
Amperage
V
Voltage
Hz
Hertz Negative
Positive
Direct Current
(DC)
Single Phase Input
Output Voltage Input Off On
Do Not Switch
While Welding
Gas Metal Arc
Welding (GMAW)
Wire Feed Line Connection
Single Phase
Transformer
Rectifier
S
Suitable For
Welding In An
Environment With
Increased Risk Of
Electric Shock
Percent
U
0
Rated No-Load
Voltage
U
1
Rated Supply
Voltage
U
2
Load Voltage
I
1
Rated Supply
Current
I
2
Rated Welding
Current
X
Duty Cycle
SECTION 3 − SPECIFICATIONS
3-1. Serial Number And Rating Label Location
The serial number and rating information for this product is located on back. Use rating label to determine input power requirements and/or rated output.
For future reference, write serial number in space provided on back cover of this manual.
3-2. Specifications
Rated Welding
Output
Amperage Range
Maximum Open-
Circuit Voltage
DC
Amperes Input at
Rated Load Output
115 V, 60 Hz, Single-
Phase
KVA KW
Weight
W/ Gun
Overall
Dimensions
90 A @ 18.5 Volts
DC, 20% Duty Cycle
25 − 140 28 20 2.90 2.50
57 lb
(26 kg)
Length: 19-1/2 in.
(495 mm)
Width: 10-5/8 in.
(270 mm)
Height: 12-3/8 in.
(314 mm)
Wire Type
And Diameter
Solid/
Stainless
Flux Cored Aluminum
Wire Feed Speed Range
.023 − .035 in.
(0.6 − 0.9 mm)
.030 − .035 in.
(0.8 − 0.9 mm)
.030 in.
(0.8 mm)
50 − 740 IPM (1.3 − 18.8 m/min) At No Load
40 − 700 IPM (1.0 − 17.8 m/min) Feeding Wire

Hobart Handler 140 Specifications

General

Input Voltage	115V
Welding Amperage Range	25-140 A
Duty Cycle	20% @ 90A
Wire Feed Speed Range	40-700 IPM
Weldable Materials	Mild Steel, Stainless Steel, Aluminum
Weight	57 lbs
Processes	MIG (GMAW), Flux-Cored (FCAW)
Input Current	20A
Welding Thickness	24 ga. - 1/4 in.
Input Phase	Single Phase
Maximum Open Circuit Voltage	28V
Wire Size Range	0.023 - 0.035 in
