Hologic DISCOVERY C - 3.1.2 Required Documentation

Discovery QDR Series Technical Manual
3-5

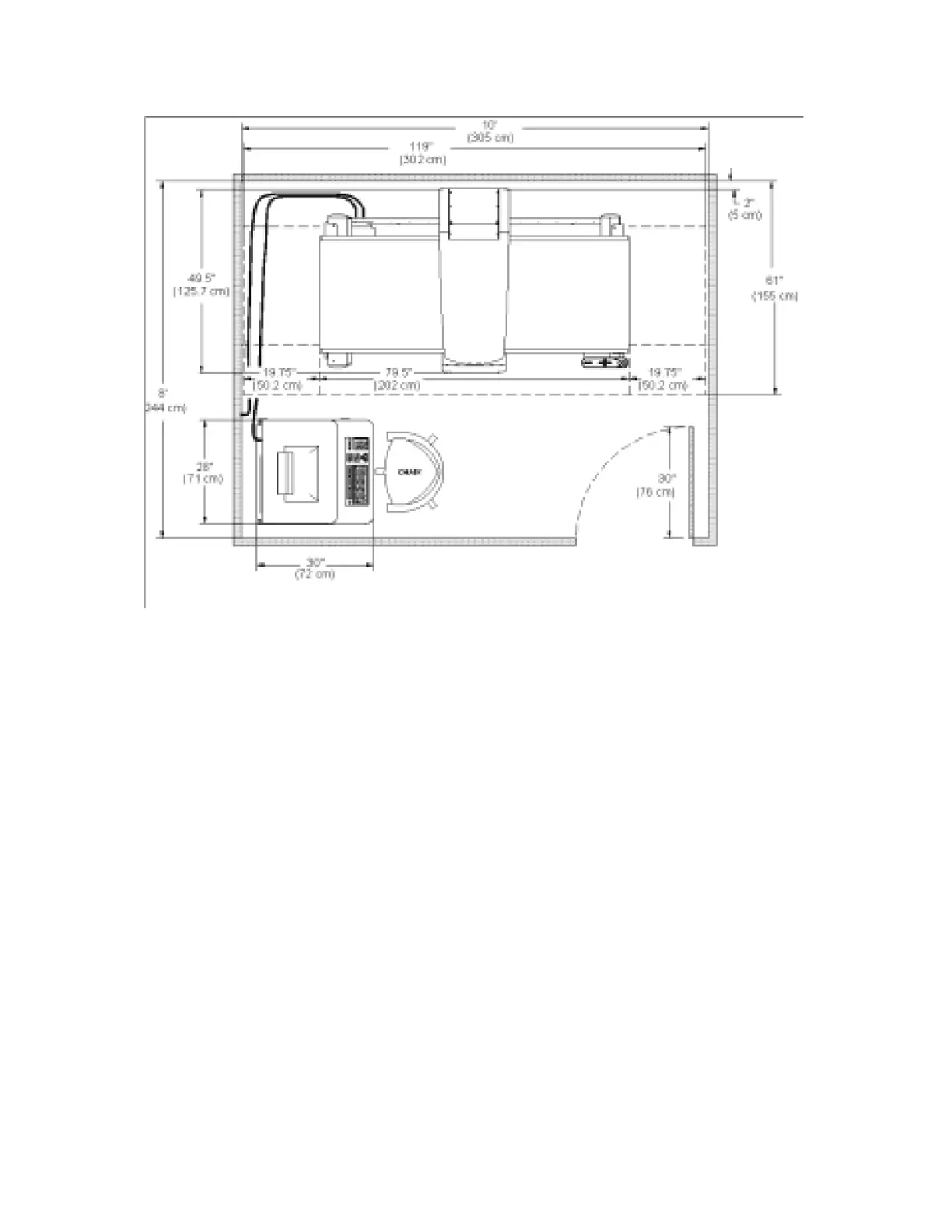

Figure 3-4. System Dimensions for Discovery-W
The Operator's Console may be up to 45ft (13.72m) away from the Scanner, but since
leakage and scatter radiation levels are extremely low, it can be safely located in the same
room with the Discovery itself.
