21. Starting with the “Check Tube kV Peak Potential” on page 3-28, perform all the
procedures in that section in order, with the exception of the Calibrate Motors
and Check Laser Positioning Offset procedures.
5.6.5 Arm R FRUS (A and SL only)
This section describes how to remove and replace the Arm R (Rotate) FRUs located on the
right side of the lower C-arm (see Figure 5-9 and Figure 5-8).
Before removing power from the Discovery, move the C-arm towards the middle-left side
of the table to allow working room. Use the Motor Control Pad. The Motor Control Pad
can be accessed from the Discovery main screen by choosing Utilities|Emergency
Motion.

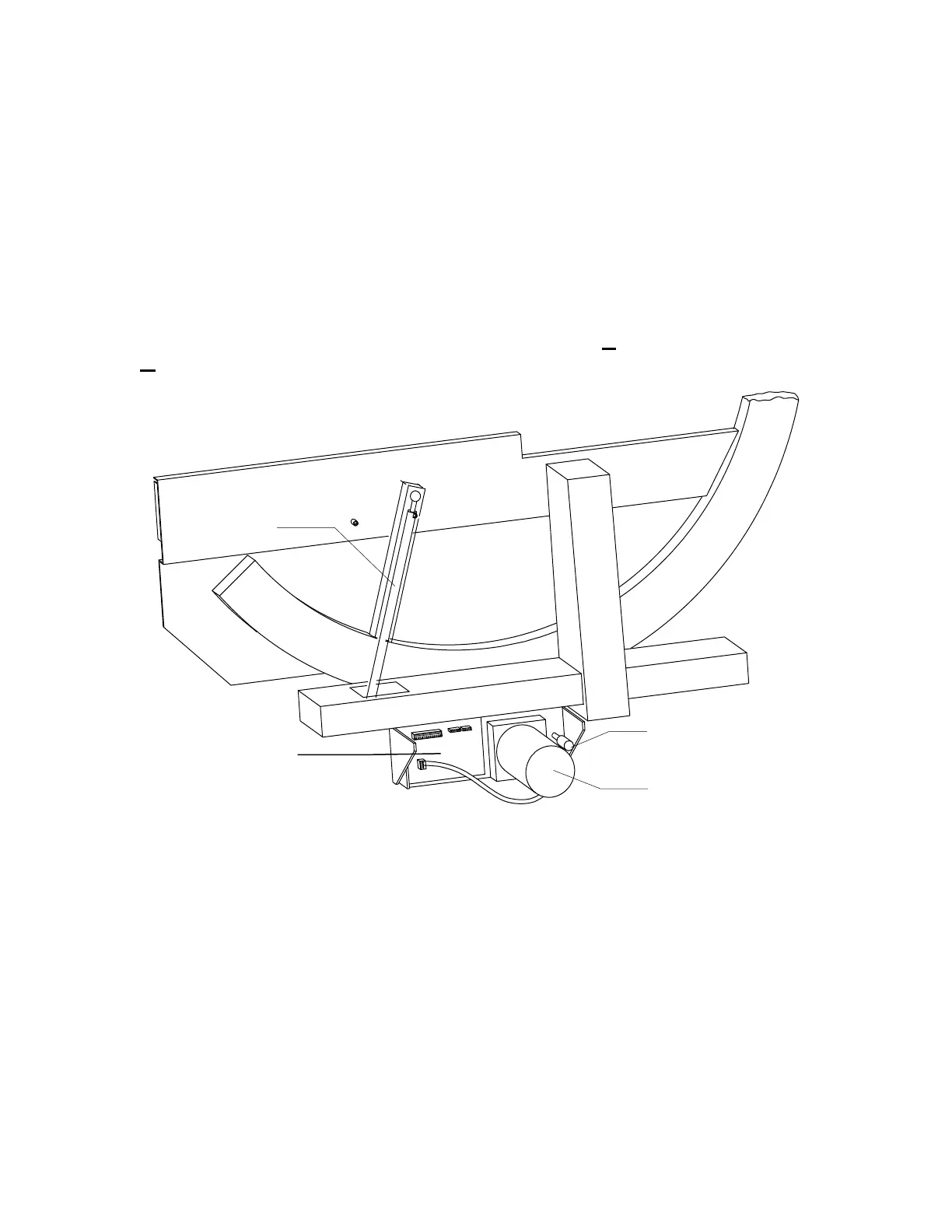

Figure 5-9. C-Arm R FRUs (Outside View)
