Honda BF60A - Fuses; Electric Starter will Not Operate; Battery will Not Charge

114
TAKING CARE OF UNEXPECTED PROBLEMS
FUSES
Electric Starter Will Not
Operate
The 10A, 15A, and 30A fuses protect
the electric starter relay and related
circuits.
The 10A (2) fuse protects the ignition
switch and related circuits. If this fuse
blows, the engine will not start or run,
and the power trim/tilt switch will not
activate the trim/tilt mechanism.
Battery Will Not Charge
A 40A ACG fuse protects the
alternator circuit. If the ACG fuse
blows, the engine will not charge the
battery. Refer to p. 116.
Fuse
No.
Rating Connected Components
40 A Alternator (regulator rectifier-battery charging)
(1) 10 A Fuel pump (high pressure side)
(2) 10 A Power trim/tilt relay, Main relay, Warning buzzer,
Indicator, Starter solenoid switch, each meters
(3) 15 A PGM-FI ECM, Fuel injectors, CKP sensor 1, 2
(4) 10 A Data link connector, HO2 sensor heater, Indicator cable
(5) 15 A PGM-FI ECM, Ignition coils
(6) 30 A Gathered fuse (No. 1, 3, 4, 5 Fuses)

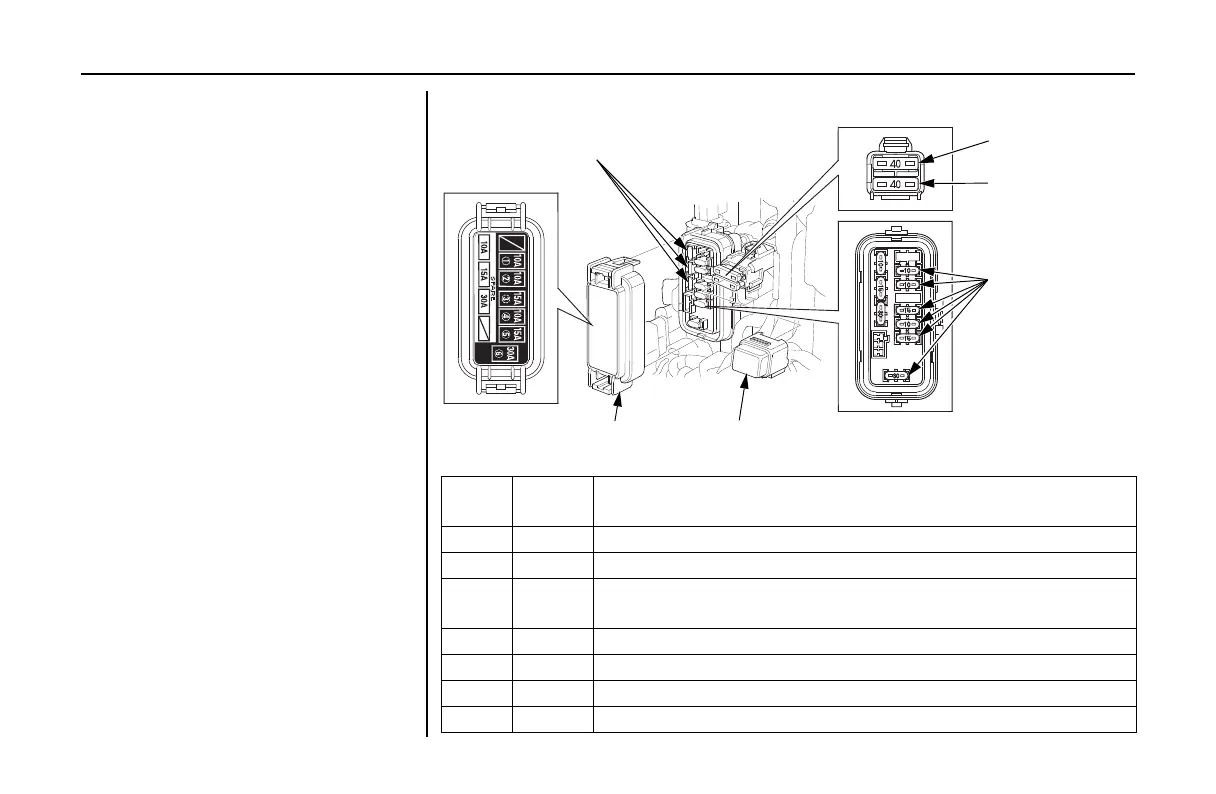

SPARE FUSES
(10 A, 15 A, 30 A)
SPARE ACG
FUSE (40 A)
FUSES
(10 A, 15 A, 30 A)
ACG FUSE CASE LID
FUSE CASE LID
ACG FUSE
(40 A)
