CONTROLS AND FEATURES

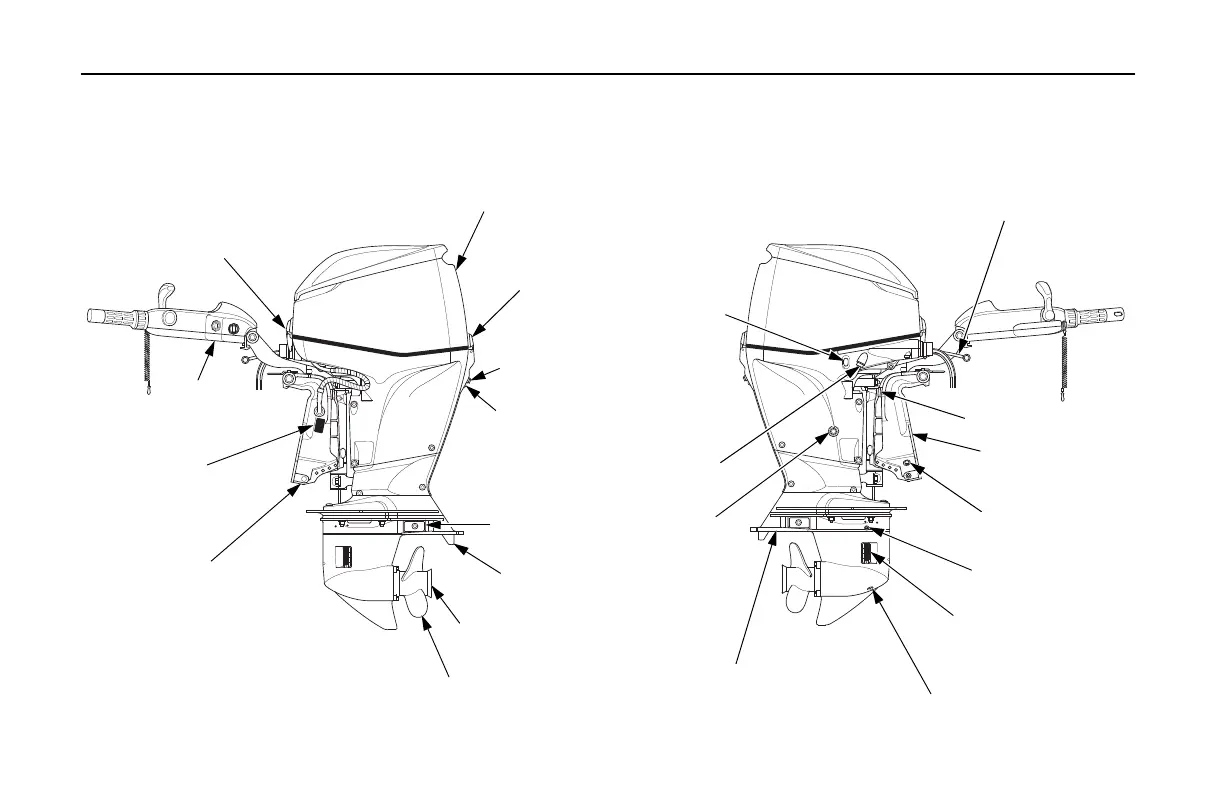

COMPONENT AND CONTROL LOCATIONS
LHT Type (tiller handle)
ENGINE COVER
FUEL HOSE
ENGINE COVER
LATCH (front)
TILLER
HANDLE
STERN
BRACKET
ANODE
PROPELLER
(optional equipment)
EXHAUST PORT/
WATER OUTLET PORT
TRIM TAB
ANODE
(each side)
COOLING SYSTEM
INDICATOR
IDLE PORT
ENGINE COVER
LATCH (rear)
TILT LOCK LEVER
PRODUCT
IDENTIFICATION
NUMBER
MANUAL
RELIEF VALVE
GEAR OIL
LEVEL SCREW
COOLING WATER
INTAKE PORT
(each side)
GEAR OIL DRAIN SCREW
ANTIVENTILATION
PLATE
ENGINE OIL
DRAIN BOLT
FLUSH PORT
CONNECTOR
POWER TILT
SWITCH
