BEFORE OPERATION
Tiller Handle Height/Angle
Adjustment (LHT type)

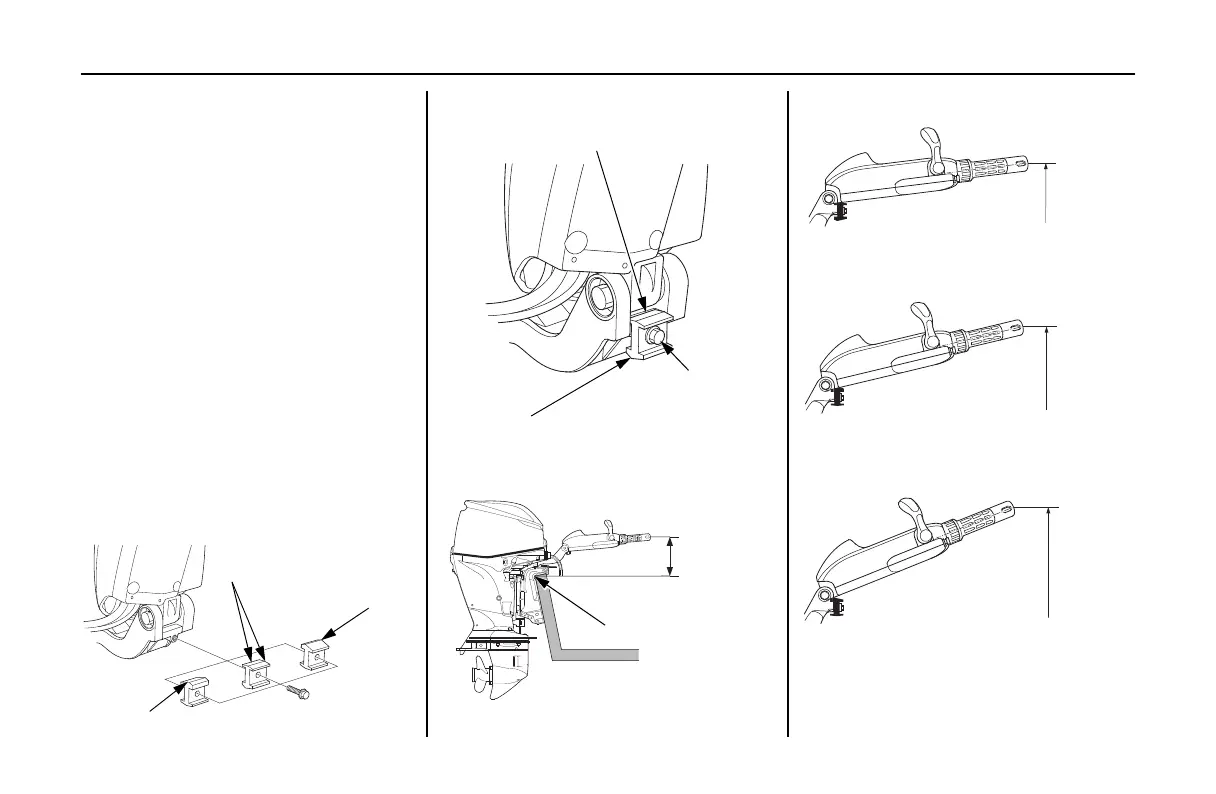

The tiller handle height and angle can
be adjusted to three positions by
changing the installation direction of
the height adjustment block. Select a
suitable height and angle for the
operator and secure the block.
1. Raise the tiller handle and remove
the 8 × 28 mm flange bolt and the
height adjustment block.
2. Pull down the tiller handle.
Determine the height adjustment
block installation direction and
secure the block with the 8 × 28
mm flange bolt.
HANDLE ANGLE: 7°
HANDLE ANGLE:
21°
HANDLE ANGLE: 13°
Install the height adjustment block
so that the selected angle of the
tiller handle is in this position.
HEIGHT ADJUSTMENT
BLOCK
8 × 28 mm
FLANGE BOLT
Reference point
HEIGHT
HANDLE ANGLE: 13°
HANDLE ANGLE: 7°
HANDLE ANGLE: 21°
11.5 in
(293 mm)
14.0 in
(355 mm)
17.0 in
(433 mm)
