22
CONTROLS AND FEATURES
CONTROLS
LHT Type (tiller handle)

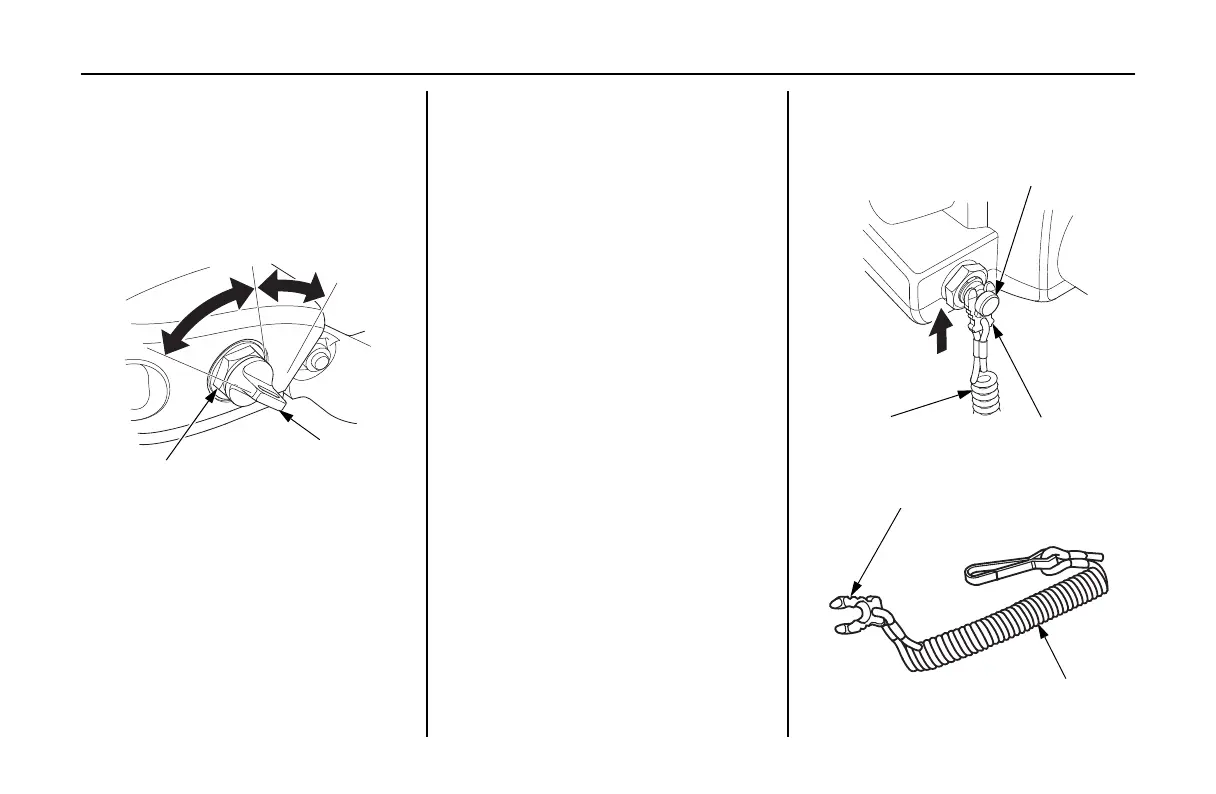

Ignition Switch
The ignition switch controls the
ignition system and the starter motor.
Turning the ignition switch key to the
START position operates the starter
motor. The key automatically returns
to the ON position when released
from the START position.
The engine will not start unless the
gearshift lever is in the N (neutral)
position (p. 53) and the emergency
stop switch clip is in the emergency
stop switch.
Turning the ignition switch to the
OFF position stops the engine.
Emergency Stop Switch Clip and
Emergency Stop Switch
ON
START
IGNITION SWITCH
IGNITION
SWITCH
KEY
OFF
EMERGENCY STOP SWITCH
EMERGENCY STOP SWITCH CLIP
EMERGENCY
STOP SWITCH
LANYARD
EMERGENCY STOP
SWITCH CLIP
EMERGENCY STOP
SWITCH LANYARD
