90
SERVICING YOUR OUTBOARD MOTOR

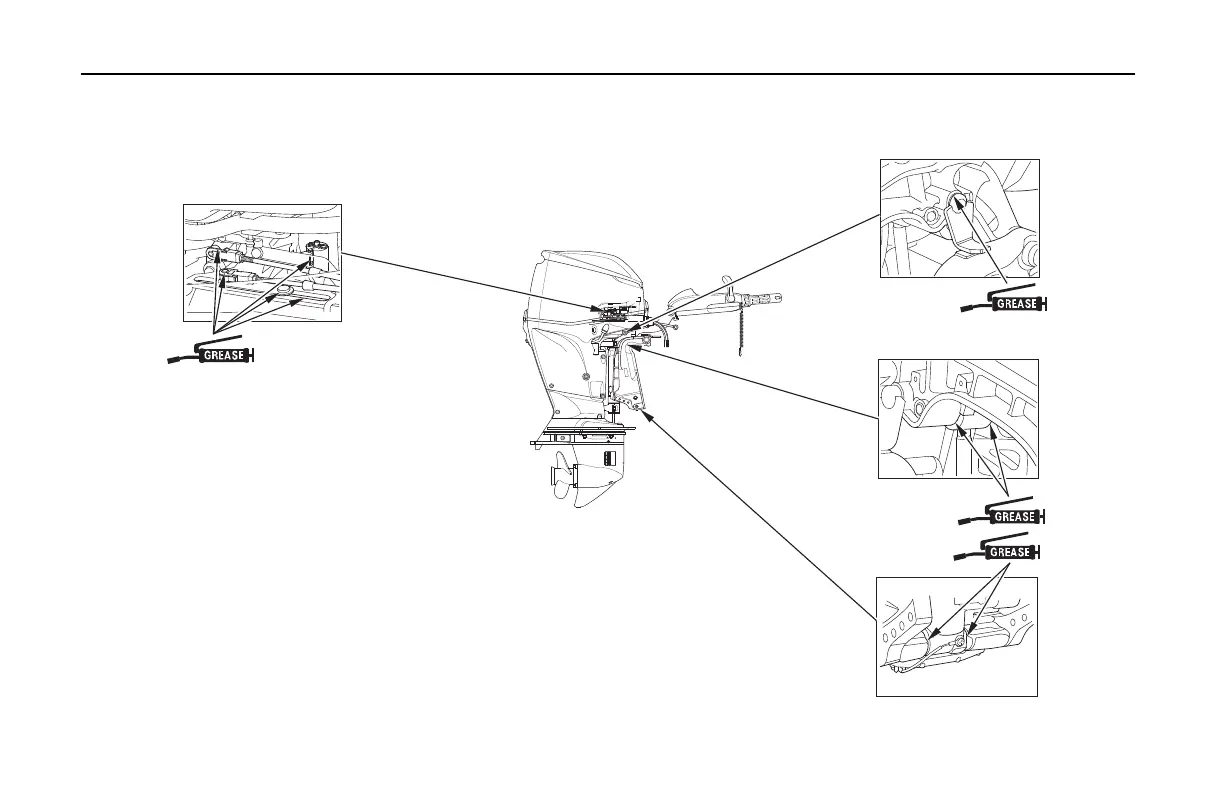

SHIFT LINK BRACKET/
SHIFT PIVOT/SHIFT
ARM/LINK PIN/PIVOT
PLATE/SLIDE PIVOT/
CLICK SPRING
ROLLER
TILT LOCK LEVER
(each side)
UPPER CYLINDER
PIN/BUSHING
LOWER CYLINDER
BUSHING/COLLAR
