TAKING CARE OF UNEXPECTED PROBLEMS
BATTERY WILL NOT
CHARGE AND ELECTRIC
STARTER WILL NOT
OPERATE
The battery-charging circuit and the
electric starter relay circuit are
protected by the 20-ampere fuse. If
the fuse burns out, the engine will not
charge the battery, and the electric
starter will not operate. The engine
can be started using the recoil starter
or the emergency starter rope.
The ignition switch is protected by
the 20-ampere fuse. If the fuse burns
out, the engine will not start or run,
and the power tilt switch will not
operate.
Fuse Replacement
1. With the engine stopped, remove
the engine cover.
2. Remove the fuse case lid.
3. Remove and inspect the fuse. If
burnt out, install a replacement fuse
of the specified rating. The
outboard motor only comes with
one spare fuse in the fuse holder.
DESIGNATED FUSE RATING:
20A
Never use a fuse with a rating
greater than specified. Serious
damage to the electrical system
could result.
4. Reinstall the fuse case lid and the
engine cover.
Before further operation, try to
determine and correct the electrical
problem that caused the fuse to burn
out. An uncorrected electrical
problem may cause the fuse to burn
out again.

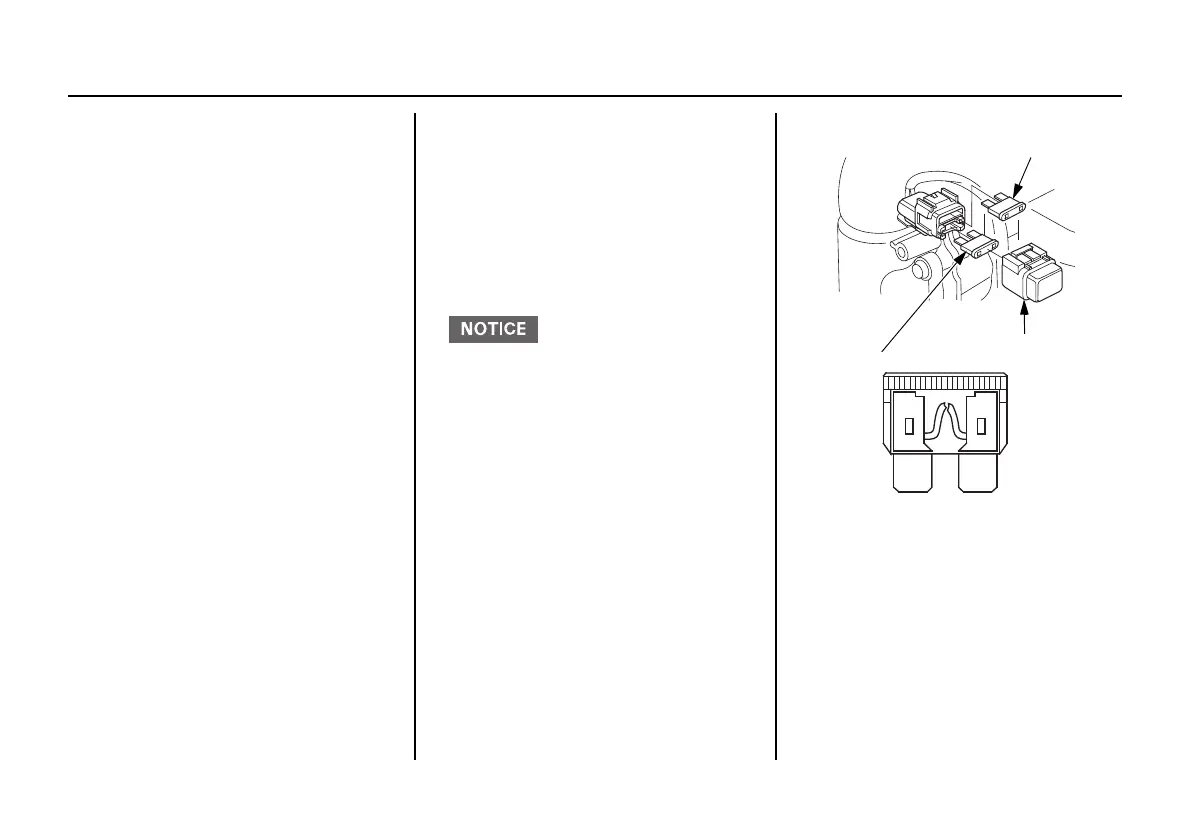

BLOWN FUSE
20A FUSE
SPARE 20A FUSE
FUSE CASE LID
