Honda BFP8D - Tilt Lever (Manual Tilt Type)

31
CONTROLS AND FEATURES
(manual tilt/XH and R types) (G and T types)

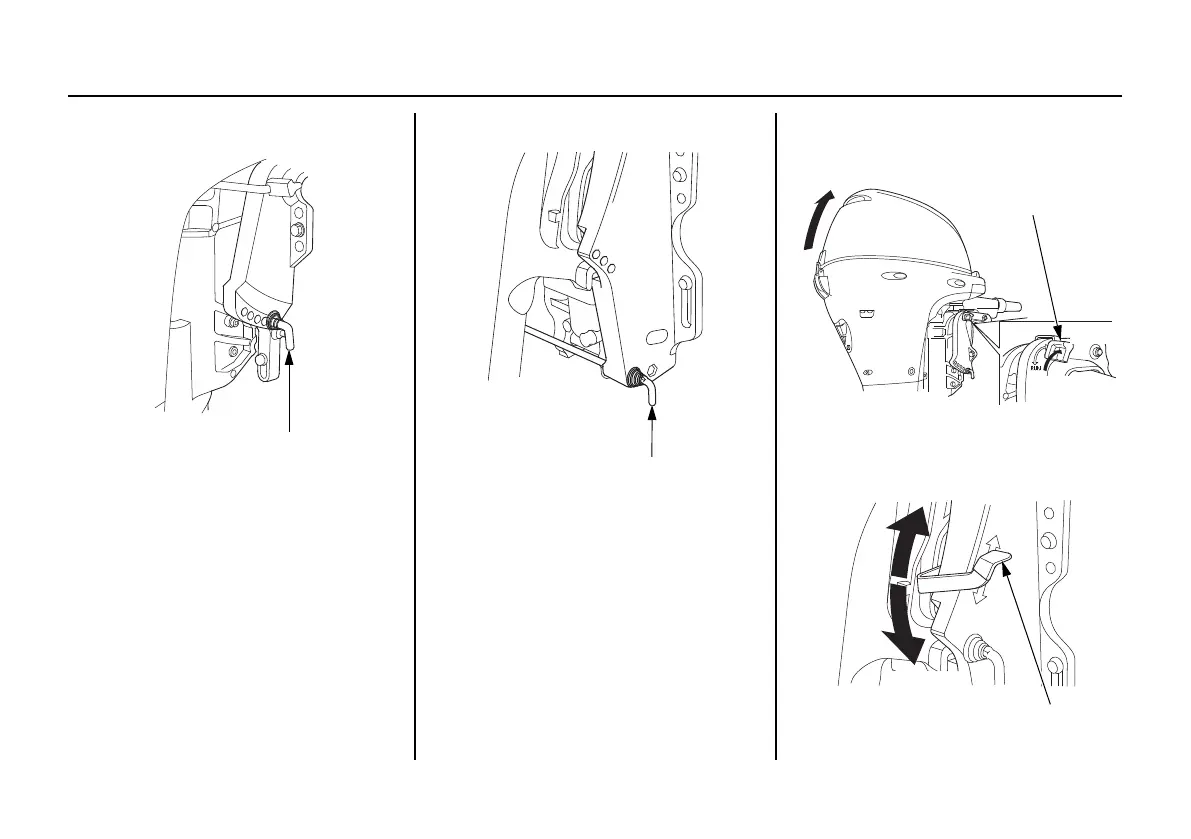

There are four transom angle
adjustment positions. Three are
controlled by the adjusting rod and
the fourth is controlled by the stern
bracket. In order to use the fourth
position, remove the adjusting rod
and store it in the storage location;
then lower the outboard motor down
to the stern bracket stop position.
Tilt Lever
(manual tilt type)
ADJUSTING ROD
ADJUSTING ROD
(storage location)
TILT LEVER
TILT
RUN
(LOCK)
(G type)
TILT
RUN
(LOCK)
TILT LEVER
