CONTROLS AND FEATURES

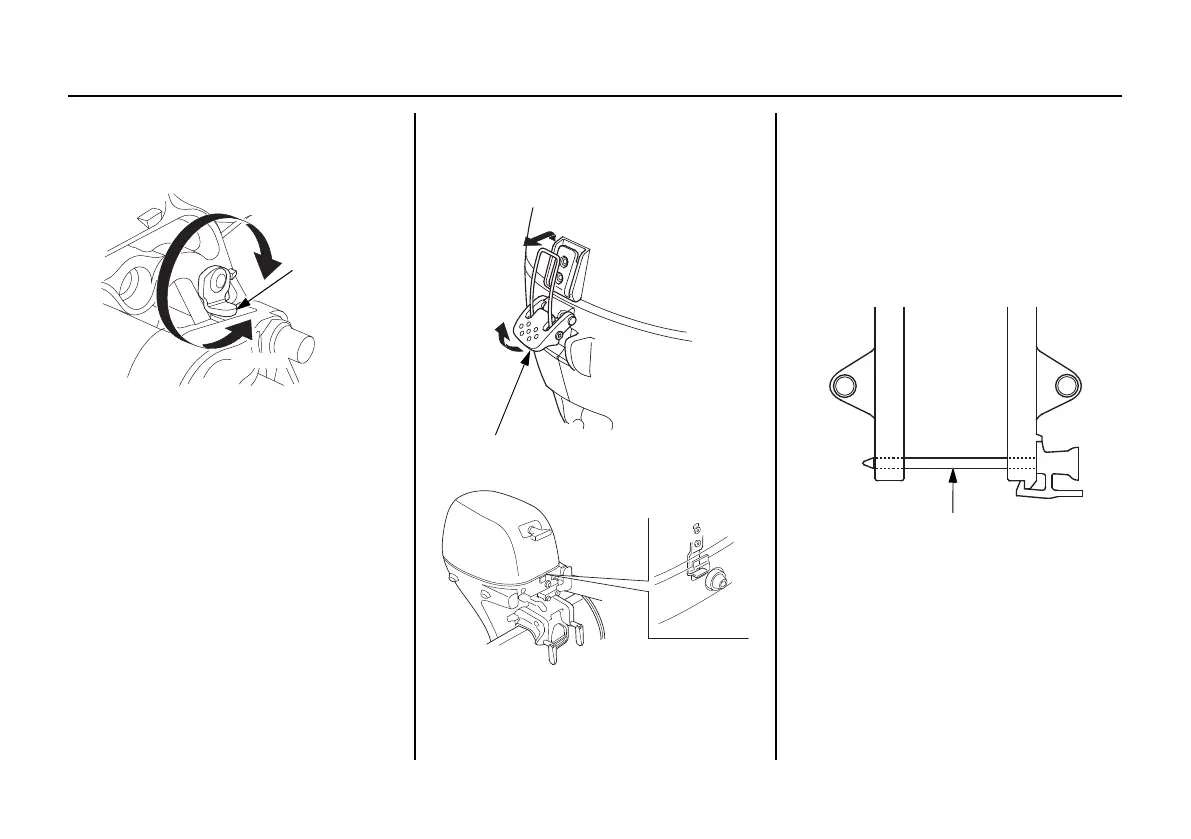

Tilt Lock Lever
(G and T types)
The tilt lock lever is used to support
the outboard motor in the fully-raised
position.
When the boat is to be moored for a
long time, tilt the outboard motor up
as far as it will go. Then move the tilt
lock lever to the LOCK position, and
gently lower the outboard motor until
the lever contacts the stern bracket.
Common Controls
Engine Cover Latch
The engine cover latch fastens the
engine cover to the outboard motor.
Transom Angle Adjusting Rod
The transom angle adjusting rod
limits the tilt angle of the outboard
motor when fully lowered.
(manual tilt/SH and LH types)
