CONTROLS AND FEATURES
Power Tilt Switch (T type)
The rocker type power tilt switch is
located on the control lever and has
UP and DN (down) positions for
changing the angle of the outboard
motor.
Power tilt is a convenience for
tilting the outboard motor, shallow
water operation, and trailering
only. It is not designed to be used as
a trim function to adjust the trim
angle of the boat.
During shallow water operation,
beaching, launching, or mooring,
proceed at low speed with a small
throttle opening and tilt the outboard
motor up as necessary (p. 65).
Manual Relief Valve (T type)
: Do not turn this screw. If this
screw is turned hydraulic oil will
bleed out of the power tilt
system. Should this happen it
will be necessary to consult your
authorized Honda Marine dealer
and have the system refilled.
The outboard motor can be tilted
manually after opening the manual
relief valve. This allows the outboard
motor to be tilted up or down when
no battery is connected.
Press DN to tilt
the outboard
motor down.

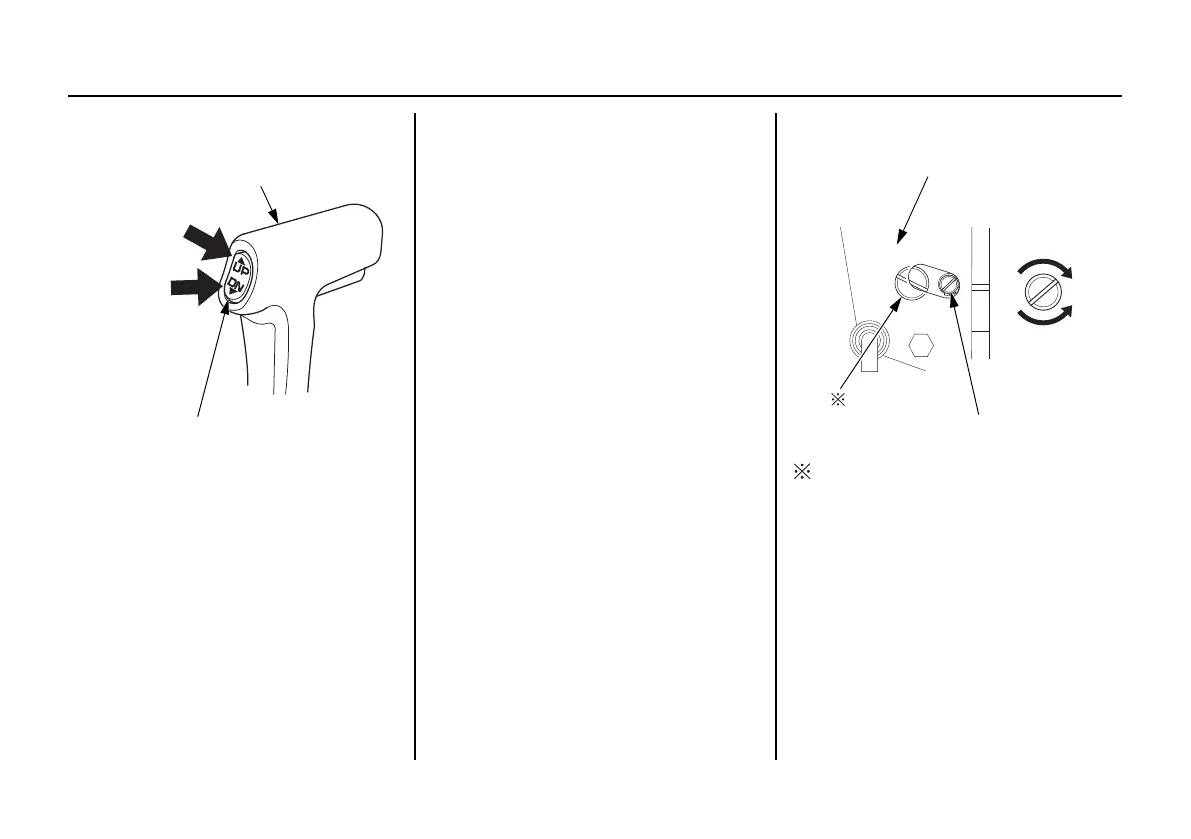

POWER TILT SWITCH
RIGHT STERN BRACKET
POWER
(Valve closed
to fix)
MANUAL
(Valve open
to release)
MANUAL RELIEF VALVE
CONTROL LEVER
Press UP to tilt
the outboard
motor up.
