INSTALLATION

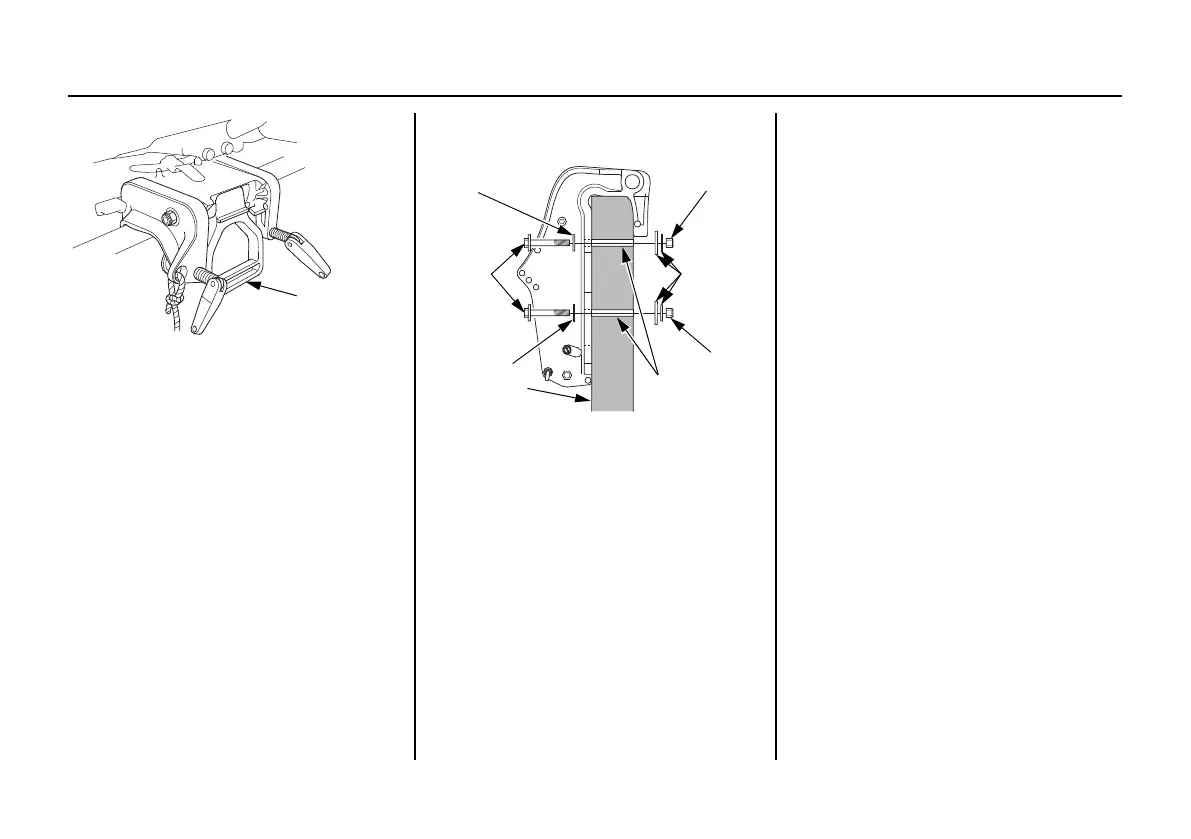

Attach the stern bracket to the
transom and tighten the clamp screws.
Push the carrying handle into the
storage position.
Attach a rope from the boat to the
hole in the stern bracket. This will
help to prevent accidental loss of the
outboard motor.
You may further secure the outboard
motor by bolting the stern bracket to
the boat transom. Use the optional
mounting bolt and nut kit or other
good quality stainless steel bolts,
nuts, and washers. Apply silicone
sealant to the bolt holes.
(types without clamp screws)
Attach the stern bracket to the boat
transom with good quality stainless
steel bolts, nuts, and washers. Apply
silicone sealant to the bolts holes.
TRANSOM ANGLE
ADJUSTMENT
Use the transom angle adjustment rod
(p. 46) to adjust the angle of the
outboard motor so the propeller is
perpendicular to the surface of the
water.
CARRYING
HANDLE
(Storage position)
WA SH ER
BOLTS
WA SH ER
TRANSOM
BOARD
LOCK NUT
WA SH ER
LOCK NUT
MOUNTING
HOLE
