CONTROLS AND FEATURES

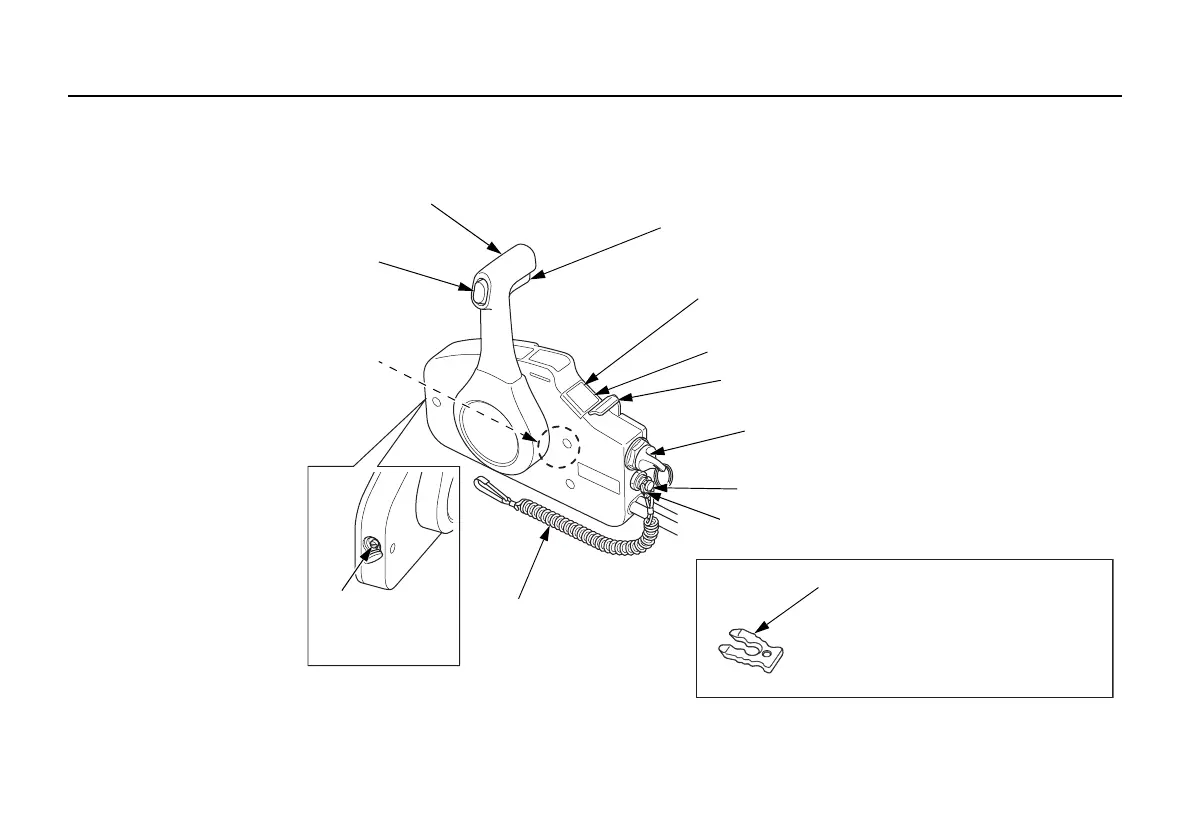

Remote Control box (standard or optionally applicable equipment)

GEARSHIFT/THROTTLE CONTROL LEVER

POWER TILT SWITCH

(T type)

REMOTE

CONTROL

FRICTION

ADJUSTER

EMERGENCY

STOP SWITCH

LANYARD

EMERGENCY STOP SWITCH CLIP

EMERGENCY STOP SWITCH

BUZZER

(inside box)

FAST IDLE LEVER

OVERHEAT INDICATOR

OIL PRESSURE INDICATOR

NEUTRAL RELEASE LEVER

IGNITION SWITCH

SPARE EMERGENCY STOP SWITCH CLIP

Store the spare emergency stop switch

clip in the tool bag.
