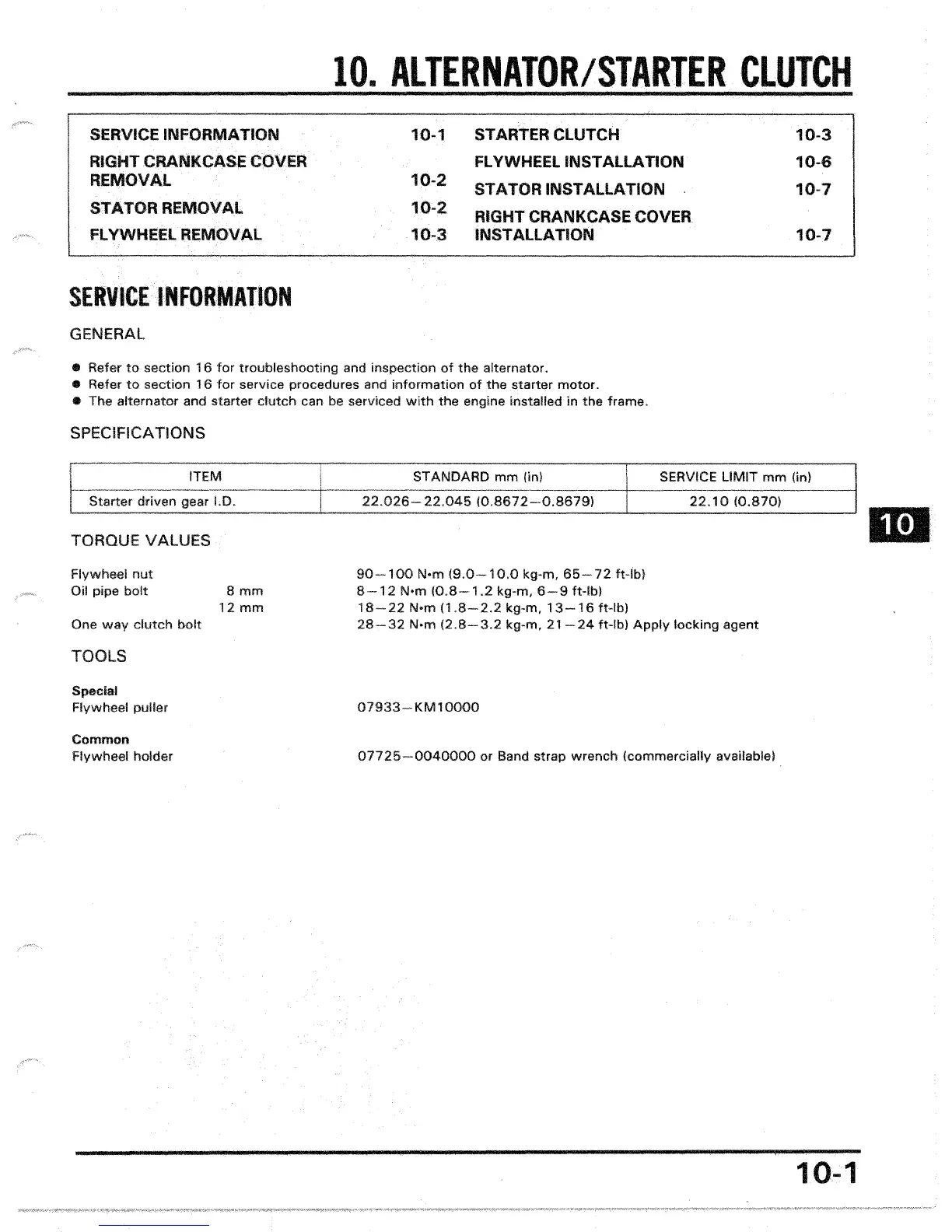

10. ALTERNATORISTARJERCLUTCH
SERVICE INFORMATION
RIGHT CRANKCASe COVER
REMOVAL
STATOR REMOVAL
Fl VWHEEl REMOVAL
SERVICE·'NFORMATION
GENERAL
10-1
10-2
10-2
10-3
STARTER CLUTCH
FL YWHEELINSTAlLATION
STATOR INSTALLATION
RIGHT CRANKCASE COVER
INSTALLATION
10-3
10-6
10-7
10-7
• Refer to section 16 for troubleshooting and inspection of the alternator.
• Refer
to section 16 for service procedures and information of the starter motor.
• The alternator and starter clutch can be serviced with the engine installed in the frame.
SPECIFICATIONS
TORQUE VALUES
Flywheel nut
Oil pipe bolt 8 mm
12 mm
One way clutch bolt
TOOLS
Special
Flywheel puller
Common
Flywheel holder
90-100 N'm (9.0-10.0 kg-m, 65-72 ft-Ibl
8-12 N'm (0.8-1.2 kg-m, 6-9 ft-Ib)
18-22 N'm (1.8-2.2 kg-m. 13-16 ft-Ib)
28-32 N'm (2.8-3.2 kg-m, 21-24 ft-Ib) Apply locking agent
07933--KM 1 0000
07725-0040000 or Band strap wrench (commercially available)
10-1

Honda CH250 Elite 1986 Specifications

General

Engine Type	Single-cylinder, four-stroke
Displacement	244 cc
Bore x Stroke	72.0 mm x 60.0 mm
Compression Ratio	10.0:1
Fuel System	Carburetor
Ignition	CDI
Starting System	Electric
Transmission	Automatic
Final Drive	V-Belt
Front Suspension	Telescopic fork
Rear Brake	Drum
Front Tire	3.50-10
Seat Height	760 mm
Cooling System	Liquid-cooled
