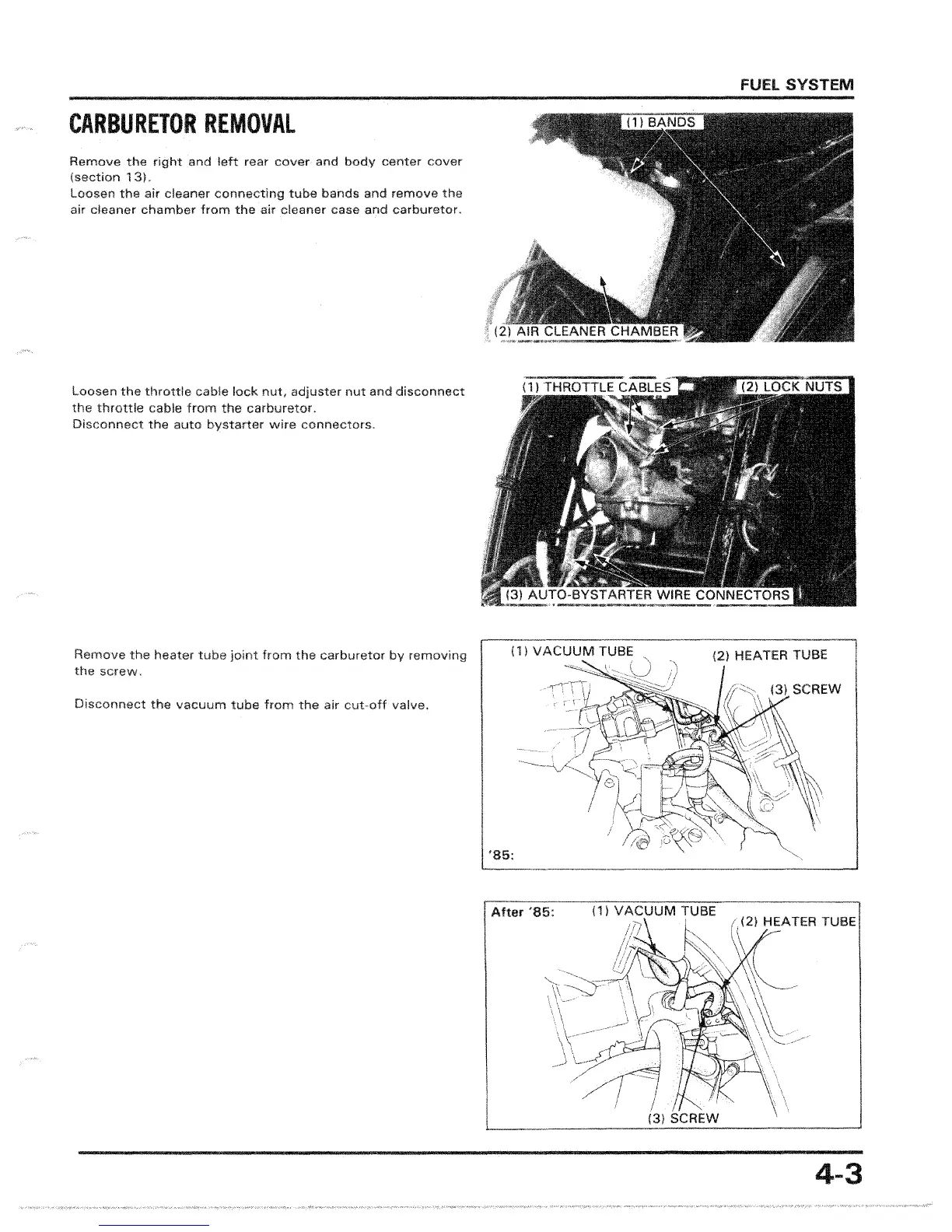

CARBURETOR
REMOVAL
Remove
the
right
and
left
rear
cover
and
body
center
cover
(section
1
3)
Loosen
the
air
cleaner
connecting
tube
bands
and
remove
the
air cleaner
chamber
from
the
air
case
and
carburetor.
Loosen
the
throttle
cable
lock
nut,
adjuster
nut
and
disconnect
the
throttle
cable
from
the
carburetor.
Disconnect
the
auto
wire
connectors.
Remove
the
heater
tube
joint
from
the
carburetor
by
rerno'vin,q
the
screw.
Disconnect
the
vacuum
tube
from
the
air
cut-off
valve.
FUEL SYSTEM
I
VACUUM
TUBE
'85:
(1)
VACUUM
TUBE
(i121
HEATER TUBE
4-3
