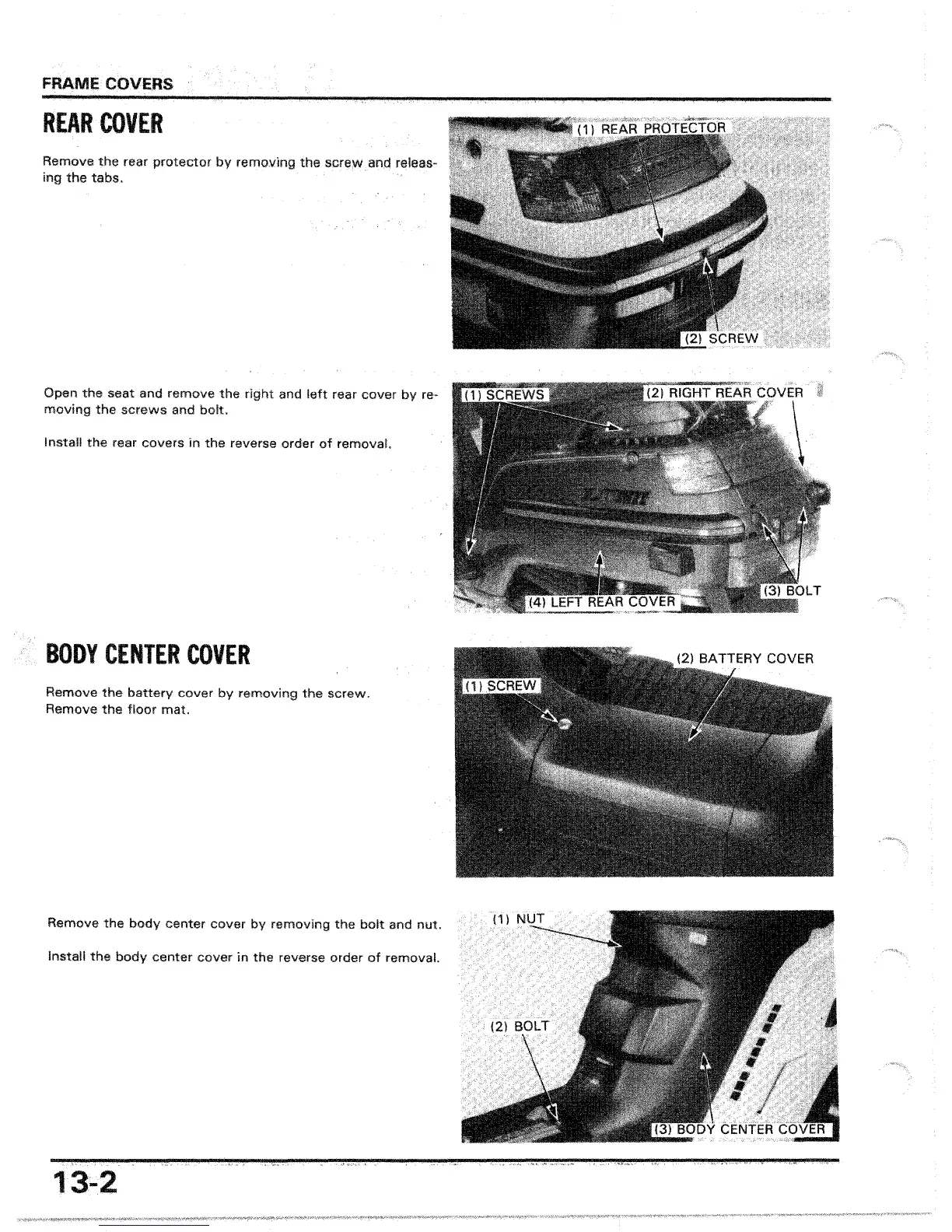

FRAME COVE.RS
REAR COVER
Remove the rear protector by removing the scrl?lN and
the tabs.
Install the rear covers in the reverse order of removal.
Open
the seat and remove the
the
screws and bolt.
and left rear cover by re-
BODY CENTER COVER
Remove the battery cover by removing the screw.
Remove the floor mat.
Remove the body center cover by removing the bolt and nut.
Install the body center cover in the reverse order of removal.
1·3 ... 2

Honda CH250 Elite 1986 Specifications

General

Engine Type	Single-cylinder, four-stroke
Displacement	244 cc
Bore x Stroke	72.0 mm x 60.0 mm
Compression Ratio	10.0:1
Fuel System	Carburetor
Ignition	CDI
Starting System	Electric
Transmission	Automatic
Final Drive	V-Belt
Front Suspension	Telescopic fork
Rear Brake	Drum
Front Tire	3.50-10
Seat Height	760 mm
Cooling System	Liquid-cooled
