Honda CH250 Elite 1986 User Manual

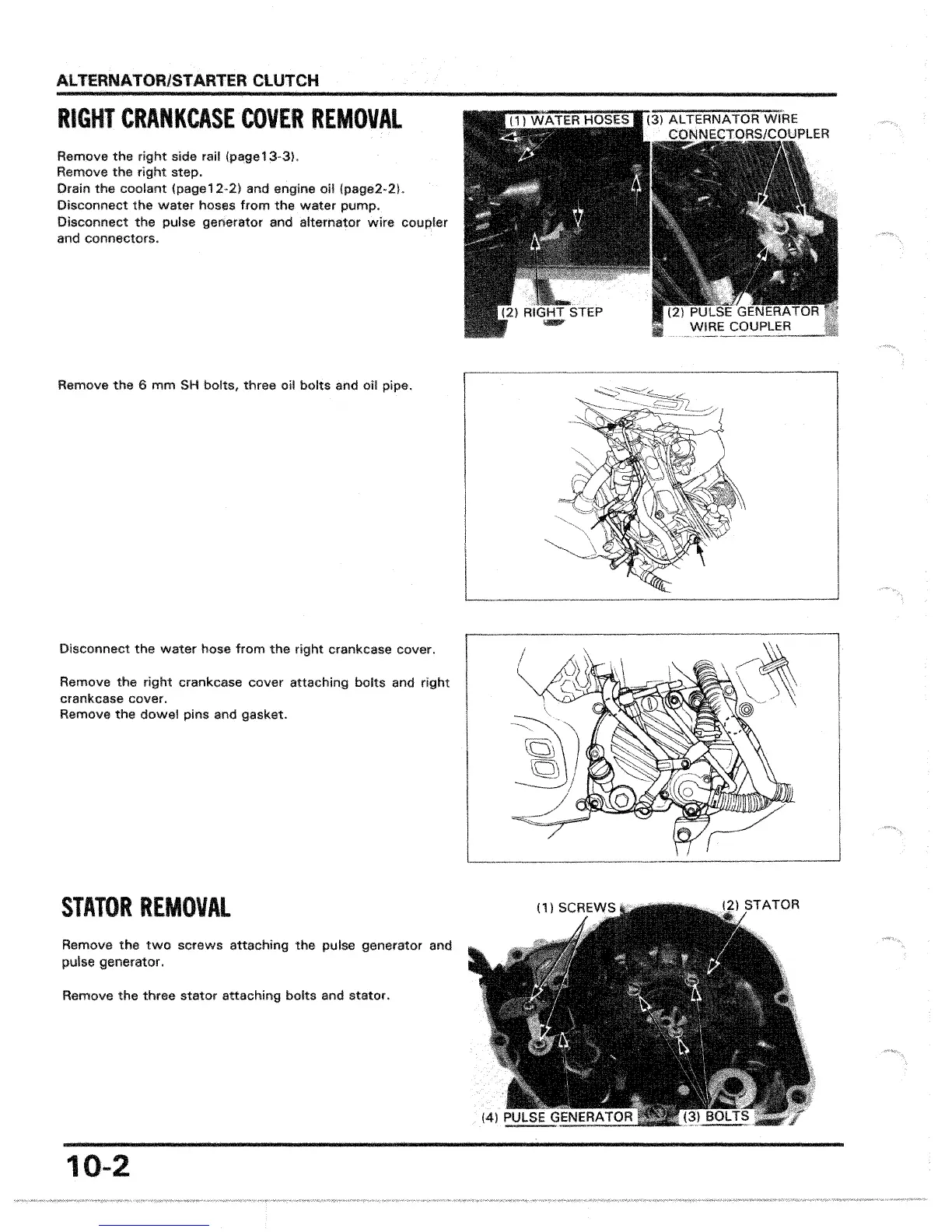

ALTERNATOR/STARTER CLUTCH
RIGHT CRANKCASE COVER REMOVAL
Remove the side rail Ipage13-31.
Remove the step.
Drain
the coolant Ipage12-21 and engine oil (page2-21.
Disconnect the water hoses from the water pump.
Disconnect the pulse
generator and alternator wire coupler
and connectors.
Remove
the 6 mm SH bolts, three oil bolts and oil pipe.
Disconnect the
water hose from the right crankcase cover.
Remove
the right crankcase cover attaching bolts and right
crankcase cover.
Remove the
dowel pins and gasket.
STATOR REMOVAL
Remove the two screws attaching the pulse generator and
pulse generator.
Remove the three
stator attaching bolts and stator.
10-2
131 ALTERNATOR WIRE
ICOUPLER
