fRAME COVERS

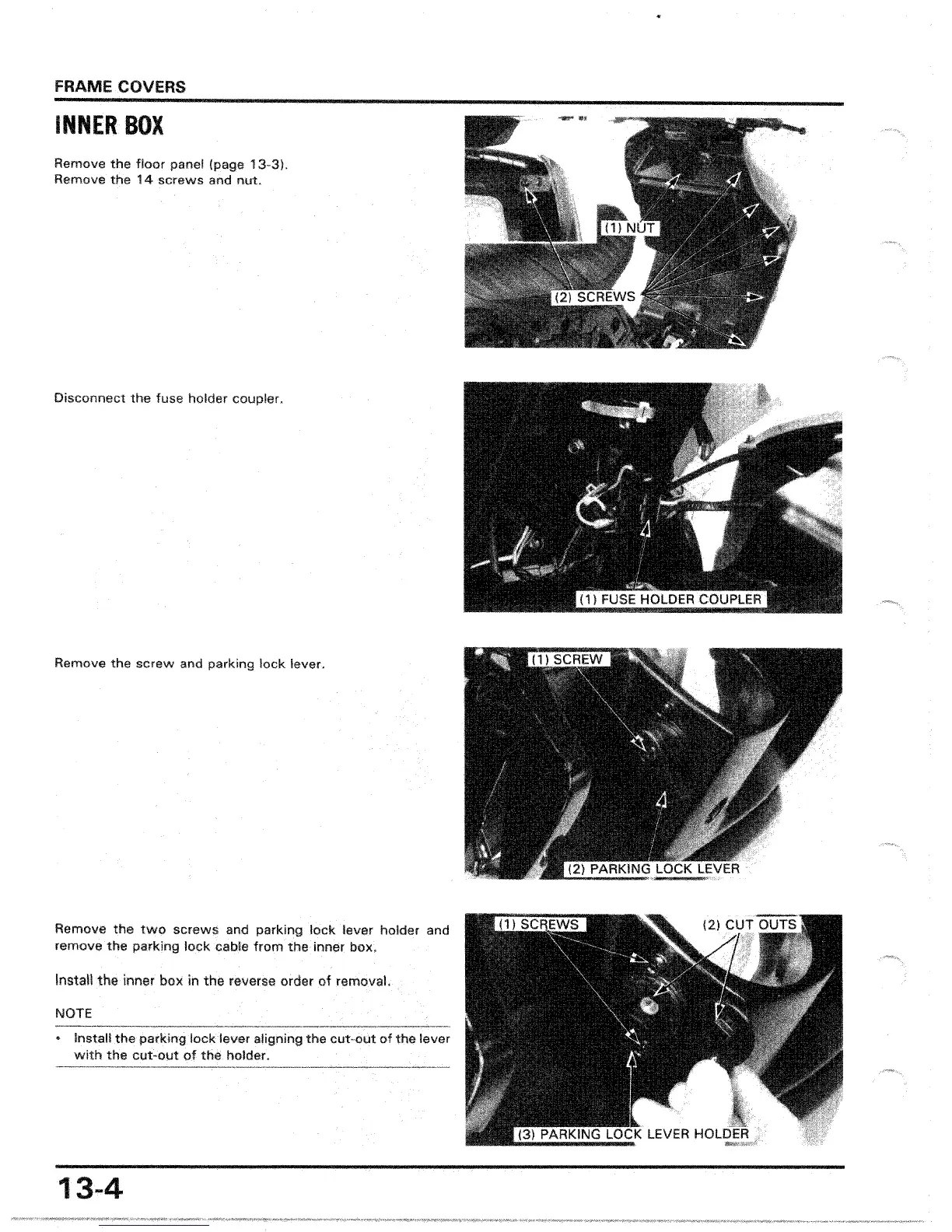

INNER BOX
Remove the floor panel (page 13-31.
Remove 14 screws and nut.
Disconnect the fuse holder coupler.
Remove
the screw and
lock lever.
Remove the two
remove the parking lock
Install
NOTE
and parking lever holder and
from the inner box.
inner box in the reverse order removal.
13 .. 4

Honda CH250 Elite 1986 Specifications

General

Engine Type	Single-cylinder, four-stroke
Displacement	244 cc
Bore x Stroke	72.0 mm x 60.0 mm
Compression Ratio	10.0:1
Fuel System	Carburetor
Ignition	CDI
Starting System	Electric
Transmission	Automatic
Final Drive	V-Belt
Front Suspension	Telescopic fork
Rear Brake	Drum
Front Tire	3.50-10
Seat Height	760 mm
Cooling System	Liquid-cooled
