Honda CH250 Elite 1986 User Manual

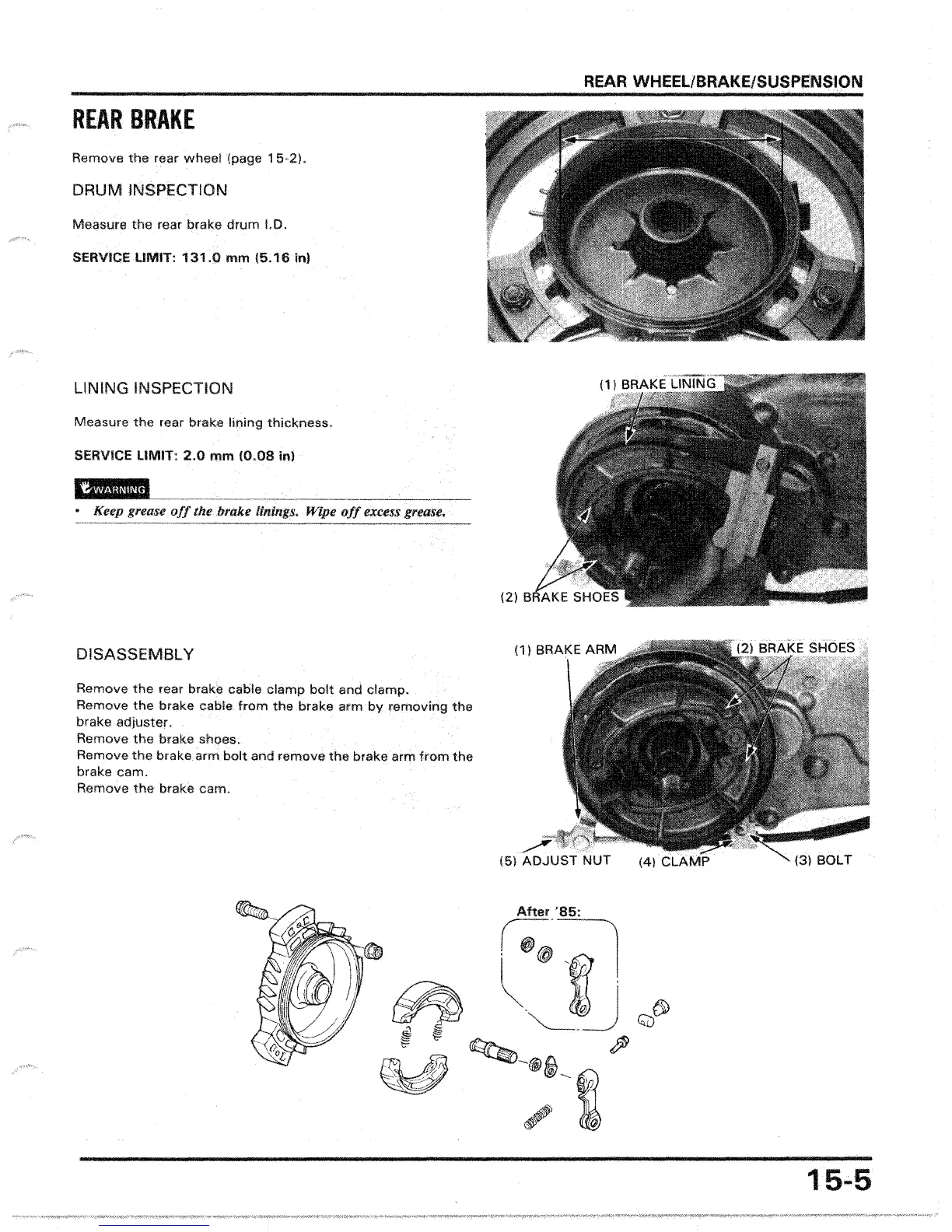

REAR WHEEliBRAKE1SUSPENS10N
DRUM INSPECTION
Remove the rear wheal 15-2),
SERVICE LIMIT: 131.0 mm (5.16 in)
drum l.D.Measure the rear
REAR BRAKE
SERVICE LIMIT: 2.0 mm (0.08 in)
LINING INSPECTION
lining thickness.
• Keep grease off the brake linings. Wipe off excess grease.
Measure the rear
DISASSEMBLY
Remove the rear cable clamp bolt clamp.
Remove
the brake from the brake arm ren'lov,jng the
brake adj1usti9r
Remove the brake shoes.
Remove the brake arm bolt and remove the brake arm from the
brake cam.
Remove the brake cam.
(5) ADJUST NUT
(4) CLAMP
(3) BOLT
15-5

Honda CH250 Elite 1986 Specifications

General

Engine Type	Single-cylinder, four-stroke
Displacement	244 cc
Bore x Stroke	72.0 mm x 60.0 mm
Compression Ratio	10.0:1
Fuel System	Carburetor
Ignition	CDI
Starting System	Electric
Transmission	Automatic
Final Drive	V-Belt
Front Suspension	Telescopic fork
Rear Brake	Drum
Front Tire	3.50-10
Seat Height	760 mm
Cooling System	Liquid-cooled
