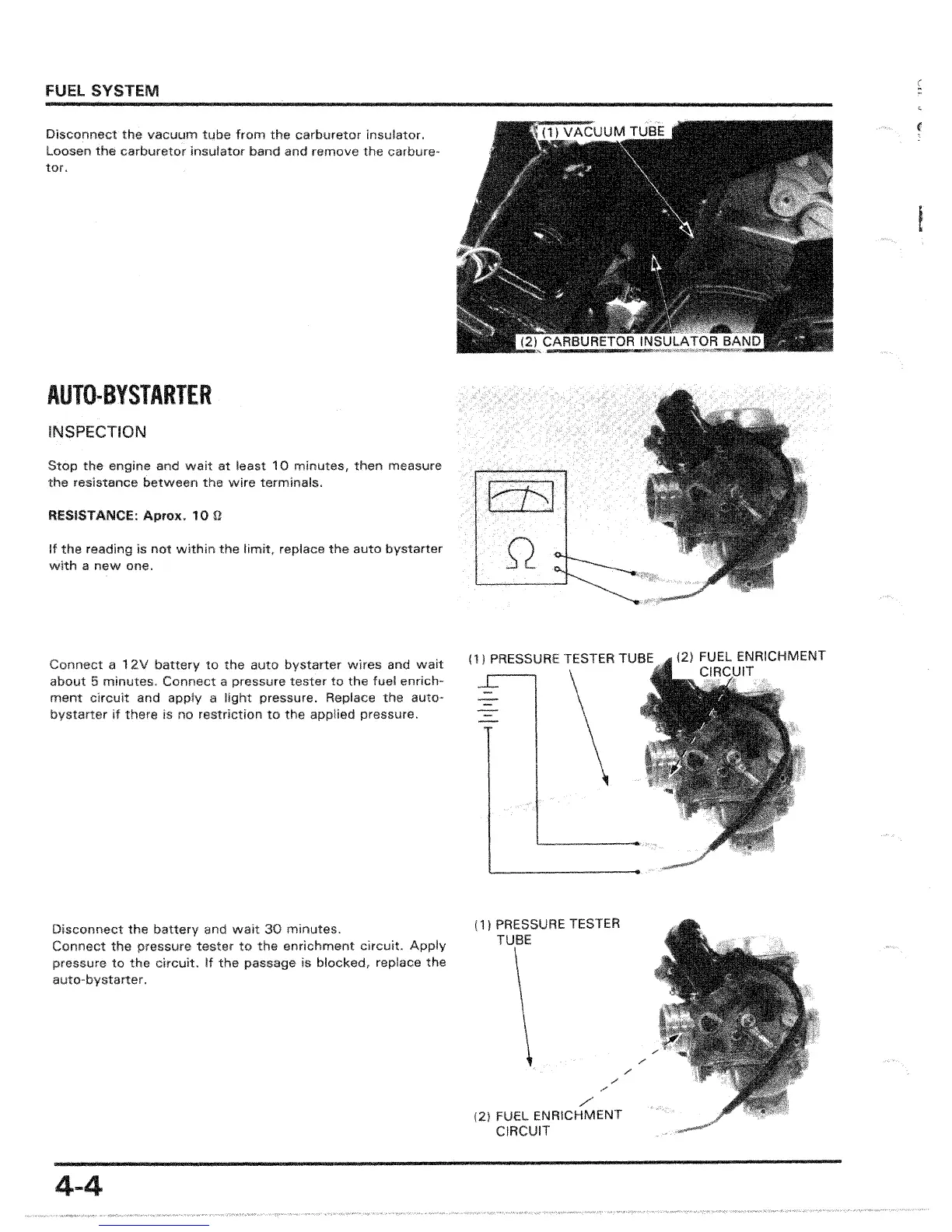

FUEL SYSTEM
Di~.connect the tube from the carburetor insulator.
Loosen the carburetor insulator band and remove the carbure-
tor.
AUTO·BYSTARTER
Stop the engine and wait at least 10 minutes, then measure
the resistance between the wire terminals.
RESISTANCE: Aprox. 10 (}
If the is not within the limit, replace the auto bystarter
with a new one.
Connect a 12V to the auto wires and wait
about 5 minutes. Connect a pressure tester to the fuel enrich-
ment circuit and a pressure. Replace the auto-
bystarter if there is no restriction to the pressure.
Disconnect the and wait 30 minutes.
Connect the pressure tester to the enrichment circuit. Apply
pressure to the circuit. If the passage is blocked, replace the
4-4
(1) PRESSURE TESTER
TUBE
,/
,/
/'
/
(2) FUR ENRICHMENT
CIRCUIT
