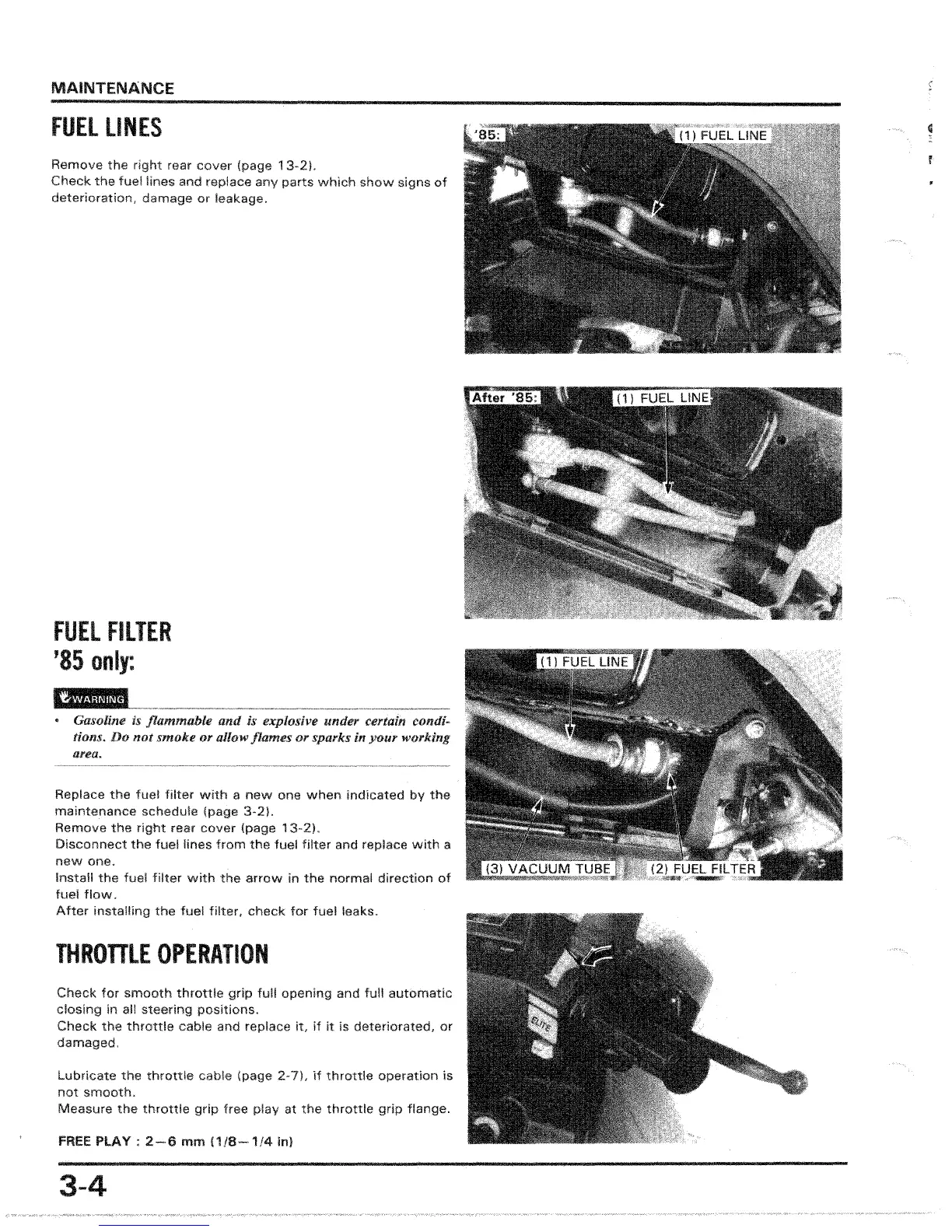

MAINTENANCE
FUEL LINES
Remove the rear cover 13-2).
Check the fuel lines and replace any parts which show
deterioration, or leaka;ge.
of
Check for smooth throttle full and full automatic
in all positions.
Check the throttle cable and replace it, if it is deteriorated, or
lubricate the throttle cable (page 2-71. if throttle operation is
not smooth.
Measure the throttle grip free play at the throttle
FREE PLAY: 2-6 mm 1118-1/4 inl
THROTTLE OPERATION
Replace the fuel filter with a new one when indicated the
ml'l,ntAn""r'" schedule 3-21.
Remove the right rear cover (page 13-2),
Disconnect the fuel lines from the fuel filter and replace with a
new one.
Install the fuel filter with the arrow in the normal direction of
fuel flow.
After installing the fuel filter, check for fuel leaks.
• Gasoline is and is eXl7lmrive
tions. Do not smoke or allow flames or
area.
FUEL FILTER
'85 only:
1IIIIt ~ o o_o~_o_o ~ _
3-4

Honda CH250 Elite 1986 Specifications

General

Engine Type	Single-cylinder, four-stroke
Displacement	244 cc
Bore x Stroke	72.0 mm x 60.0 mm
Compression Ratio	10.0:1
Fuel System	Carburetor
Ignition	CDI
Starting System	Electric
Transmission	Automatic
Final Drive	V-Belt
Front Suspension	Telescopic fork
Rear Brake	Drum
Front Tire	3.50-10
Seat Height	760 mm
Cooling System	Liquid-cooled
