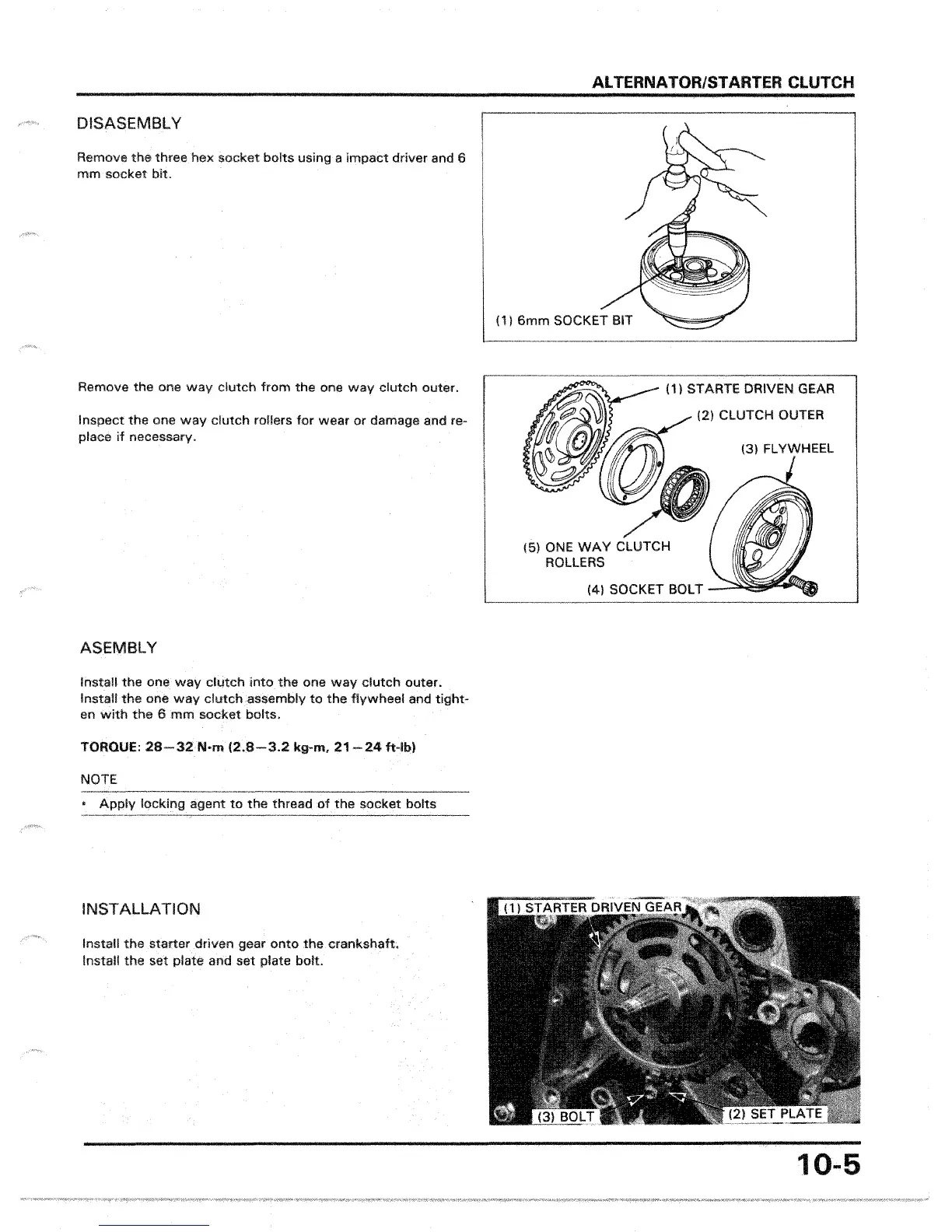

DISASEMBLY
Remove the
mm socket bit.
socket bolts using a impact driver and 6
ALTERNATORISTARTER CLUTCH
Remove the one way clutch from the one way clutch outer.
Inspect the one way clutch rollers for wear or damage and re-
place if necessary.
ASEMBLY
the way the one way clutch outer.
Install
the way clutch assembly to the flywheel and tight-
en with the 6 mm bolts.
TORQUE: 28-32N·m /2.8-3.2 kg-m, 21-24 ft-Ibl
(1 ) ST ARTE DRIVEN GEAR
(4) SOCKET BOLT
agent to the thread of socket bolts
INSTALLATION
driv(in gear onto the crankshaft.
and set bolt.
10-5

Honda CH250 Elite 1986 Specifications

General

Engine Type	Single-cylinder, four-stroke
Displacement	244 cc
Bore x Stroke	72.0 mm x 60.0 mm
Compression Ratio	10.0:1
Fuel System	Carburetor
Ignition	CDI
Starting System	Electric
Transmission	Automatic
Final Drive	V-Belt
Front Suspension	Telescopic fork
Rear Brake	Drum
Front Tire	3.50-10
Seat Height	760 mm
Cooling System	Liquid-cooled
