COOLING SYSTEM

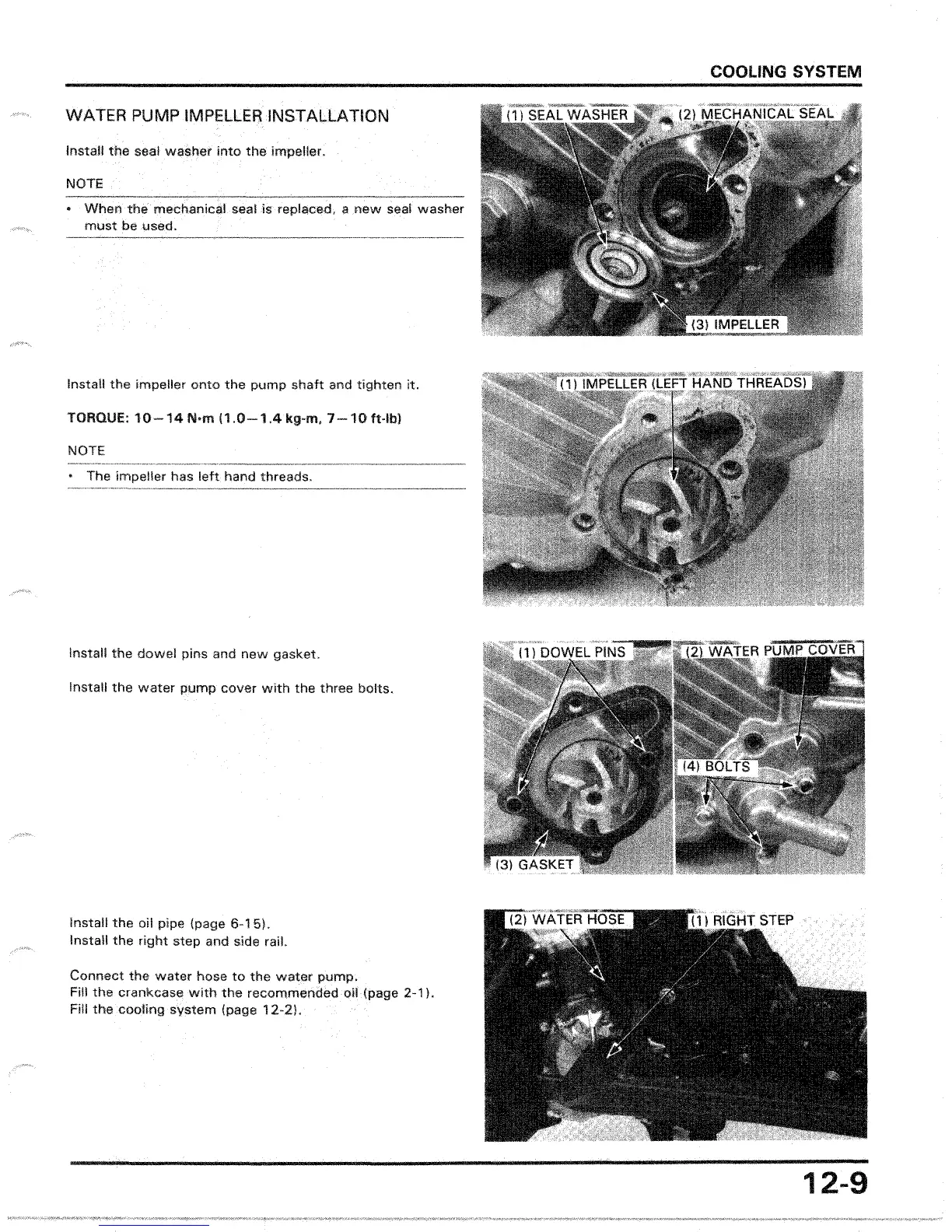

WATER PUMP IMPELLERINSTALLATION
is replaced, anew
into the: im!Jeller.
When the'mecrlanic$1
must
NOTE
Install
Install
the impeller onto the pump shaft and tighten it.
TORQUE: 10-14 N'm 11.0-1.4 kg-m, 7-10 ft-Ib)
NOTE
• The
imt>elllBr has left hand threads.
Install the dowel pins and new
Install the water pump cover with the three bolts.
Install the oil pipe 6-1 5).
Install the step and side raiL
Connect the water hose to the
Fill the with the rec:OITlmlancled oll (page 2-').
Fill system (page 12-2).
12 .. 9

Honda CH250 Elite 1986 Specifications

General

Engine Type	Single-cylinder, four-stroke
Displacement	244 cc
Bore x Stroke	72.0 mm x 60.0 mm
Compression Ratio	10.0:1
Fuel System	Carburetor
Ignition	CDI
Starting System	Electric
Transmission	Automatic
Final Drive	V-Belt
Front Suspension	Telescopic fork
Rear Brake	Drum
Front Tire	3.50-10
Seat Height	760 mm
Cooling System	Liquid-cooled
