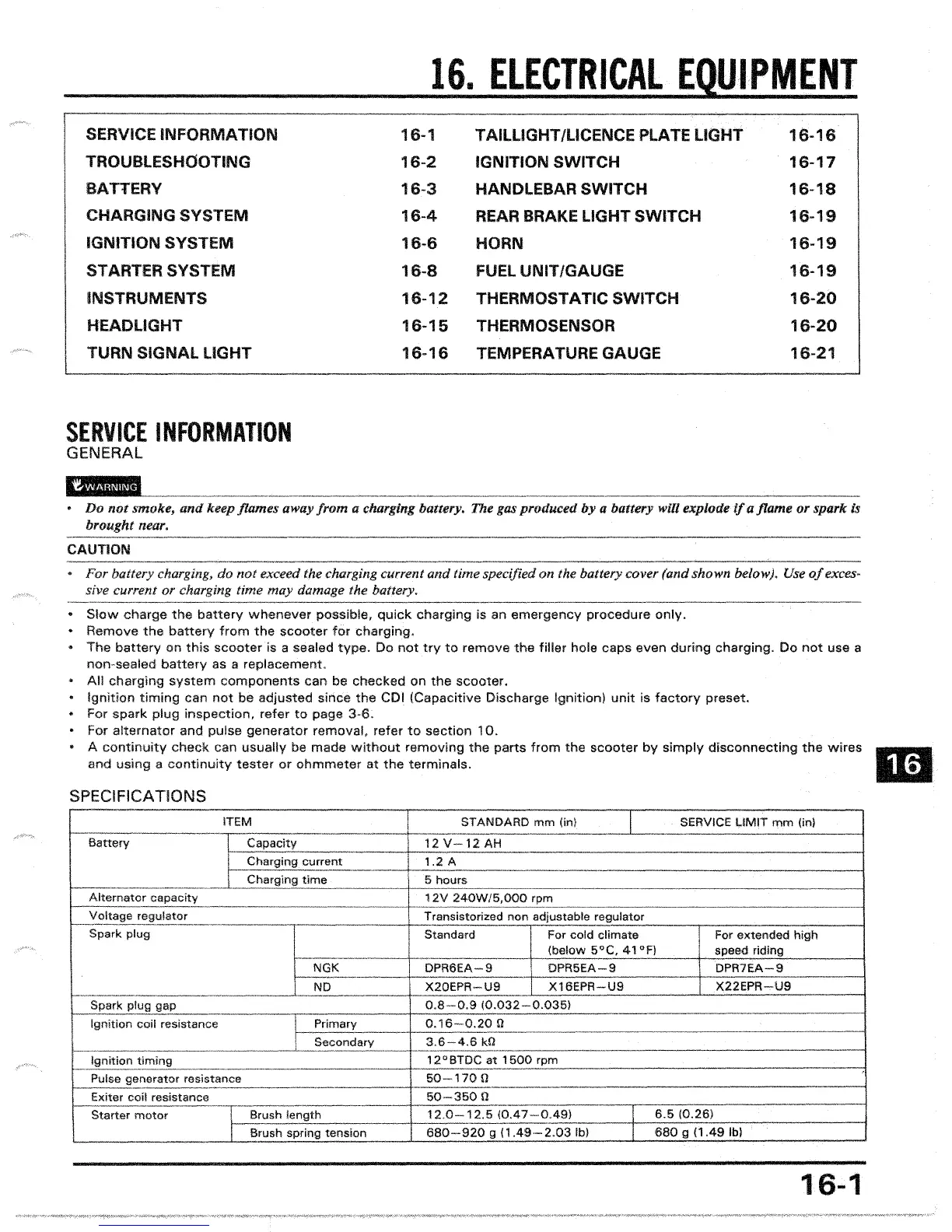

16.
ELECTRICAL.
EQUIPMENT
SERVICE
INFORMATiON
TROUBLESHOOTiNG
BATTERY
CHARGING SYSTEM
IGNITiON SYSTEM
STARTER SYSTEM
INSTRUMENTS
HEADLIGHT
TURN SIGNAL LIGHT
SERVICE
INFORMATION
GENERAL
16-1
16-2
16-3
16-4
16-6
16-8
16-12
16-15
16-16
TAILLIGHT/LICENCE PLATE LIGHT
IGNITION SWITCH
HANDLEBAR SWITCH
REAR BRAKE LIGHT
SWITCH
HORN
FUEL UNIT/GAUGE
THERMOSTATIC
SWiTCH
THERMOSENSOR
TEMPERATURE GAUGE
16-16
16-17
16-18
16-19
16-19
16-19
16-20
16-20
16-21
IIIIIII-
~-
• Do
not
smoke, and keep flames away from a charging battery. The
gas
produced
by
a battery will explode
i/a
flame or spark is
brought near.
--~
CAUTION
bal'tery
c,l1ar'!?iflJ!,
do
flot
exceed the charging
current
and
time
specified
on
the
battery
cover
(and
shown below). Use
of
eXCeS-
chargil1g
time
may
damage the
•
Slow
charge
the
battery
whenever
possible,
quick
charging is an emergency procedure only.
• Remove
the
battery
from
the
scooter
for
charging.
• The
battery
on
this
scooter
is a sealed
type.
Do
not
try
to
remove
the
filler hole caps even
during
charging. Do
not
use a
non-sealed
battery
as a replacement.
• All
charging
system
components
can be checked
on
the
scooter.
•
Ignition
timing
can
not
be adjusted since
the
COl (Capacitive Discharge Ignition)
unit
is
factory
preset.
• For spark plug
inspection,
refer
to
page
3-6.
• For
alternator
and pulse
generator
removal, refer
to
section
10.
• A
continuity
check
can
usually
be
made
without
removing
the
parts
from
the
scooter
by
simply
disconnecting
the
wires
~.
.•..
..
and using a
continuity
tester
or
ohmmeter
at
the
terminals.
....
SPECIFICATIONS
ITEM STANDARD mm (in)
I
SEFlVICE
I.IMIT
mm
(in)
Battery
Capacity
12
V-12
AH
Charging current
1.2
A
Charging
time
5 hours
Alternator capacity
12V"
,,.,,
"'"
1'\1'\1'\ rpm
Voltage
Transistorized non adjustable regulator
Spark plug
Standard For cold climate
For extended high
(below
5°C.
41°F)
speed riding
NGK
--.-
DPR6EA-9
DPR5EA-9 DPR7EA-9
NO
-
X20EPR-U9
X16EPR-U9
X22EPR...,.U9
Spark
plug gap
0.8-0.9
(0.032-0.035)
Ignition coil resistance Primary
0.16-0.200
3.6
4.6
kO
Ignition timing
12°BTOC
at
1500
rpm
Pulse generator resistance
60-1700
Exiter coil resistance
60-350
n
Starter
motor
Brush length
12.0-12.5
(0.47-0.49)
I
6.5
(0.26)
Brush spring tension
680-920
g
(1.49-2.03Ib)
I
680
g
(1.49
Ibl
16
..
1
