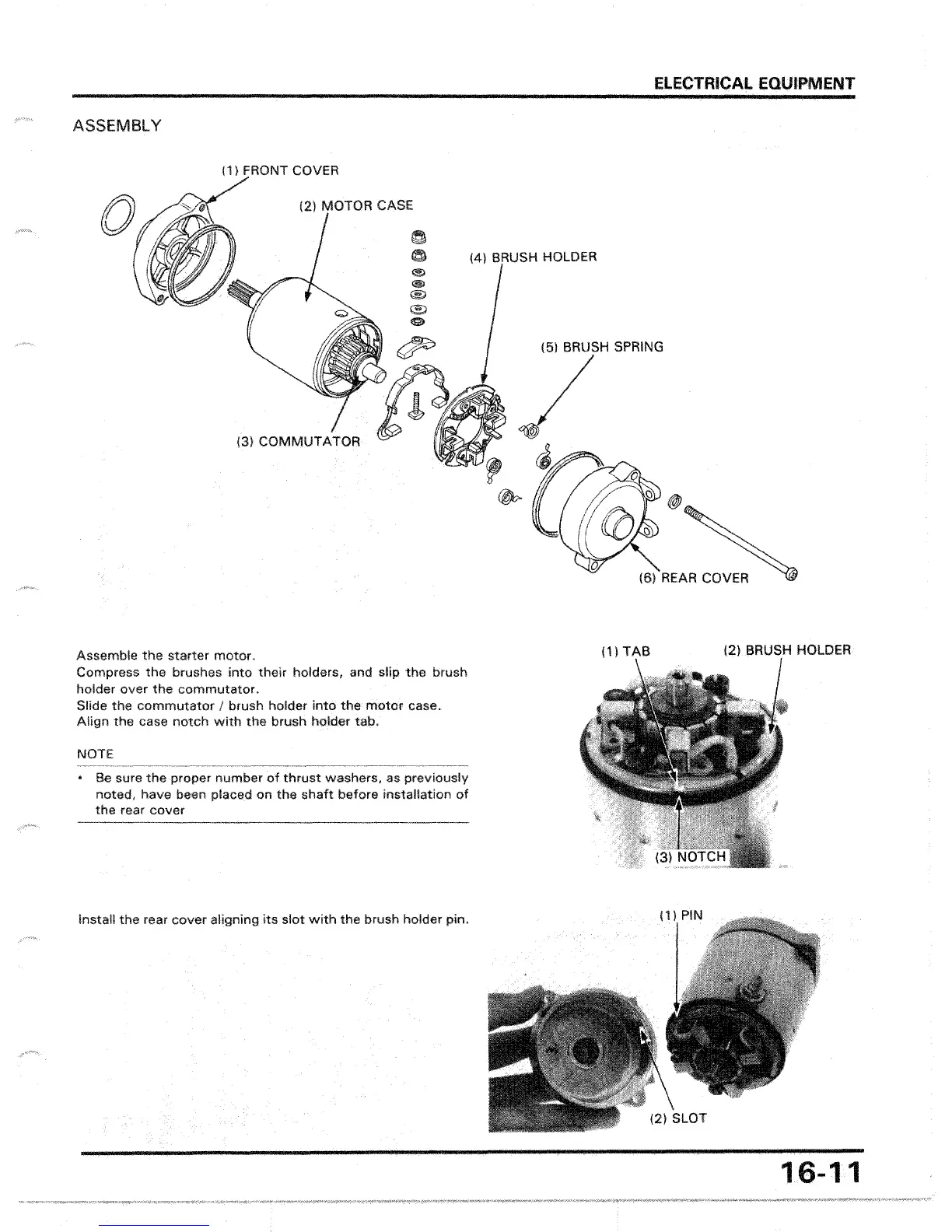

ASSEMBLY
(1) FRONT COVER
ELECTRICAL
EQUIPMENT
Assemble
the
starter
motor.
Compress
the
brushes
into
their
holders, and slip
the
brush
holder
over
the
commutator.
Slide
the
commutator
I brush holder
into
the
motor
case.
Align
the
case
notch
with
the
brush holder
NOTE
•
Be
sure
the
proper
number
of
thrust
washers, as
prE1VicJusly
noted,
have been
on
the
shaft
before installation
of
the
rear
cover
(1)
TAB
(2) BRUSH HOLDER
Install
the
rear
cover
aligning
its
slot
with
the
brush holder pin.
16-11
