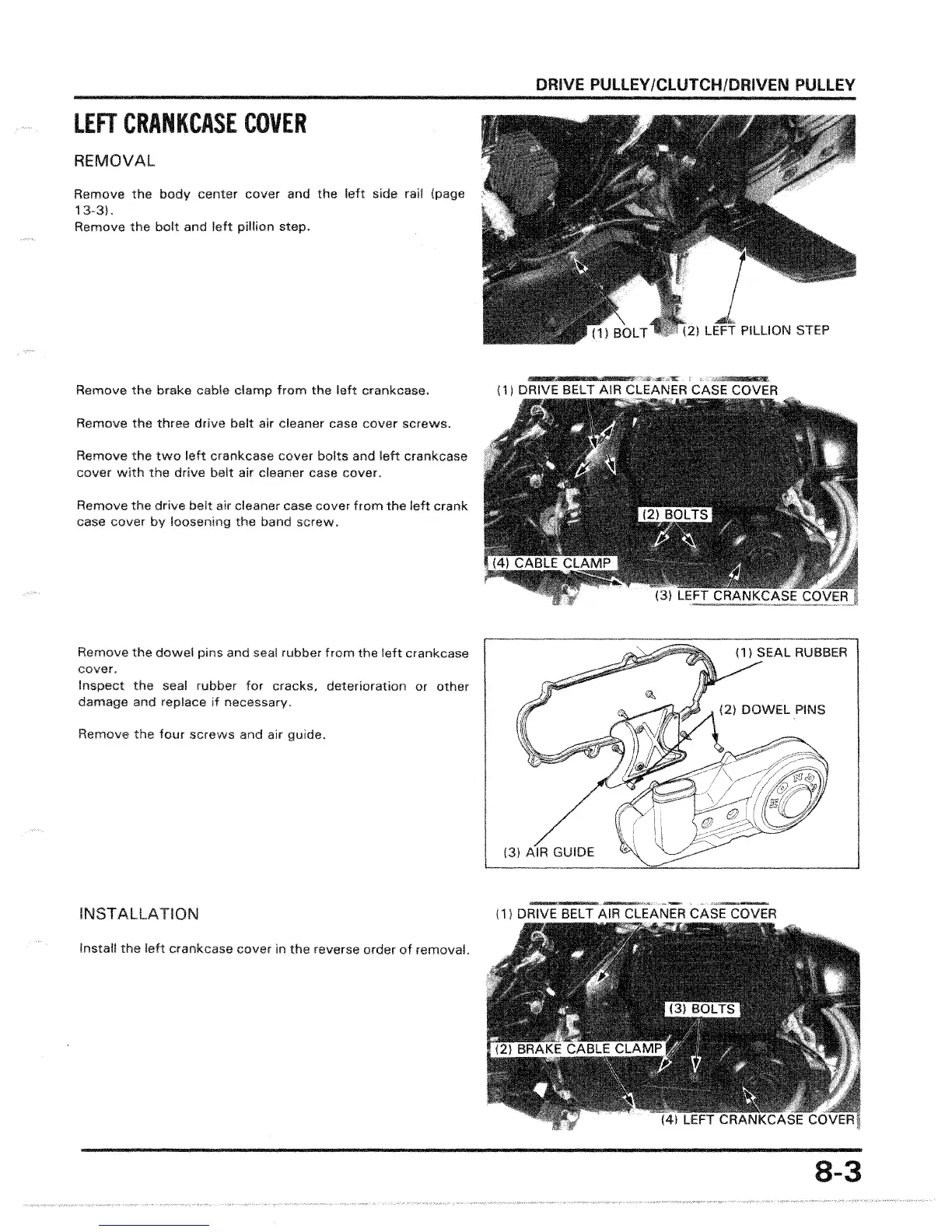

LEFT CRANKCASE COVER
REMOVAL
Remove the body center cover and the left side rail
13-31.
Remove the bolt and left step.
DRIVE PULLEY/CLUTCH/DRIVEN PULLEY
PILLION STEP
Remove the brake cable
from the left crankcase.
~ &'?'';;N@;,.,;?A'&V{';;~ ~"'i 1:.
(1) DRIVE BELT AIR CLEANER CASE COVER
Remove the three drive belt air cleaner case cover screws.
Remove the two left crankcase cover bolts and left crankcase
cover with the drive belt air cleaner case cover.
Remove the drive belt air cleaner case cover from the left crank
case cover by the band screw.
Remove the dowel pins and seal rubber from the left crankcase
cover.
In~n"'/~t the seal rubber for cracks, deterioration or other
damage and replace if necessary.
Remove
the four screws and air guide.
INSTALLA rlON
Install the left crankcase cover in the reverse order of removal.
lJJ ~""'«O;';'"""",>-,_' r= __
(1) DRIVE BELT AIR CLEANER CASE COVER
8 .. 3
