Honda E - Page 609

608
uuChecking and Maintaining Wiper BladesuChanging the Rear Wiper Blade Rubber
Maintenance

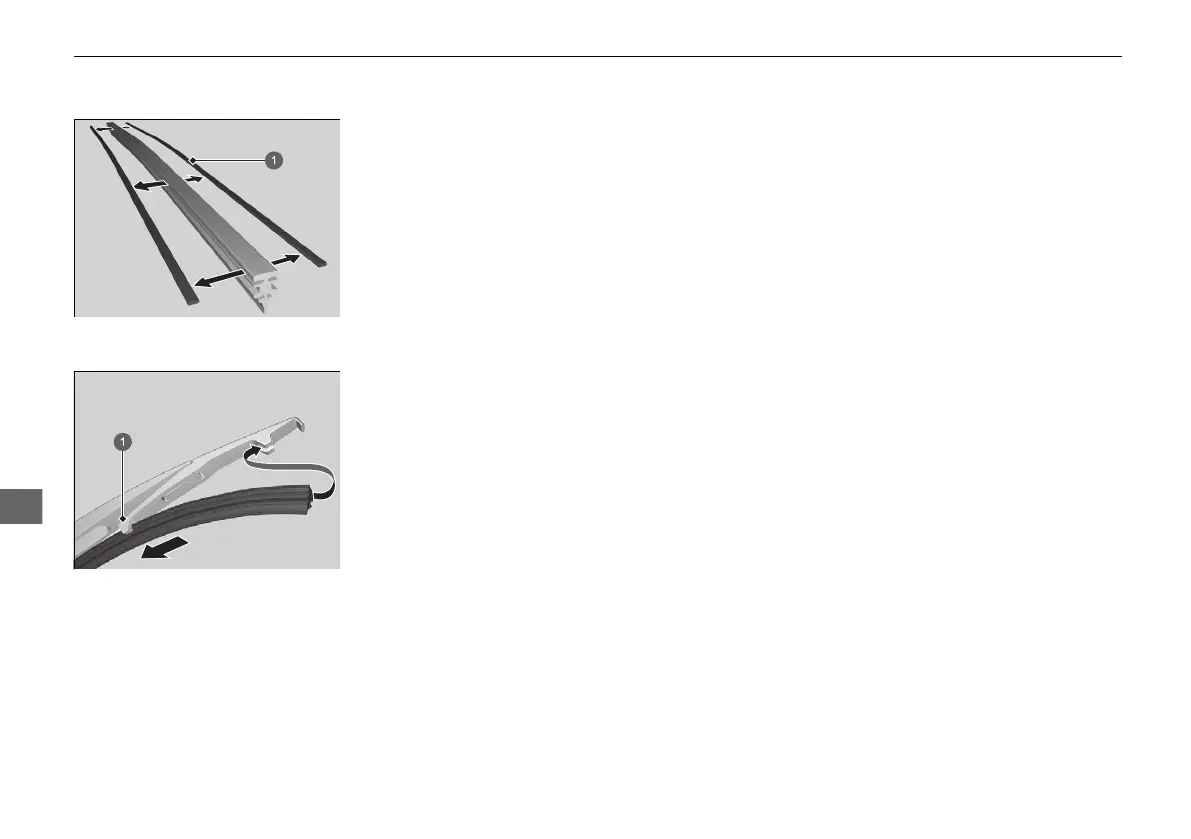

4. Remove the retainers from wiper blade and
mount to a new rubber blade.
5. Slide the new wiper blade onto the holder.
u Make sure it is engaged correctly, then
install the wiper blade assembly onto the
wiper arm.
a Retainer
a Holder
