Setting up the lawn mower
1-
3

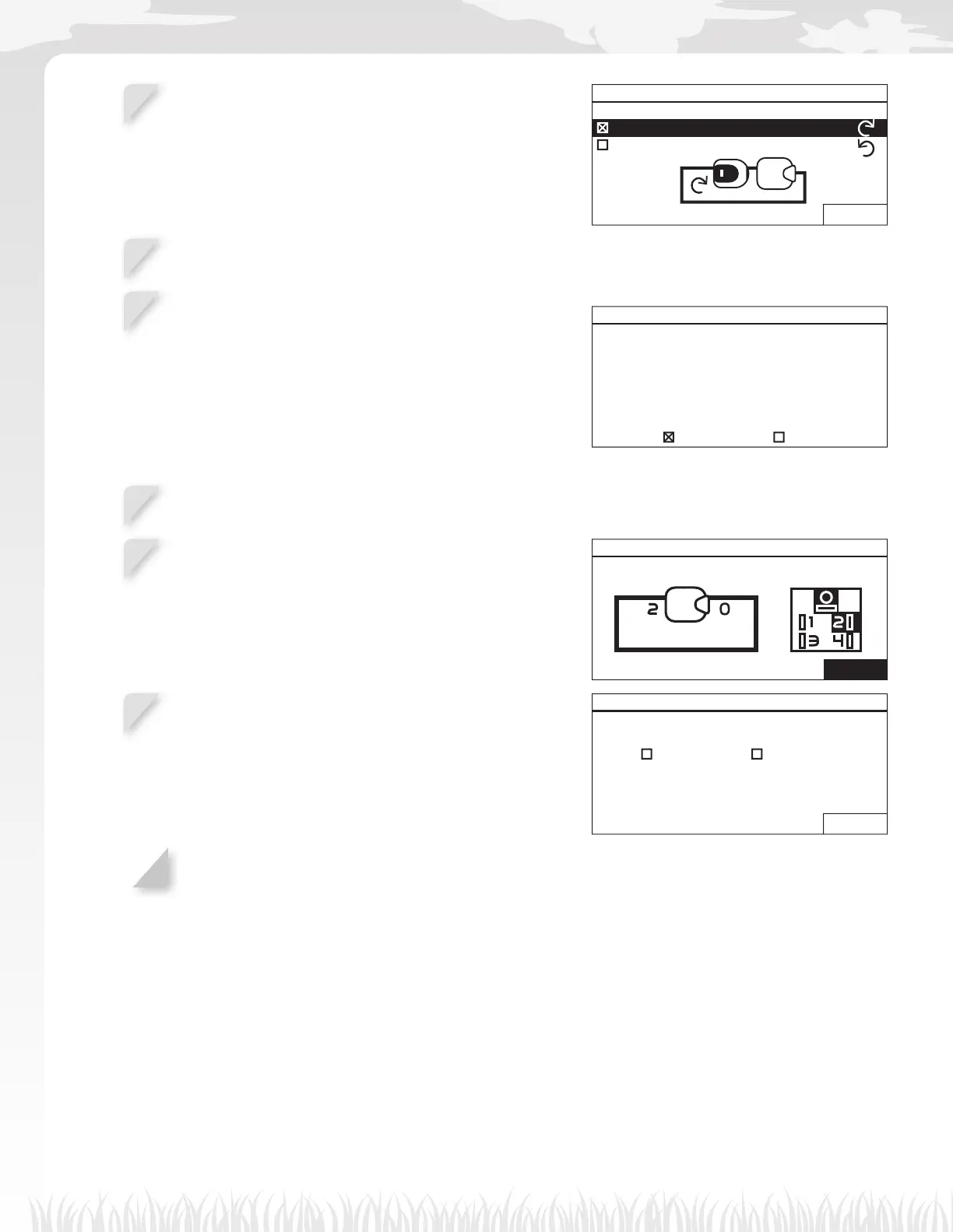

Select [Clockwise(CW)] or [Counter-clockwise(CCW)]
referring to the layout of your docking station and
boundary wire, and press the H button.
Lawn layout 1/7
Docking direction
Clockwise(CW)
Counter-clockwise(CCW)
NEXT
1-
4
Select [NEXT] and press the H button.
1-
5
Enter the values of the boundary wire length and lawn size.
NOTE:
- For details on the boundary wire length or lawn size,
contact your dealer.
- Input the boundary wire length exactly because
the values which are automatically confi gured are
associated with the boundary wire length.
- If your lawn mower is an HRM310, the max length of
the boundary wire is 1,310 ft (400 m).
EX: HRM520
Lawn layout
Boundary wire length
1 1 3 3 0 ft (MAX2600 ft)
Lawn size
3 2 0 0 0 ft
2
(MAX32300 ft
2
)
Do you have short cut wire?
Yes No
1-
6
Select [NEXT] and press the H button.
1-
7
Confi rm the boundary wire connection of the docking
station terminals with the displayed image. Select [OK]
and press the H button.
NOTE:
- For detail, see “Conditions for installing the docking
station” (M page 12).
Lawn layout 2/7
Station connector
OK
1-
8
Select [Yes] or [No] to the question on the narrow
passages, and enter the values of the minimum passage
width from 40 to 120 in (100 to 300 cm).
Lawn layout 3/7
Are there
narrow passages?
Yes No
What is the minimum
passage width(wire to wire)
_ _ 0 in
(40 - 120 in)
NEXT
1-
9
Select [NEXT] and press the H button.
The confi guration of lawn layout is completed.
The setup wizard top screen is displayed and [1.Lawn
layout] is checked.
NOTE:
- If you want to change the settings in this
confi guration, select this menu again. You can
modify the settings through the setup wizard.
- Confi rm the following settings
Homing setup - Passage width
Start point setup - Passage width
- Input the narrow passage of lawn correctly.
Be sure to test the settings because the lawn
mower automatically set the passage width of
departure and the return.
