Section 11 - W7220 JADE™ Economizer Module
63-8594-02 Honeywell Economizers 108

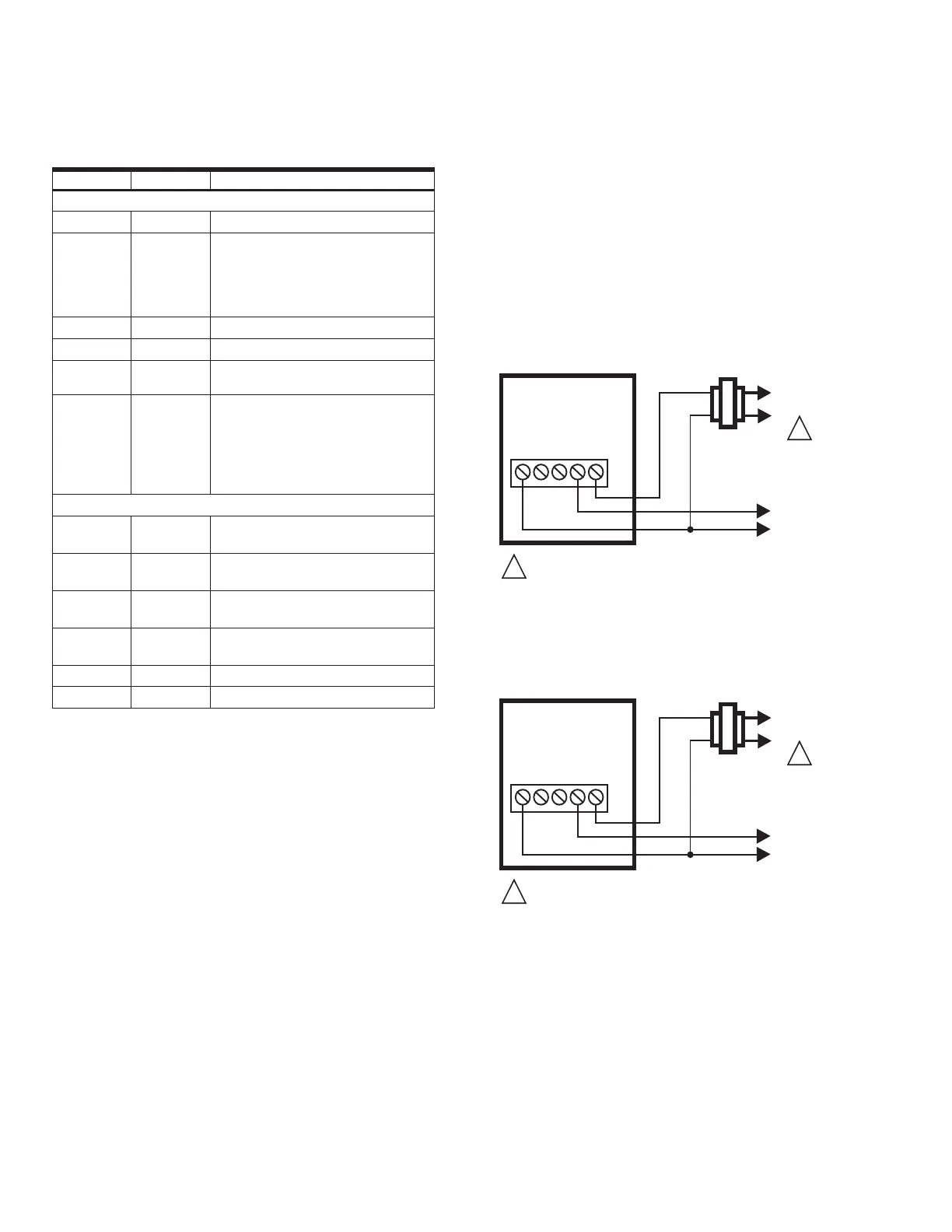

Table 2. Economizer Module - Right hand
terminal blocks.
Actuator Wiring Options:
1. The JADE™ economizer controller can
only have one (1) communicating actuator
connected to it.
2. Up to four (4) non-communicating and
two (2) 2-position actuators (1 each on
EXH1 and AUX1 O)
3. One (1) communicating and up to four (4)
non-communicating and two (2) 2-
position actuators (1 each on EXH1 and
AUX1 O). When using a 2-position
actuator on the AUX1 O, the AUX1 O
must be programmed for Exh2 and the %
open is the % open of the outdoor damper
when the 2-pos actuator opens. Connect
24 V to Exh1 and/or AUX1 O and ground
to the JADE™ “C” terminal.
CO
2
Sensor Wiring
When using the C7232 Honeywell CO
2
sensors the black and brown common wires
are internally connected and only one is
connected to “IAQ COM” on the JADE™. Use
the power from the JADE™ to power the CO
2
sensor OR make sure the ground for the
power supplies are common. See wiring
diagram below for the C7232 and C7632
wiring diagrams.
Fig. 2. Wiring for C7232
Fig. 3. Wiring for C7632
Label Type Description
Top Right Terminal Block
n/a The first terminal is not used
AUX2 I 24 Vac IN Shut Down (SD) or Heat (W)
Conventional only or Heat Pump
Change
over (O/B) in Heat Pump mode.
OCC 24 Vac IN Occupied / Unoccupied Input
E-GND EGND Earth Ground - System Required
EXH1 24 Vac
OUT
Exhaust Fan 1 Output
AUX1 O 24 Vac
OUT
Programmable: Exhaust fan 2
output or ERV or System Alarm
output.
Bottom Right Terminal Block
Y2-I 24 Vac IN Y2 in - Cooling Stage 2 Input
from space thermostat
Y2-O 24 Vac
OUT
Y2 out - Cooling Stage 2 Output
to stage 2 mechanical cooling
Y1-I 24 Vac IN Y1 in - Cooling Stage 1 Input
from space thermostat
Y1-O 24 Vac
OUT
Y1 out - Cooling Stage 1 Output
to stage 1 mechanical cooling
C COM 24 Vac Common
R 24 Vac 24 Vac Power (Hot)
L1
(HOT)
0-10 VDC
L2
M34095
1
1 POWER SUPPLY. PROVIDE DISCONNECT MEANS
AND OVERLOAD PROTECTION AS REQUIRED.
C7632
L1
(HOT)
0-10 VDC
L2
M34095
1
1 POWER SUPPLY. PROVIDE DISCONNECT MEANS
AND OVERLOAD PROTECTION AS REQUIRED.
C7632
