Honeywell Design and Application User Manual

Section 11 - W7220 JADE™ Economizer Module
107 Honeywell Economizers 63-8594-02
Each Sylkbus sensor includes a two pin side
connector with the packaging. The SKU
number of the Sylkbus sensor is C7400S. All
OA, RA and DA sensors are the same SKU
number. The sensor is set for the appropriate
type of sensing using the three position DIP
switch located on the sensor. OA position is
OFF, OFF, OFF; RA is ON, OFF, OFF and DA
is OFF, ON, OFF. During installation the
sensors are set for the usage desired.
NOTE: The protective film on the dip
switch is only necessary during the
factory assembly process. Simply
push through the film to set the dip
switches; this will not harm the
device.
Once installed, a sensor can be changed to a
different application by simply changing the
DIP switch setting.
a
MA = Mixed Air
b
OA = Outdoor Air
c
RA = Return Air
d
DA = Discharge Air
WIRING
Module wiring in the field is terminated to the
four screw terminal blocks located on the left
and right sides of the unit. Module wiring at the
OEM factory is terminated via the header pin
terminals located on the left and right sides.
The header terminal pins and the terminal
blocks have common terminations for the
appropriate input or output.
Use Fig. 1 and Tables 1 and 2 to locate the
wiring terminals for the economizer module.
NOTE: The four terminal blocks are
removable. You can slide out each
terminal block, wire it, and then
slide it back into place.

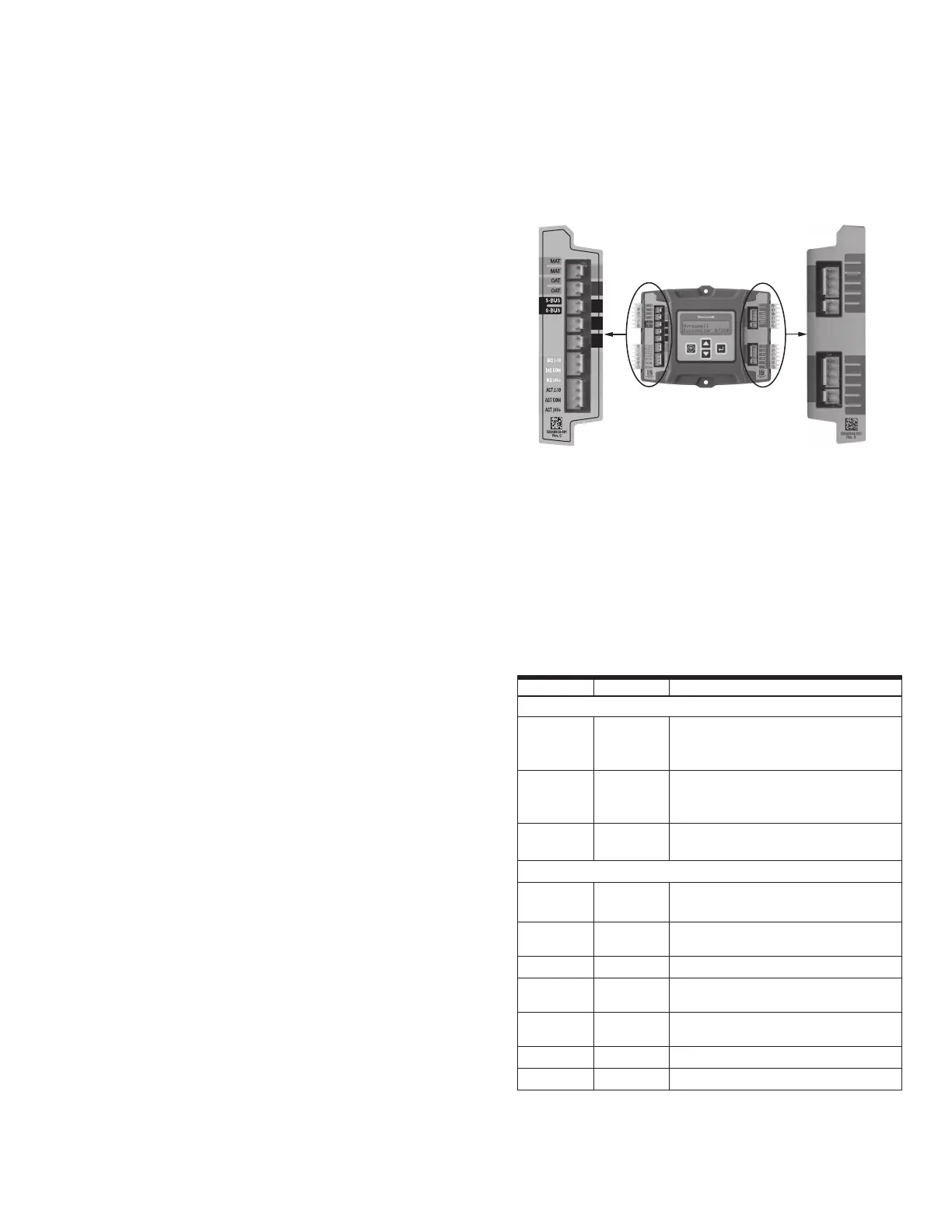

Fig. 1. W7220 Economizer module terminal
connection labels.
Table 1. Economizer Module - Left hand
terminal blocks.
Label Type Description
Top Left Terminal Block
MAT
MAT
20k NTC
and
COM
Mixed Air Temperature Sensor
(polarity insensitive connection)
OAT
OAT
20k NTC
and
COM
Outdoor Air Temperature Sensor
(polarity insensitive connection)
S-BUS
S-BUS
SYLK
Bus
Sylk Bus sensor (polarity
insensitive connection)
Bottom Left Terminal Block
IAQ 2-10 2-10 Vdc
Air Quality Sensor Input (e.g. CO
2
sensor)
IAQ
COM
COM Air Quality Sensor Common
IAQ 24V 24 Vac Air Quality Sensor 24 Vac Source
ACT 2-10 2-10 Vdc Damper Actuator Output (2-10
Vdc)
ACT
COM
COM Damper Actuator Output Common
ACT 24V 24 Vac Damper Actuator 24 Vac Source
NA The last terminal is not used
JADE CONTROLLER
LEFT TERMINAL
BLOCK LABEL
RIGHT TERMINAL
BLOCK LABEL
M32283B
AUX2-I
AUX1-O
AUX2-I
OCC
E-GND
EXH1
AUX1-O
Y2-I
Y2-O
Y1-I
Y1-O
C
R
