Venturi-Air Duct Kit
26 FB 798349 / 04.13

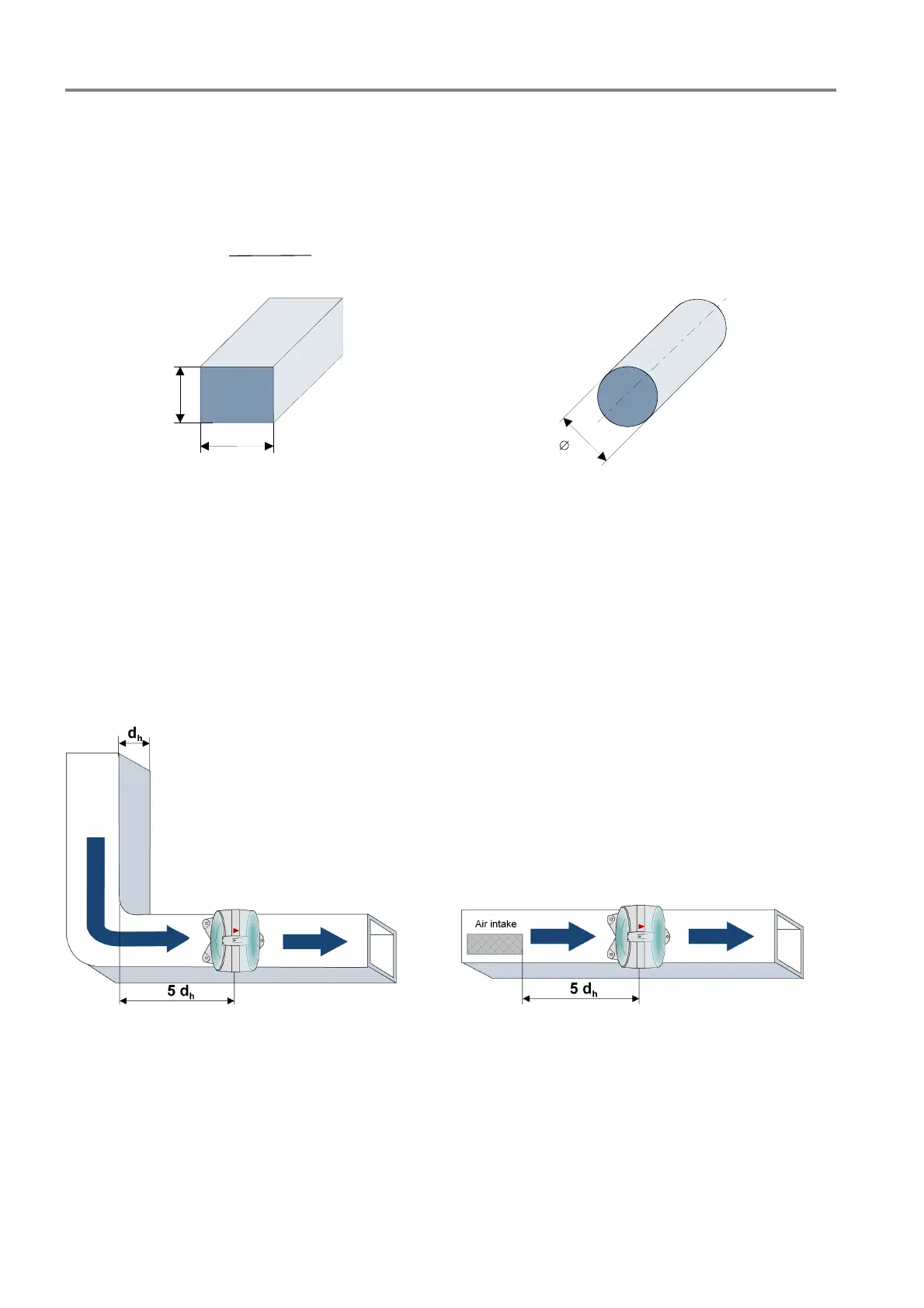

10.2 Calculation of upstream and downstream distances
Air duct with circular cross-section Air duct with rectangular cross-section
d
h
=
2 x H x B
H + B
d
h
= D
B
H
D
In order to exclude faulty measurements the air duct detector should be mounted in the same way as a flow
meter. For applications with a detector mounting close to reducing dampers and regulating flaps, filter units or
bends, the following minimum distances must be observed:
upstream Î at least 3 x the nominal diameter of the air duct
downstream Î at least 5 x the nominal diameter of the air duct
Fig. 3: Air duct detector after a bend in the duct system and downstream from an air intake (Example)
