Honeywell ESSER 781443 - Wiring to the FACP

Venturi-Air Duct Kit
FB 798349 / 04.13 39
16 Wiring to the FACP
1
2 3456 78
12 345 6 78
IN4
OUT5
EM2
C3
EP6
1
A -
A +
B +
B -
IN4 / B -
C3 / B +
option
+
-
max. 100 m
Venturi-Air Duct Kit 781443
with detector base 805590 (standard)
detector base 805590 (standard)
Venturi-Air Duct Kit 781443
with detector base 805591 (relay)

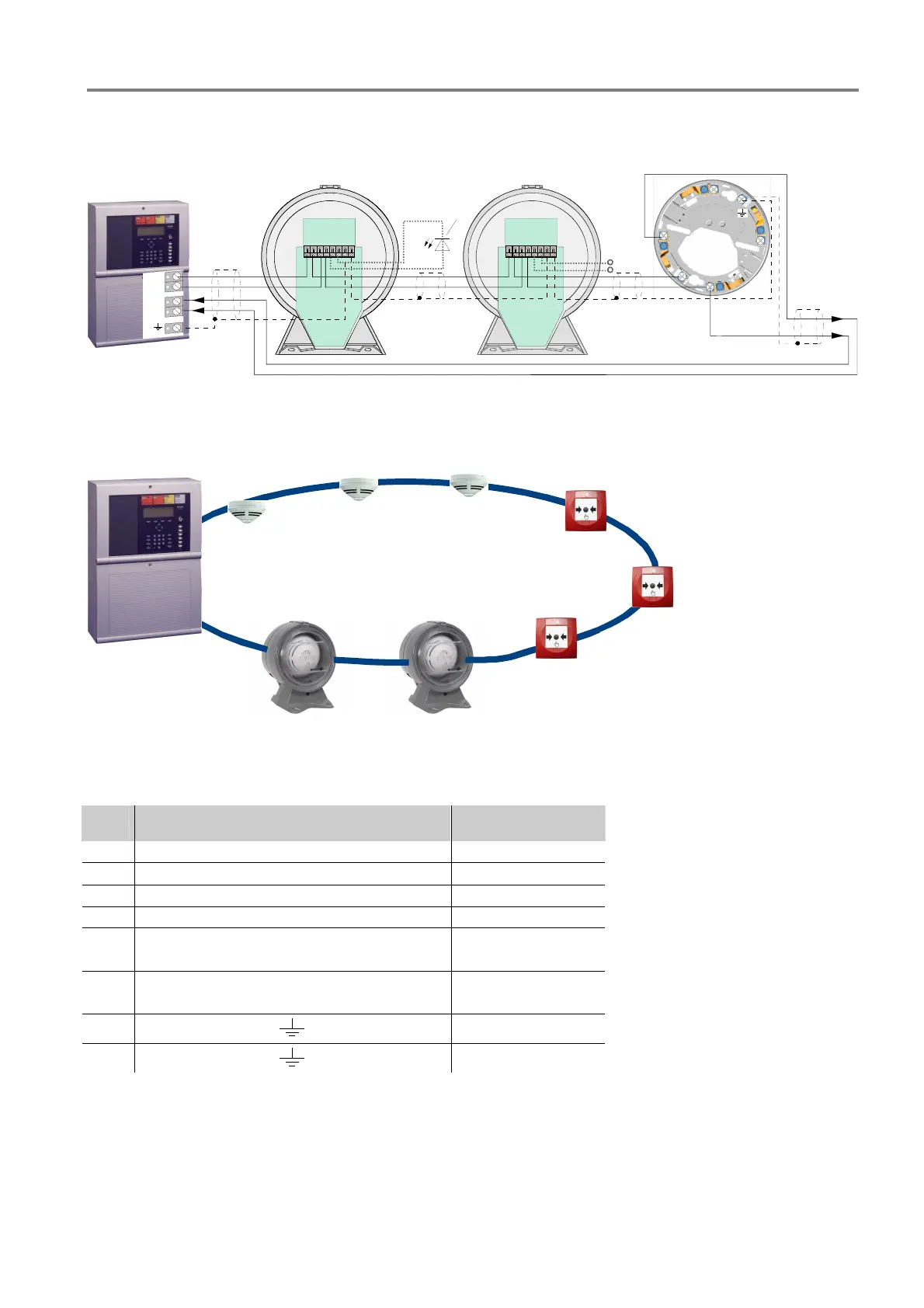

Fig. 29: Wiring example
esserbus
®
esserbus
®
-PLus
Fig. 30: Loop wiring (loop schematic)
Terminal assignment:
No. Terminal Cable Colour
1 -ULin blue
2 -ULout black
3 +ULin red
4 +ULout pink
5
Ext. plus
(for external relay or remote indicator)
yellow
6
Ext. minus
(for external relay or remote indicator)
green
7
---
8
---
