11.2 Install fire detector
The OT
blue
-LKM (Part No. 802379) must be aligned to the detector base and mounted by turning the detector
clockwise into the base until it engages. It is recommended to use the removal tool (Part No. 805580) to
insert/remove the detector from the base.
The IQ8Quad OT
blue
-LKM is connected and powered via the loop of the Fire Alarm Control Panel.
Alarm and fault messages are transmitted via the loop to the connected Fire Alarm Control Panel and indicated
on the panels display (text and/or 3-digit fault code).
An activated alarm is also local indicated with the flashing red detector LED
. The LED is even visible for the
mounted detectors in the air duct kit through the transparent cover.
EP6
OUT5
IN4
C3
EM2
1
1

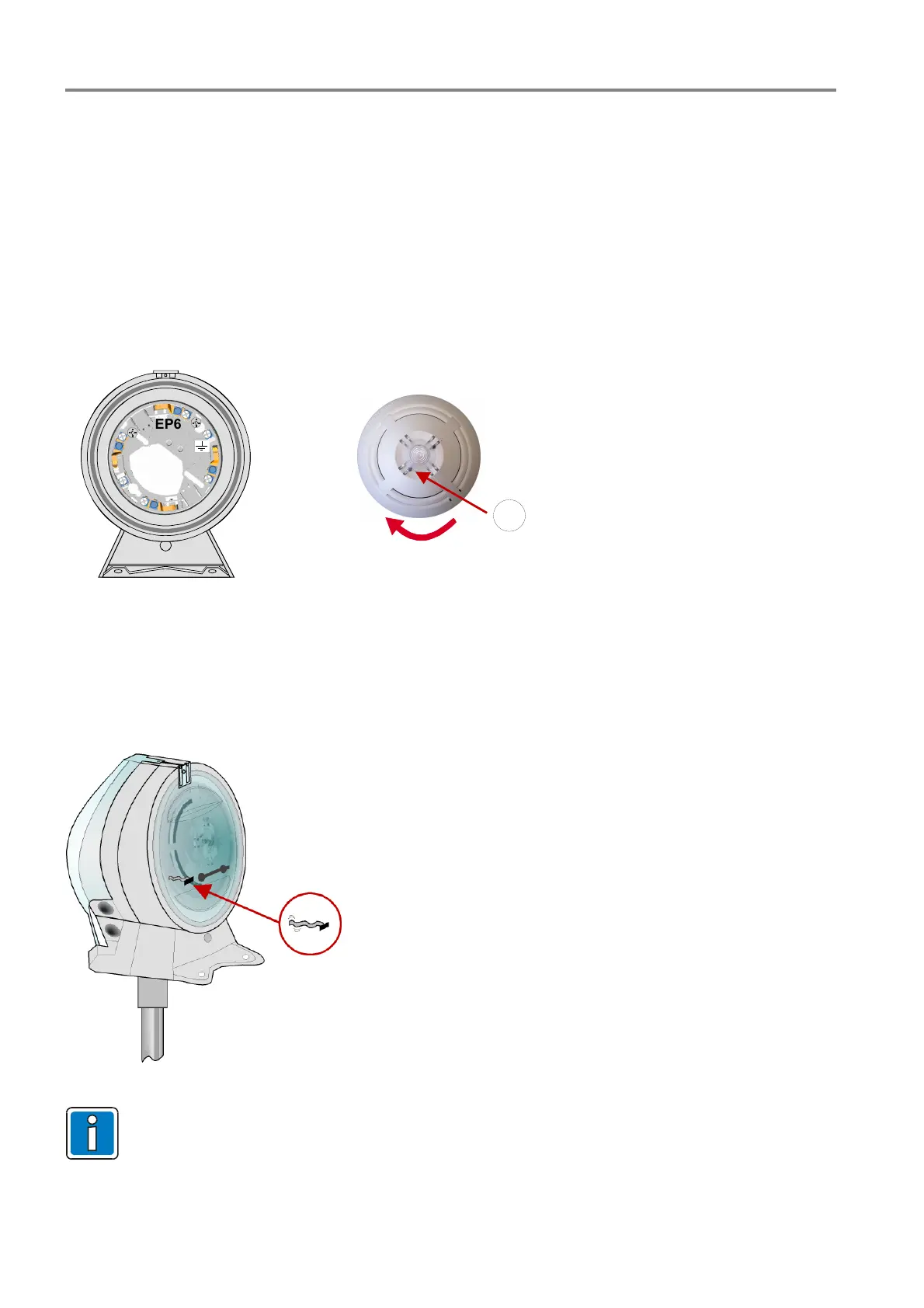

Fig. 24: Insert multisensor detector
• An external remote indicator (e.g. Part No. 801424) may be connected if required.
• It is recommended to use the removal tool (Part No. 805580) to insert/remove the detector from the base.
• Fix flow indicator (supplied Film strip) inside the cover (refer to Fig. 25).
• Replace cover in correct positional arrangement.
Fig. 25: Flow indicator (Film strip)
Please refer to the manuals of the Fire Alarm Control Panel and components for additional
information.
