Mounting/Dismounting Modules Excel 800
EN1B-0375GE51 R0910
20
Dismounting Electronic Modules
Note
Electronic modules can be removed from or inserted into the
sockets without switching off the power supply. The
behavior of connected field devices must be taken into
consideration.
► Open the red locking mechanism by sliding it to the left
and then gently pull the electronic module out of the
terminal socket.

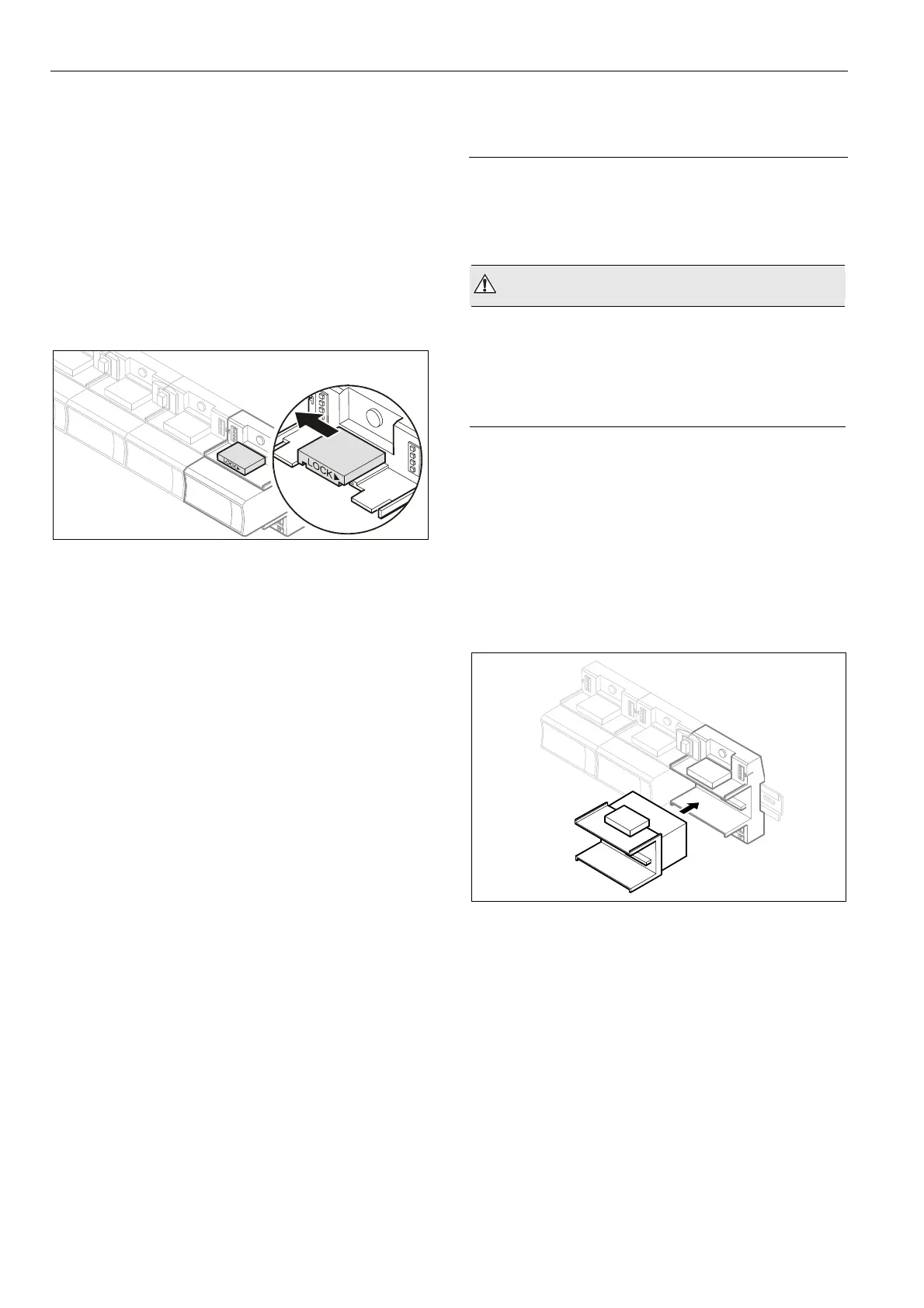

Fig. 23 Dismounting the electronic module
Mounting/Dismounting Manual Disconnect
Modules
XS812 and XS812RO Manual Disconnect Modules are
mounted on the terminal socket appropriate for the
electronic module, see Table 4 on page 6. The electronic
module is mounted onto the manual disconnect module.
WARNING
Risk of electric shock or equipment damage!
The XS812RO Manual Disconnect Module is designed
for 24 V applications only!
► Never use the XS812RO Manual Disconnect Module with
line voltage.
Mounting Manual Disconnect Modules
► Make sure that manual disconnect module, electronic
module, and terminal socket match, see Table 4 on
page 6.
► Make sure that the red locking mechanism is in the open,
i.e., left, position.
► Gently push the manual disconnect module onto the
terminal socket until snug.
► Lock the red locking mechanism by sliding it to the right.
Fig. 24 Mounting the manual disconnect modules
