Description of the I/O Modules Excel 800
EN1B-0375GE51 R0910
52
Relay Output Modules
Types of Relay Output Modules, Terminal Socket
Type Description Housing
XF824 Panel Bus relay output module Light-gray
XFR824
Panel Bus relay output module
with manual overrides
Light-gray
XFL824
L
ONWORKS Bus relay output
module
Dark-gray
XFLR824
L
ONWORKS Bus relay output
module with manual overrides
Dark-gray
XS824-25
XSU824-25
Terminal socket; can be fitted
with long (red) cross connector
(incl. in scope of the delivery)
Light-gray
Table 53 Excel 800 Relay Output Modules
Features
6 relays (changeover contacts), arranged in two blocks
…R824: 6 manual overrides
Low and line voltage allowed, see WARNING.

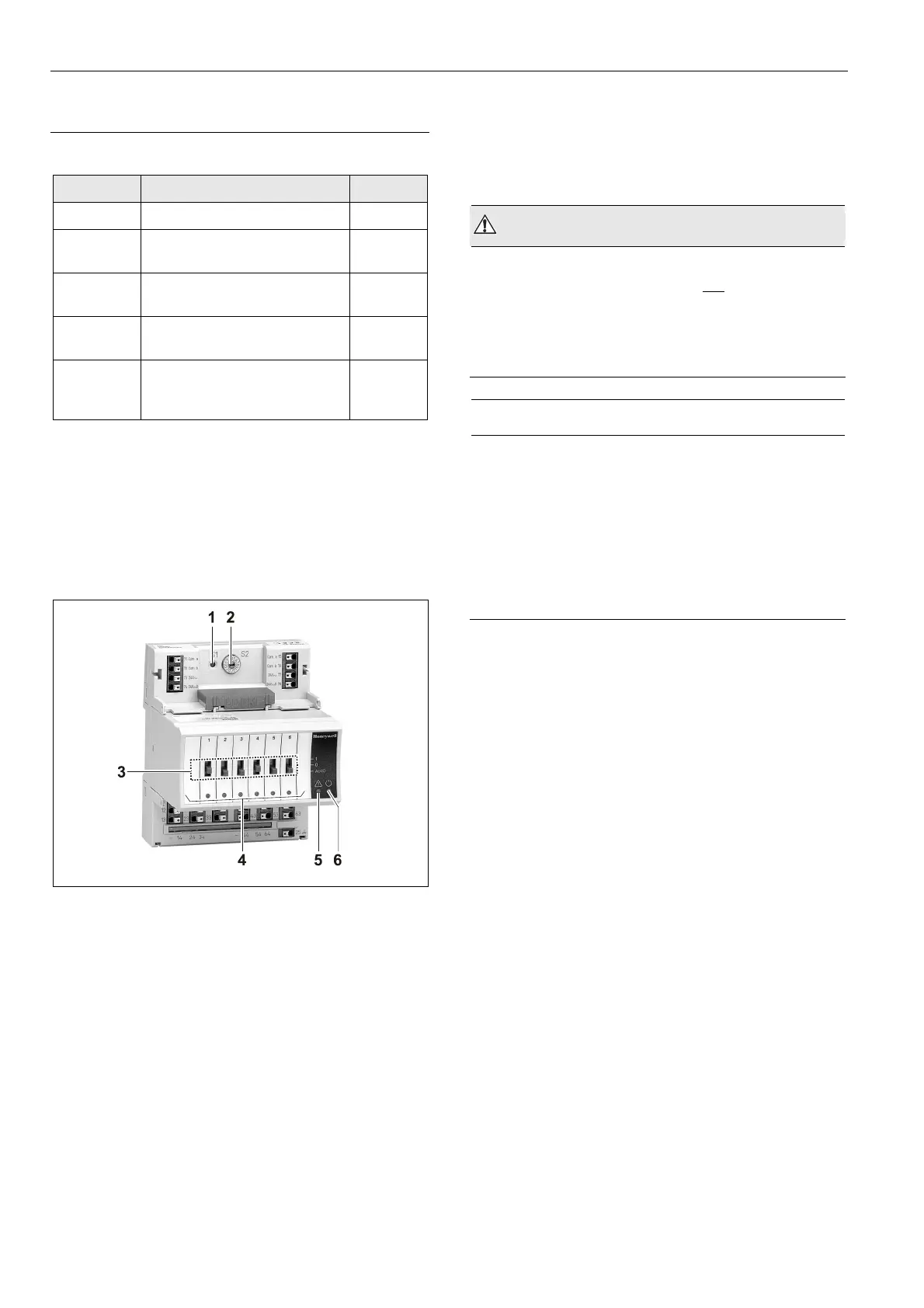

Fig. 76 XF824 Relay Output Module with terminal socket
Legend
1 Service button S1
2 Hex switch S2
3 Manual overrides
4 Status LEDs
5 Service LED
6 Power LED
Functionality of service LED and power LED: see Table 77
to Table 79 on page 77 and following.
In the event of communication problems, the relay outputs
will move to the safety positions you have configured in
CARE, see relay output point description in the CARE –
User Guide, EN2B-0182GE51 / 74-5587.
WARNING
Risk of electric shock or equipment damage!
Low voltage and line voltage must not
be wired within
the same relay block.
► Wire low voltage e.g., to relay block 1 and line voltage to
relay block 2 or vice versa. In this case, the short cross
connectors must be used, see Table 5 on page 7.
NOTICE
Risk of malfunction!
Cross connectors may only be used if the same voltage
is used on all relays they connect.
► Do not use a cross connector if different voltages are
used on the relays.
E.g., use a short cross connector for relay block 1 with
line voltage and no cross connector for relay block 2 with
12 V low voltage for relay 4 and 24 V low voltage for
relays 5 and 6.
