Excel 800 Description of the XCL8010 Controller Module
33 EN1B-0375GE51 R0910
Description of the XCL8010 Controller Module
Overview
C-Bus
I/O modules
LonWorks Bus
L
ON W ORKS Bus
Excelon
Modem
XL500
XL12
L ON W ORKS /
Panel Bus
PC or HMI

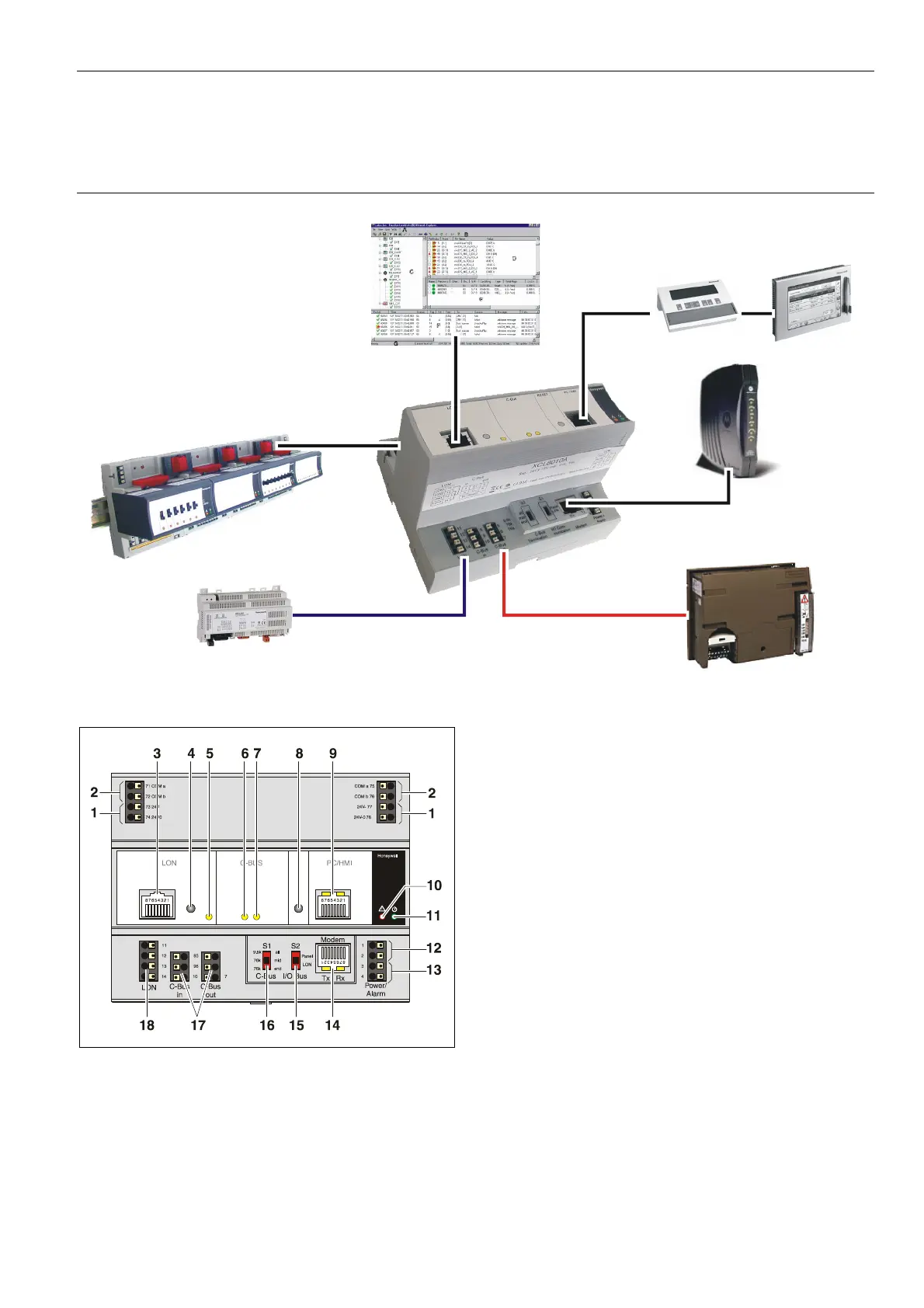

Fig. 47 Connections to the XCL8010 Controller
Fig. 48 XCL8010 Controller Module front details
Legend
1 Power supply for I/O modules
2 I/O Bus communication terminals
3 L
ONWORKS interface
4 L
ONWORKS service button
5 L
ONWORKS service LED
6 C-Bus Tx LED
7 C-Bus Rx LED
8 Reset button
9 HMI interface and LEDs
10 Alarm LED
11 Power LED
12 Power supply terminals
13 Alarm/watchdog outputs
14 Modem interface and LEDs
15 S2 I/O Bus switch
16 S1 C-Bus termination switch
17 C-Bus terminals
18 L
ONWORKS terminals
