I/O Modules
Pluggable I/O Modules
There are 2 variants of pluggable I/O modules:
 Panel Bus I/O modules with communication via Panel
Bus (light-gray housings). Panel Bus I/O modules are
automatically commissioned (with firmware download) by
the XCL8010 Controller.
 L
ONWORKS Bus I/O modules (dark-gray housings) with
communication via L
ONWORKS (FTT10-A, link power
compatible) for easy integration and use with 3
rd
-party
controllers.
Mixed I/O Modules
Besides the pluggable Panel Bus I/O modules (consisting of
a terminal socket and a removable electronic module), there
are also mixed Panel Bus I/O modules. Specifically: the
XF830A and XFU830A are mixed Panel Bus I/O modules,
featuring an integrated terminal socket and a variety of
inputs and outputs.
Mixed Panel Bus I/O modules have a light-gray housing and
are likewise automatically commissioned (with firmware
download) by the XCL8010 Controller.
Terminal Sockets
Pluggable I/O modules must be mounted on the appropriate
terminal sockets. Pluggable Panel Bus I/O modules and
pluggable L
ONWORKS Bus I/O modules use the same
terminal sockets. These terminal sockets are available with
push-in terminals (XS82…) or with screw-type terminals
(XSU82…).
Mixed I/O modules feature an integrated terminal socket.
Color Coding
To distinguish modules and components, the following color
coding is used:
Color Part
Red All of the user-accessible adjustable
mechanical parts (i.e., bridge connectors
and locking mechanism) and operating
controls (manual overrides, etc.)
Light-gray
Panel Bus I/O modules
Dark-gray
L
ONWORKS Bus I/O modules
Table 2 Color coding of Excel 800 Modules
PANEL
BUS MODULES
LonWorks
BUS MODULES
pluggable
ANALOG OUTPUT
pluggable
ANALOG INPUT
pluggable
BINARY INPUT
pluggable
FLOATING
OUTPUT
MIXED I/Os
XF821A
XS821-22
XSU821-22
XCL8010A
CONTROLLER MODULE
X
S823
X
SU823
X
S824-25
X
SU824-25
XFL821A
XFR822A
XFLR822A
XFL822A XFL823A
XF822A XF823A
pluggable
RELAY OUTPUT
X
FR824A
XFLR824A
X
FL824A
X
FR825A
X
F824A
LonWorks or Panel Bus
XF830A, XFU830A
PANEL BUS I/O MODULES

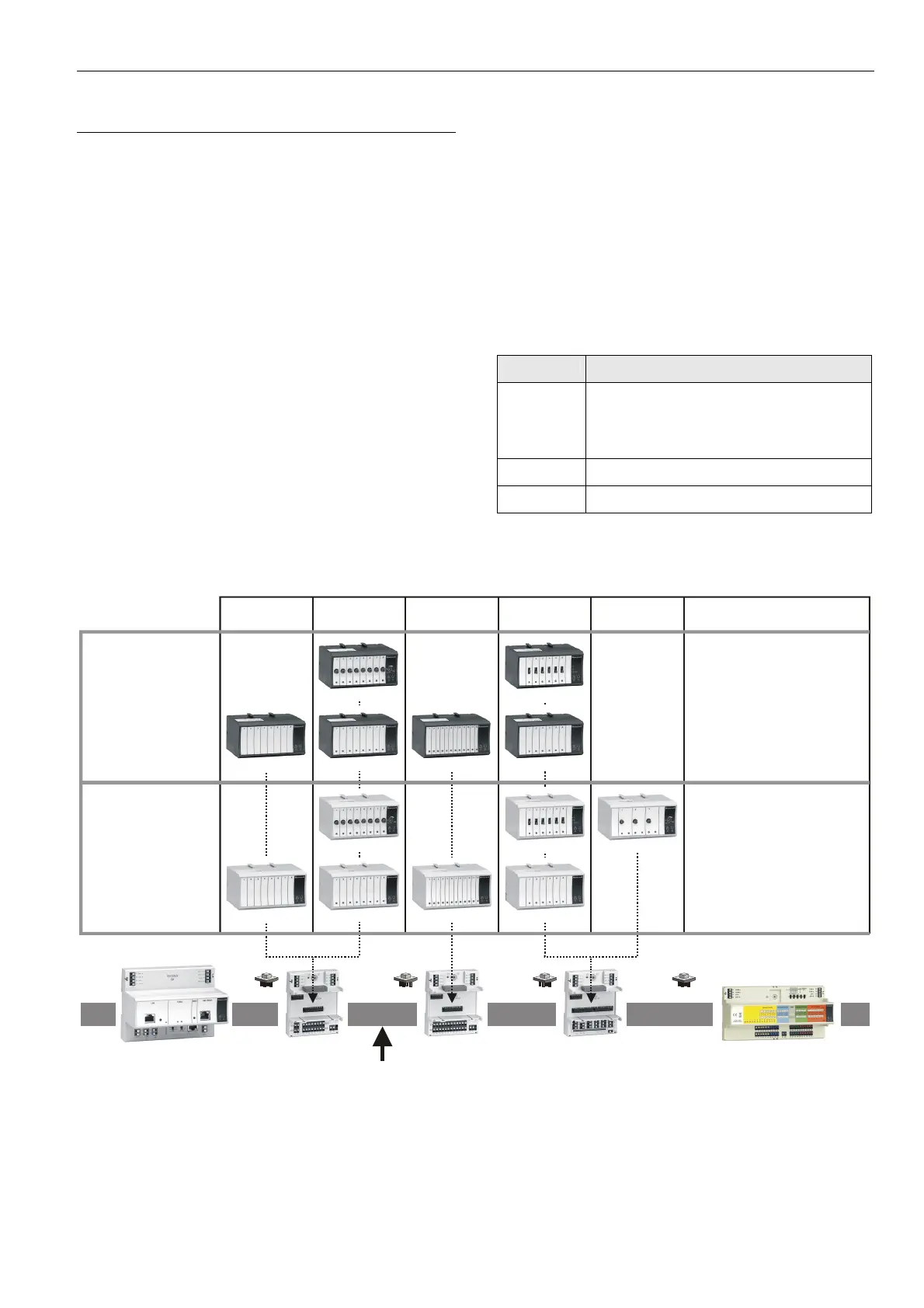

Fig. 3 Overview of I/O modules
