LonWorks Bus I/O Modules in Separate Rooms
In this scenario, only communication lines must be
connected between the rooms.
► Connect the last module of room 1 to the first module of
room 2:
– via communication terminals 71, 72 or 75, 76
LonWorks
I/O
LonWorks
I/O
LonWorks
I/O
75
75
71
76
7672
77
7773
78
78
74
CPU
1 2

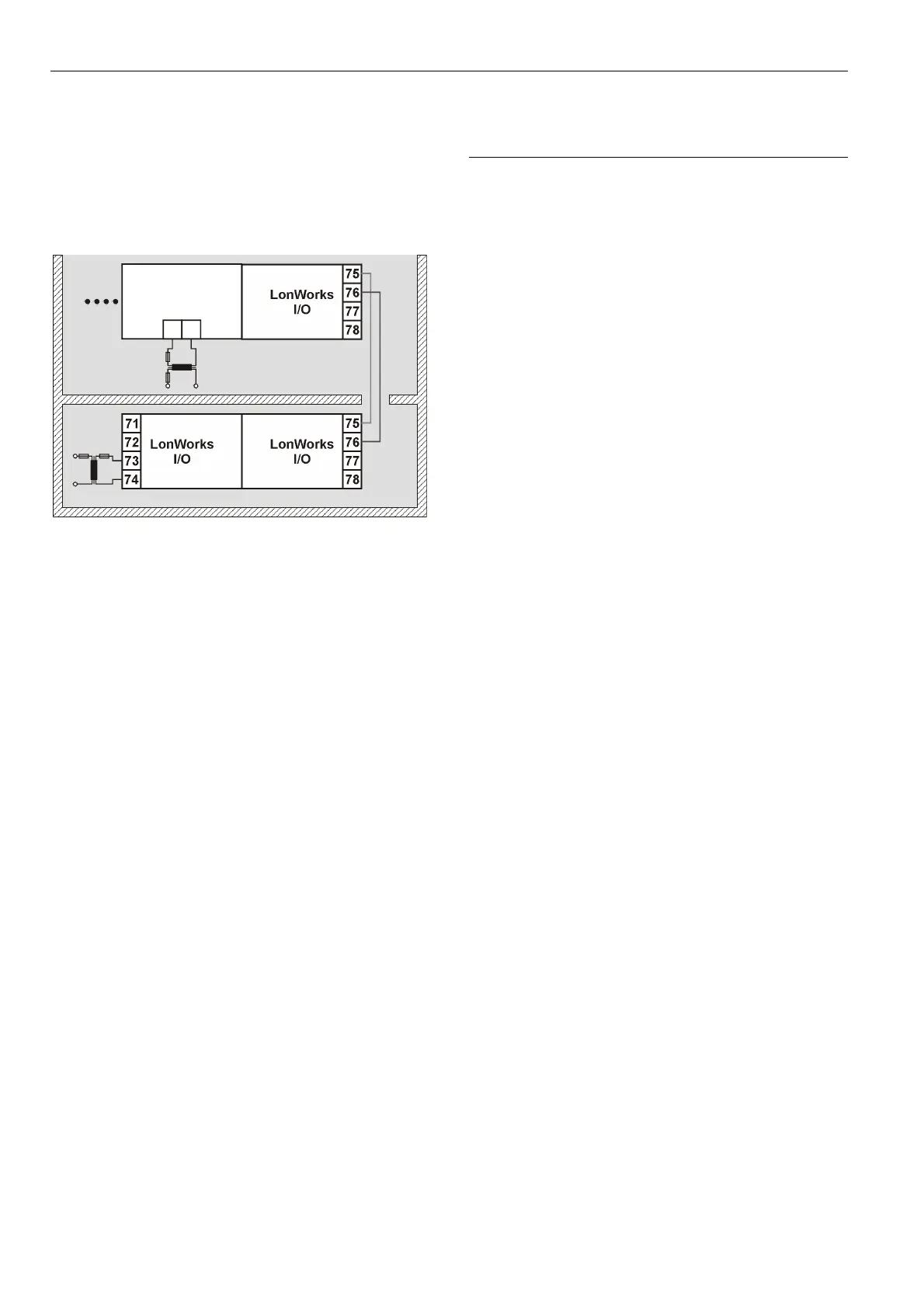

Fig. 35 Wiring the LONWORKS Bus I/O modules in
separate rooms
Maximum Cable Length
For maximum cable lengths and cable specifications of the
communication lines, see Table 18 and Table 19 on
page 13.
Connecting Panel Bus and LONWORKS Bus
Mixed Controller Systems
Connecting I/O Modules with Each Other
For connecting the I/O modules with each other, proceed as
described for single bus controller systems on page 24.
Connecting I/O Modules to the Controller
Panel Bus I/O Modules
► Connect communication terminals 71 …74 or 75… 78 of
Panel Bus I/O modules to communication terminals
71 …74 or 75… 78 of the controller module using either
– Bridge connectors
for flush mounting on a single DIN rail or
– Cables
for separate mounting,
e.g., on multiple rails, separate cabinets, etc.
L
ONWORKS Bus I/O Modules
► Connect communication terminals 71 … 74 or 75 … 78 of
L
ONWORKS Bus I/O modules to LONWORKS terminals
11 … 14 of the controller module using cables. See also
section “LONWORKS Bus Termination” on page 31 and the
section on “L
ONWORKS Wiring” in the separate document
L
ONWORKS Mechanisms (Product Literature no.: EN0B-
0270GE51).
