Excel 800 Description of the I/O Modules
51 EN1B-0375GE51 R0910
Connection Example

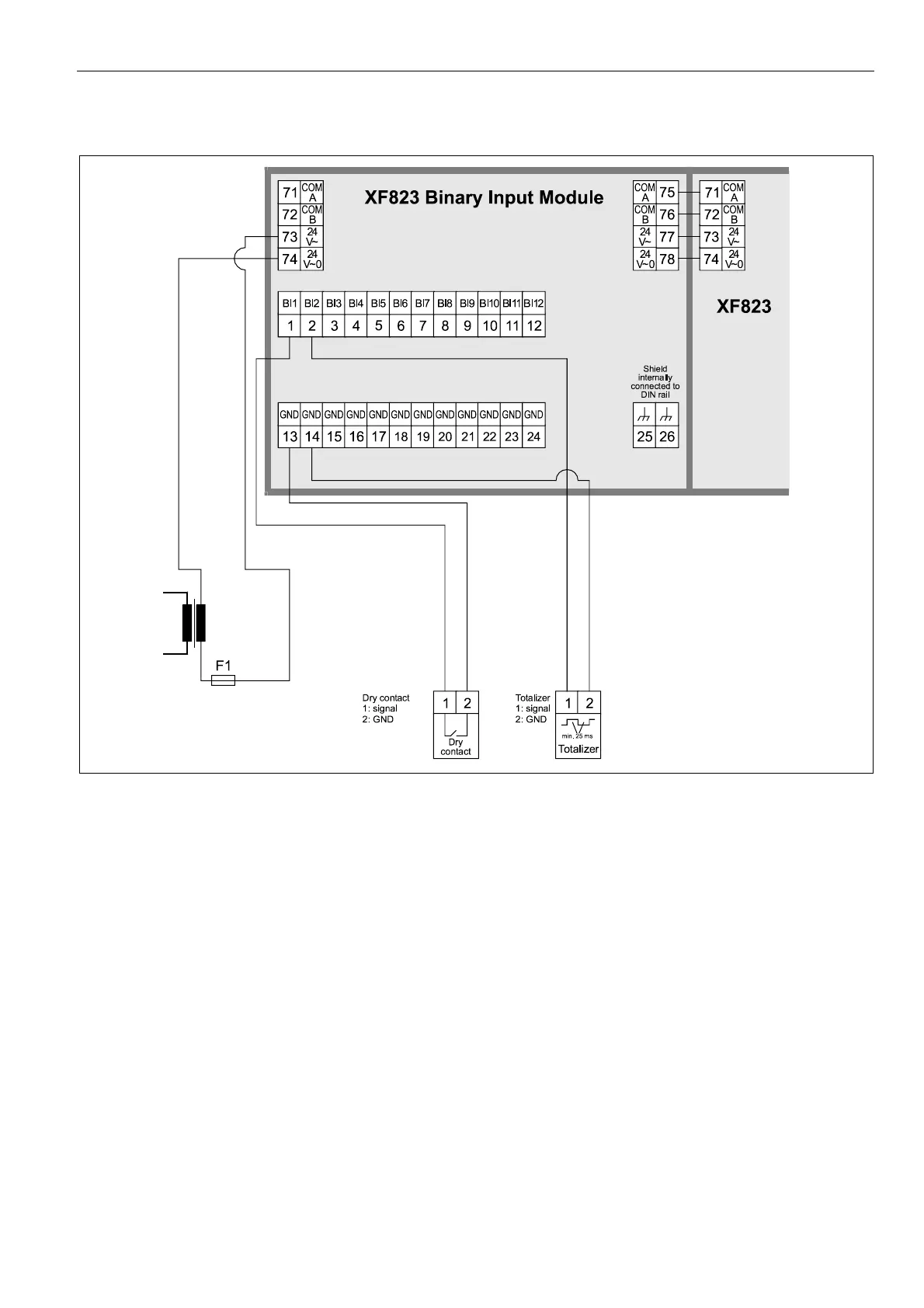

Fig. 75 XF823 connection examples
For fusing specifications, see section "Fusing Specifications" on page 10.
