Description of the I/O Modules Excel 800
EN1B-0375GE51 R0910
42
Connection Examples
Active Sensor and Potentiometer

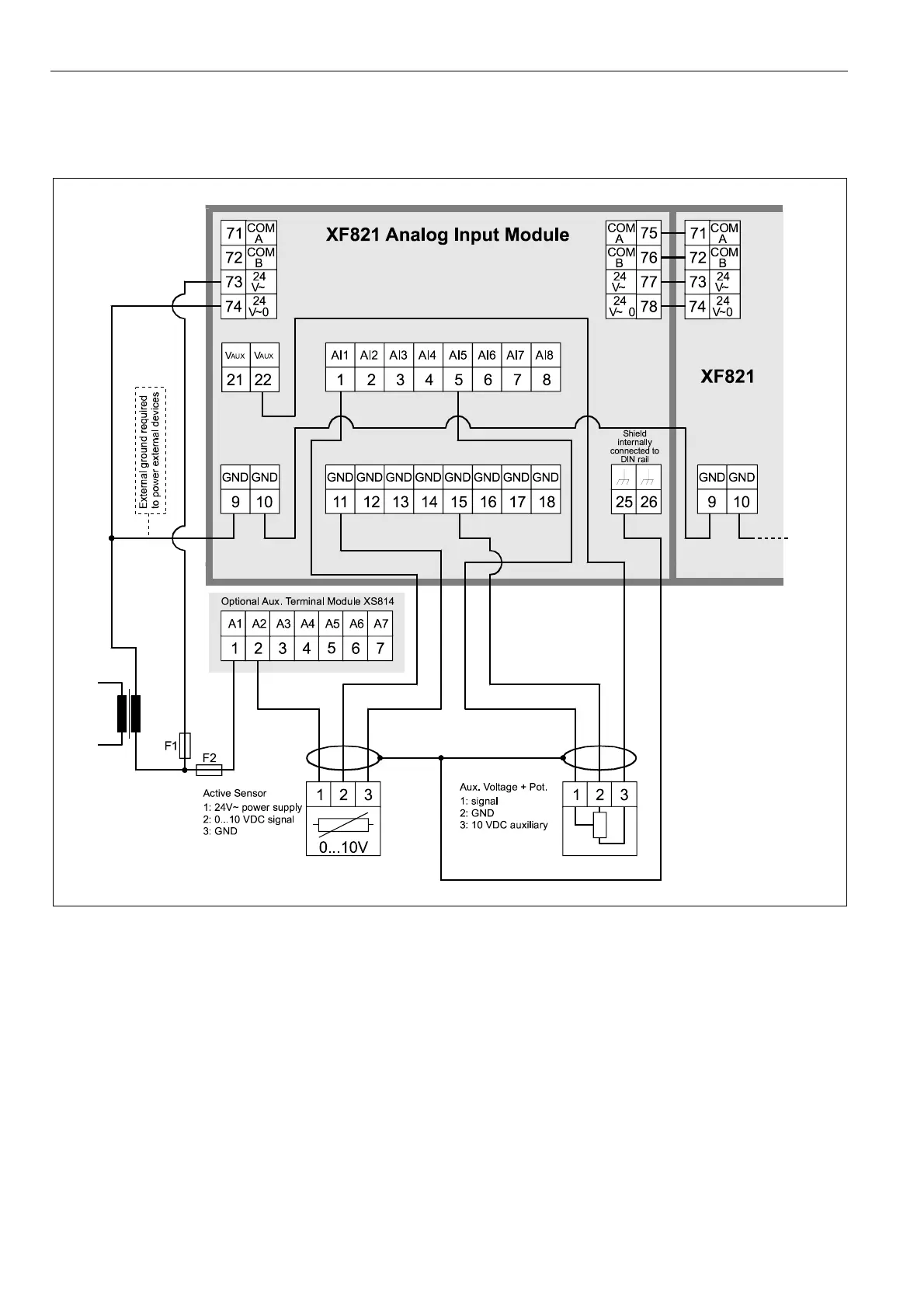

Fig. 64 Analog input module, wiring example 1
For fusing specifications see section "Fusing Specifications" on page 10.
