Excel 800 System Overview
7 EN1B-0375GE51 R0910

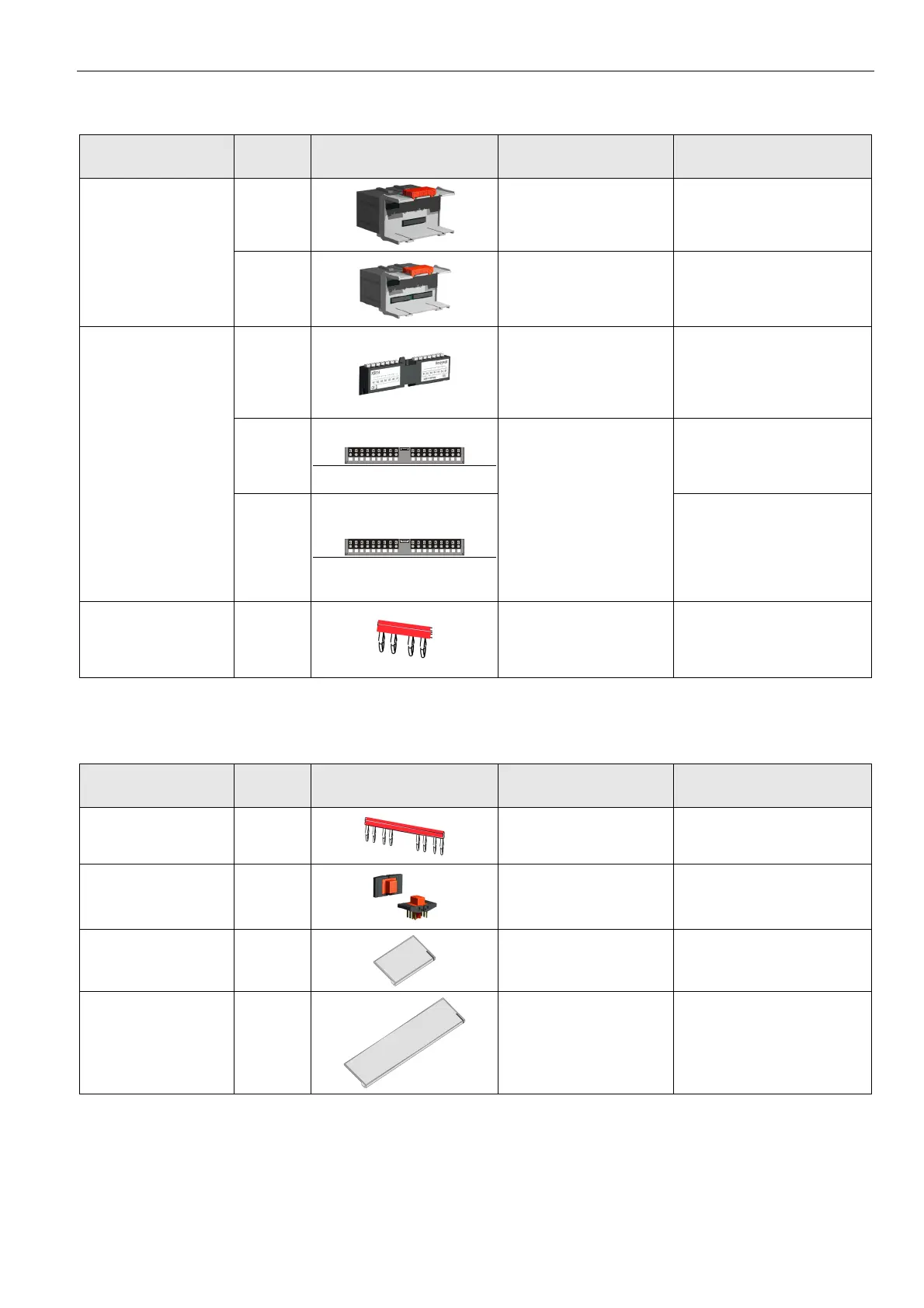

Auxiliary Parts
Module Type Figure
Corresponding
I/O modules XF…
Information
XS812
…821
…822
…823
Module allows disconnection
of individual I/O signals.
Manual disconnect
modules
XS812RO
…824
…825
Module allows disconnection
of individual I/O signal. For
24 V applications, only.
XS814
For all pluggable Excel
800 I/O modules.
Two groups of seven
internally-connected push-in
terminals, for distributing
signals/power (see also Fig.
95).
XS830
A1 A2 A3 A4 A5 A6 A7 A8 A9 B1 B2 B3 B4 B5 B6 B7 B8 B9
Two groups of nine internally-
connected push-in terminals,
for distributing signals/power
(see also Fig. 97).
Auxiliary terminal
packages
XS831
A1 B1 A2 B2 A3 B3 A4 B4 G1 G2A5 B5 A6 B6 A7 B7 A8 B8
XF830A and XFU830A,
only.
Two groups of four pairs of
push-in terminals, for con-
verting 0…20 mA signals into
0…10 Vdc signals, and one
push-in ground terminal per
group (see also Fig. 99).
Cross connectors,
short (yellow)
XS817
…824
…825
Connects three relay
commons, required in case of
line voltage and low voltage in
the same I/O module.
Table 5 Auxiliary parts
Spare Parts
Module Type Figure
Corresponding
I/O modules XF…
Information
Cross connectors, long
(red)
XS815
…824
…825
Connects six relay commons.
Connector bridge XS816
All Excel 800 I/O modules
Connects XCL8010 and I/O
modules.
Swivel label holder XAL10
For all pluggable Excel
800 I/O modules
Can be plugged into socket,
for attaching label generated
by CARE.
Swivel label holder XAL11
XF830A and XFU830A,
only
Can be plugged into module,
for attaching label generated
by CARE.
Table 6 Spare parts
