H-SERIES GREEN CLASS NET METER
7 62-0424-02
2.2 Display Board
The display board connects to the main power board via a flex ribbon cable and the
board mounts on the inside of the housing door.
No additional connections to the display board are required. The display board’s LCD
readout indicates the metered values as well as errors associated with the Green
Class Net meter, such as phase loss or sensor error conditions.

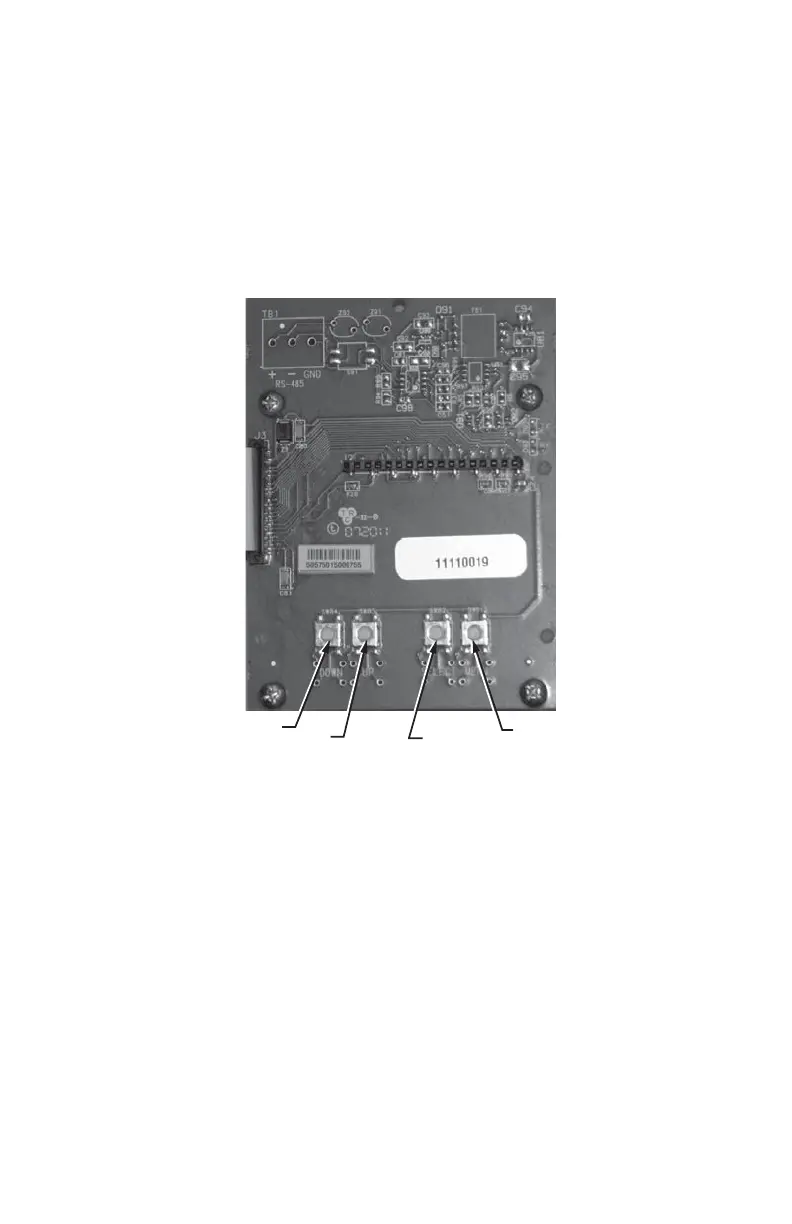

Fig. 3. Display Board.
M33279
DOWN
UP
SELECT
MENU
To Next Page
