Embedded NVR Bundle IP Cameras User Guide

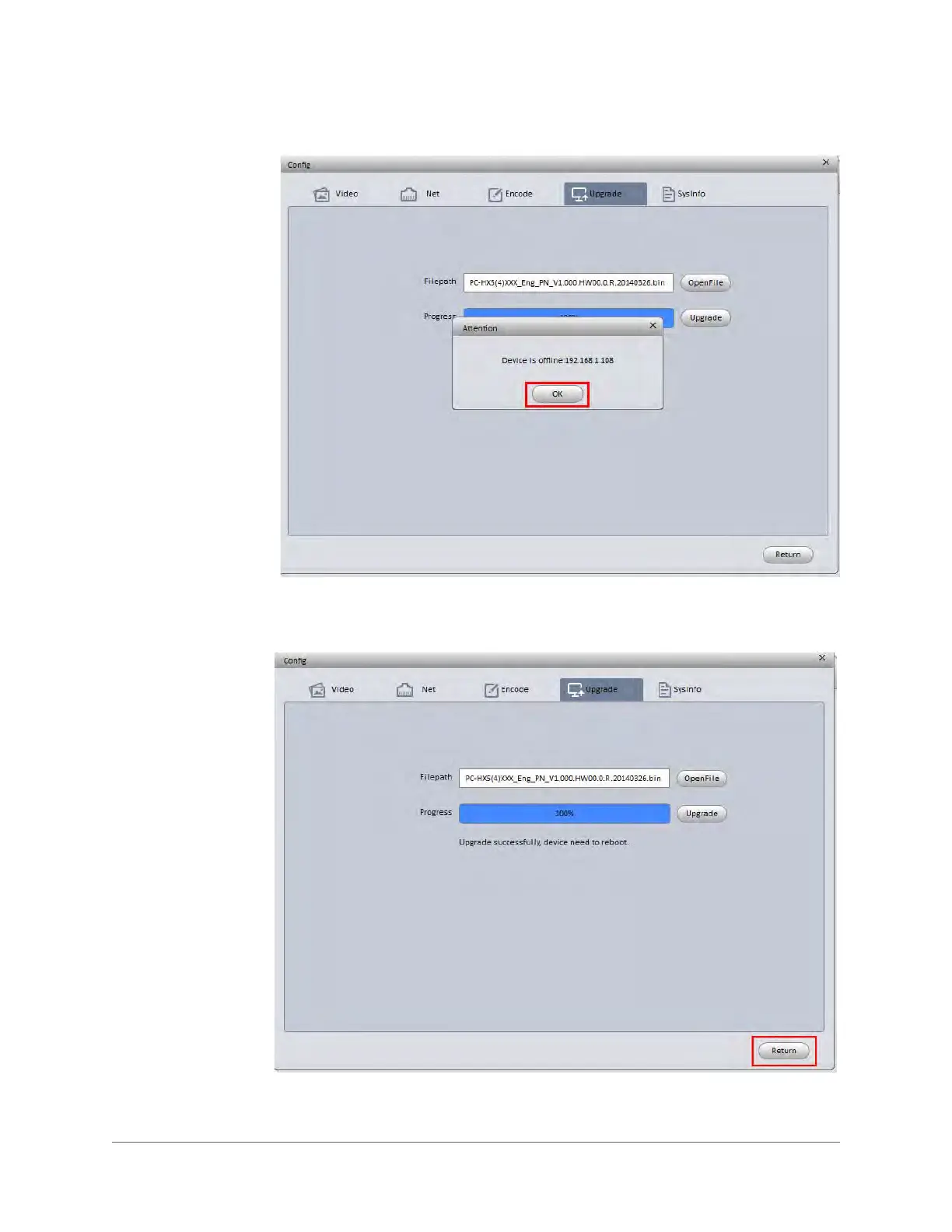

Figure 2-8
Device
Offline Message
6.
Click
OK
to clos
e the
Device
Offline
warning message, and to return to the
Upg
rade
interface.
Figure 2-9
Upgrade In
terface
7.
Log into the device again.
31
33
