Configuration | 33
800-18161
-
A
-
06
/2014
Note
If you do not select a device before clicking
Login
, you will get a
Connection
Error
.
Upgrading the IP Cameras (Batch Upgrade)
1.
Open the
ConfigTool
software if it is not already open.

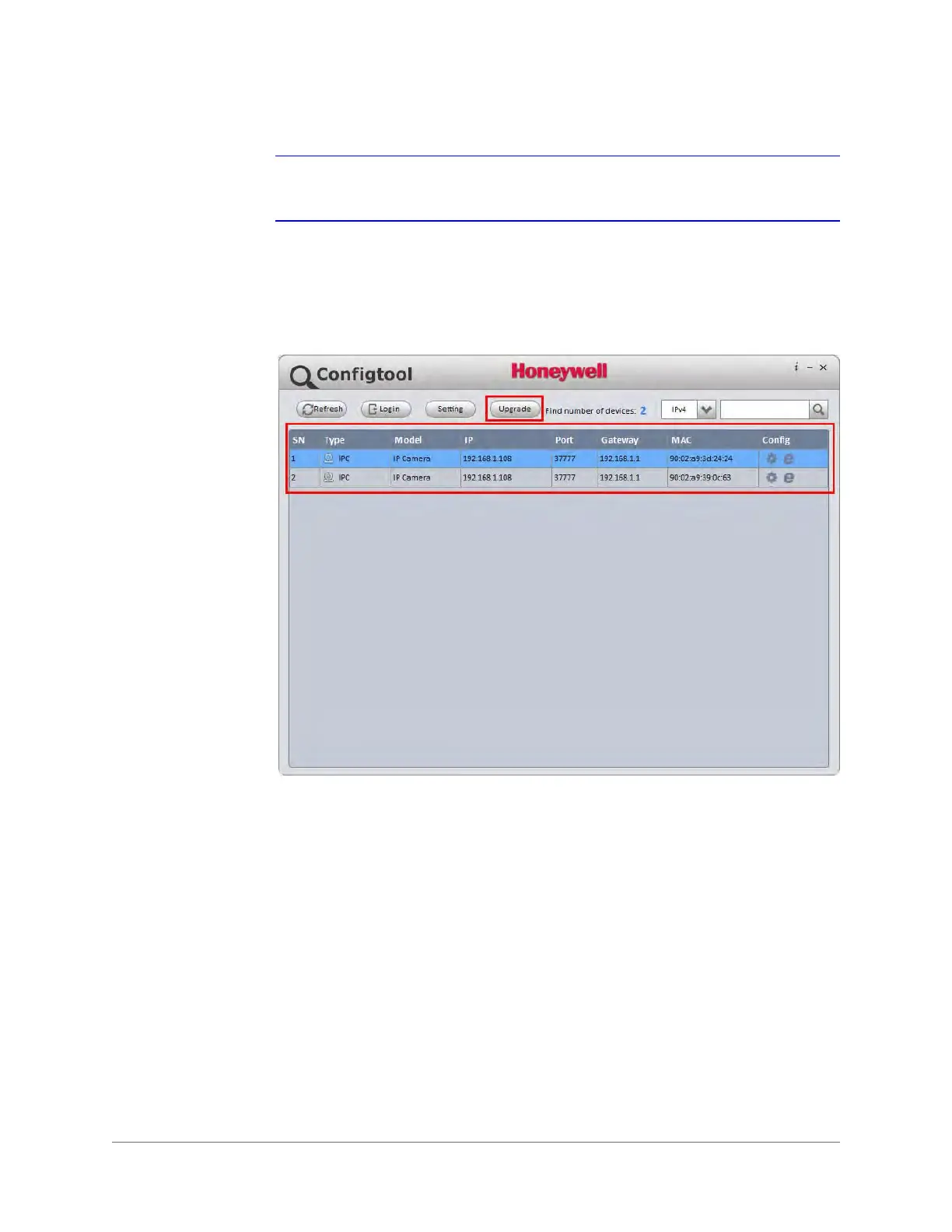

Figure 2-10
ConfigTool Login
2.
Click
Upgrade
to begin the batch upgrading process.
The
Upgrade
interface appears.
