Configuration | 37
800-18161
-
A
-
06
/2014
2.
Select from the list the device you want to modify.
3.
Click
Login
to log in to the device.

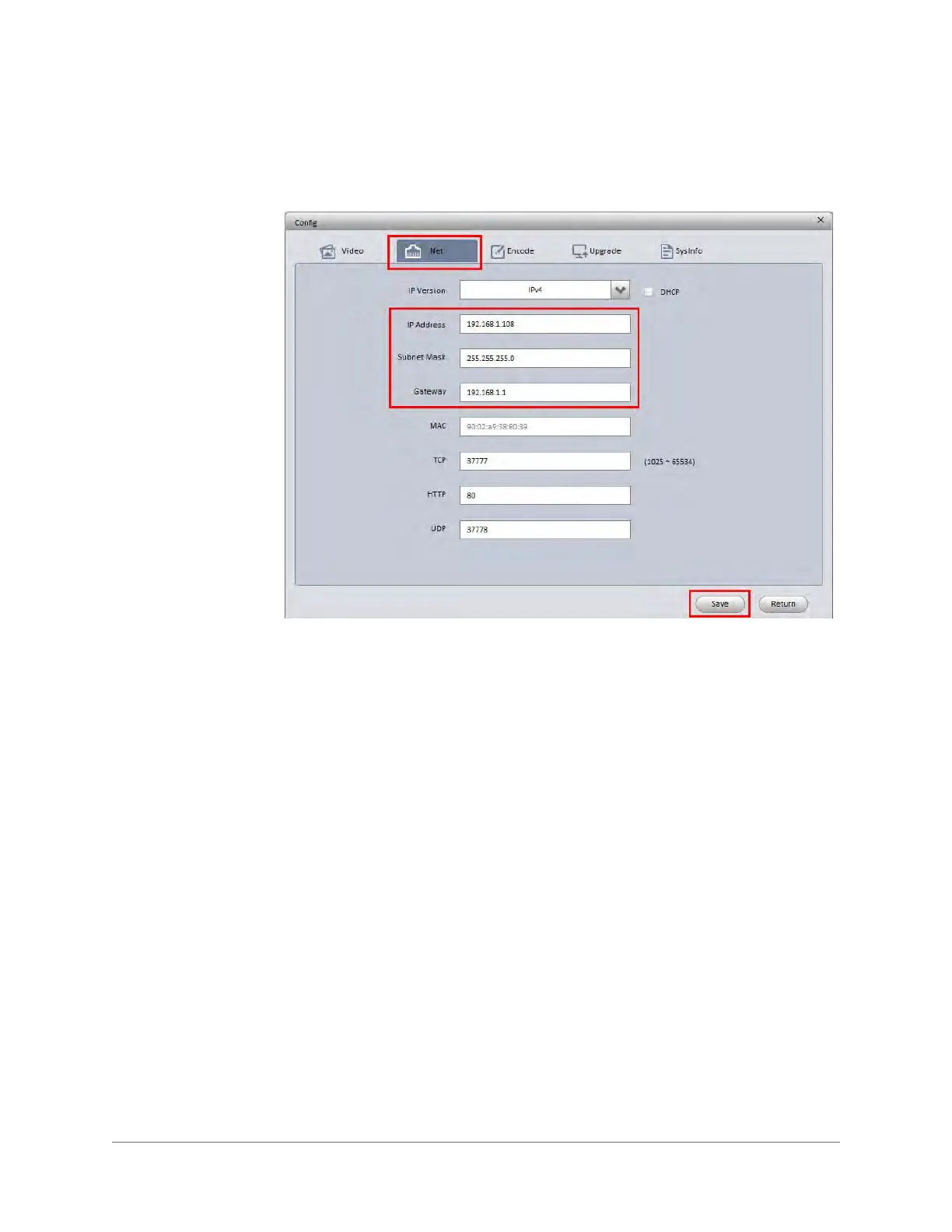

Figure 2-17
Selecting Net in the ConfigTool
4.
Click
Net
to open the Net tab.
5.
Enter the new
IP Address
, and the corresponding
Subnet Mask
and
Gateway
.
6.
Click
Save
to save these new settings.
